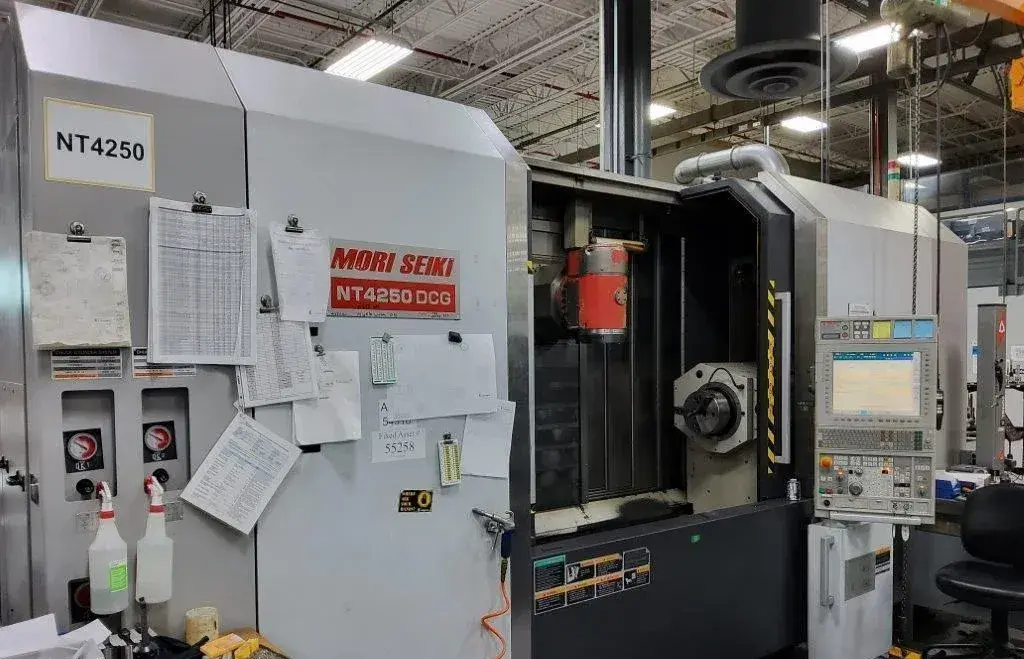

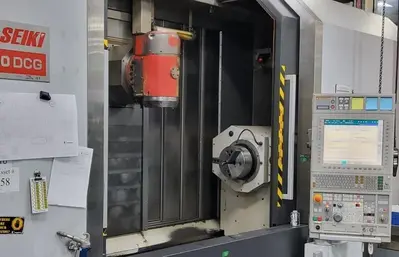

2009 Mori Seiki NT4250DCG/1500SZ 9-Axis CNC Lathe
Have one to sell?
ConditionUsed
1 available
This 2009 Mori Seiki NT4250DCG/1500SZ 9-axis CNC lathe combines a 12,000 RPM KM-63 milling spindle on a B-axis head with a Y-axis, a 4,000 RPM sub spindle, and a 12-station lower turret. It offers 28.7" of swing, a 25.9" max turning diameter, 64.9" of Z travel, and 3.1" bar capacity, with a 30 HP main spindle and a 40-station ATC.
Turning Diameter Lower Turret: 13.7"
Center Distance: 61.4"
X-Axis Travel: 29.5"
X2-Axis Travel: 7.7"
Y-Axis Travel: 8.3"
Z-Axis Travel: 64.9"
Z2-Axis Travel: 60"
B-Axis Indexing: +/- 120°, 1° Increments
C1/C2-Axis Index: 0.0001°
Spindle Nose: A2-8
Milling Spindle Taper: KM-63

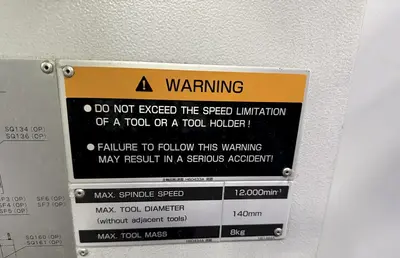

Milling Spindle Speed: 12,000 RPM
Milling Spindle Motor: 25 HP
Sub Spindle Bar Capacity: 3.1"
Sub Spindle Nose: A2-8
Sub Spindle Speed: 4,000 RPM
Sub Spindle Motor: 30 HP
Lower Turret: 12 Stations
ATC Capacity: 40 Stations
Approximate Weight: 56,500 lbs

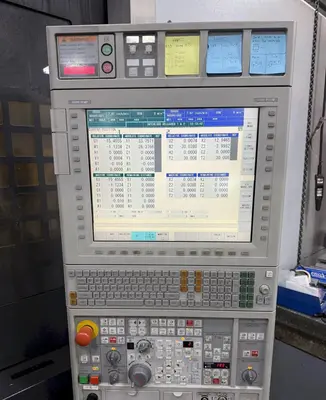

Mitsubishi MSX-711IV CNC Control
MAPPS Conversational Programming

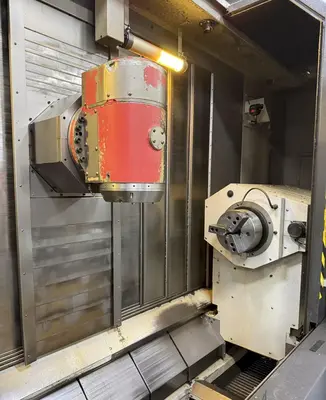

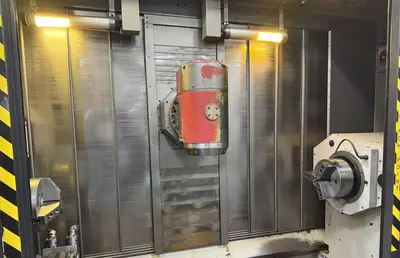

Milling Spindle (Live Tooling)
Y-Axis
Sub Spindle

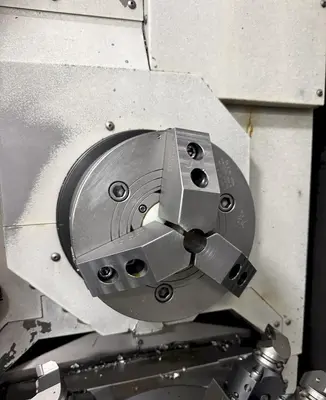

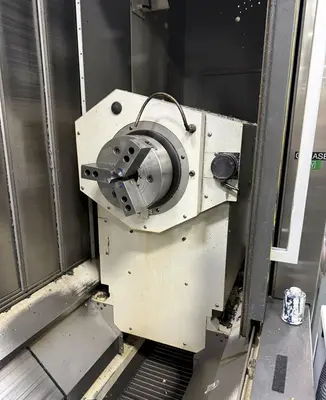

10" Chuck on Sub Spindle

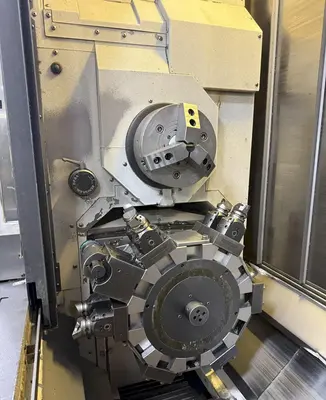

Lower Turret
Renishaw Probing
Tool Presetter
High Pressure Coolant Through Spindle

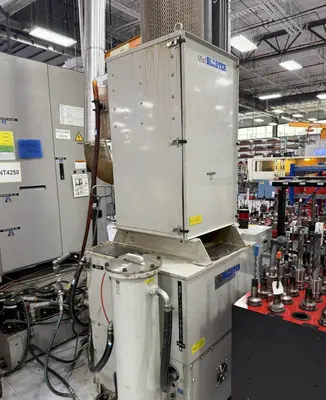

Chip Blaster Unit
Chip Conveyor
Coolant Tank and Pump

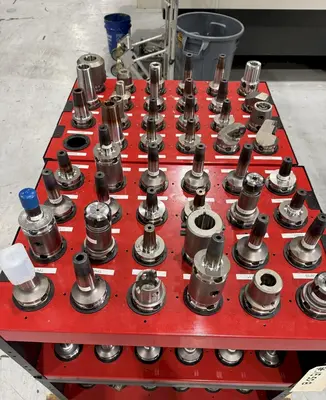

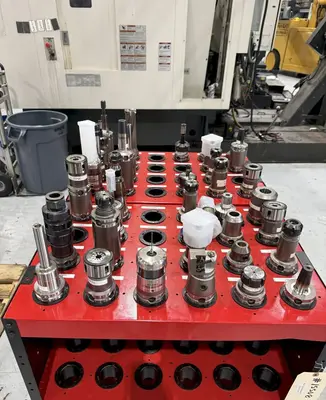

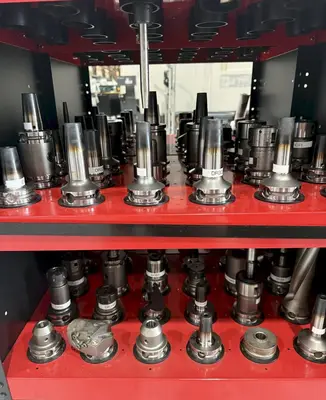

More Than 200 Tool Holders
This 2009 Mori Seiki NT4250DCG/1500SZ 9-axis CNC lathe combines a 12,000 RPM KM-63 milling spindle on a B-axis head with a Y-axis, a 4,000 RPM sub spindle, and a 12-station lower turret. It offers 28.7" of swing, a 25.9" max turning diameter, 64.9" of Z travel, and 3.1" bar capacity, with a 30 HP main spindle and a 40-station ATC.
Imperial
| # Axis | 9 |
| Swing | 28.7" |
| Machining Length | 40.43" |
| Chuck Size | 10" |
| Bar Capacity | 3.1" |
| Power | 30 hp |
| Max RPM | 4,000 RPM |
| Turning Dia | 25.9" |
| Tailstock | No |
| Control | CNC (Mitsubishi) |
Turning Diameter Lower Turret: 13.7"
Center Distance: 61.4"
X-Axis Travel: 29.5"
X2-Axis Travel: 7.7"
Y-Axis Travel: 8.3"
Z-Axis Travel: 64.9"
Z2-Axis Travel: 60"
B-Axis Indexing: +/- 120°, 1° Increments
C1/C2-Axis Index: 0.0001°
Spindle Nose: A2-8
Milling Spindle Taper: KM-63
Milling Spindle Speed: 12,000 RPM
Milling Spindle Motor: 25 HP
Sub Spindle Bar Capacity: 3.1"
Sub Spindle Nose: A2-8
Sub Spindle Speed: 4,000 RPM
Sub Spindle Motor: 30 HP
Lower Turret: 12 Stations
ATC Capacity: 40 Stations
Approximate Weight: 56,500 lbs
Mitsubishi MSX-711IV CNC Control
MAPPS Conversational Programming
Milling Spindle (Live Tooling)
Y-Axis
Sub Spindle
10" Chuck on Sub Spindle
Lower Turret
Renishaw Probing
Tool Presetter
High Pressure Coolant Through Spindle
Chip Blaster Unit
Chip Conveyor
Coolant Tank and Pump
More Than 200 Tool Holders
