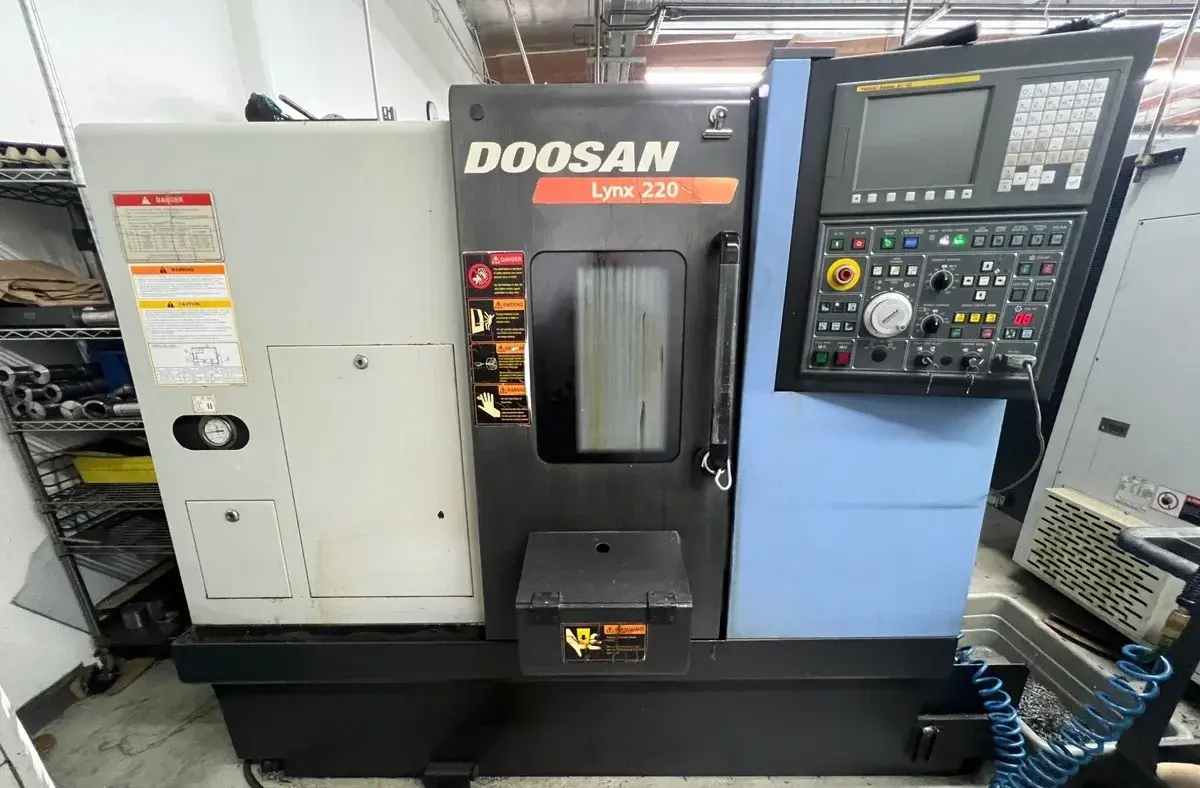

2007 Doosan Lynx 220A CNC Lathe
Have one to sell?
ConditionUsed
1 available
This 2007 Doosan Lynx 220A CNC lathe runs a Fanuc i Series control and a 12-station turret, with 20.1" of swing, a 12.6" max turning diameter, and a 12.7" machining length. Its 20 HP spindle reaches 6,000 RPM through an A2-5 spindle nose, with a hydraulic 3-jaw chuck and 1.8" bar capacity.
X Axis Travel: 6.9"
X Axis Rapid Traverse: 1,181 IPM
Z Axis Rapid Traverse: 1,417 IPM
Spindle Bore: 2.1" to 2.2"
Spindle Nose: A2-5

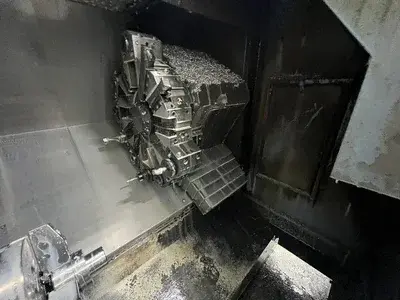

Turret Stations: 12
Turret Index Time: Approximately 0.15 Seconds (Single Step)
Approximate Dimensions: 91" to 101" L x 63" W x 63" to 65" H
Approximate Weight: 6,400 to 7,700 lbs
Electrical Requirements: 220V, 3-Phase, 50/60 Hz, Approximately 23.7 kVA, 62.15 Amps

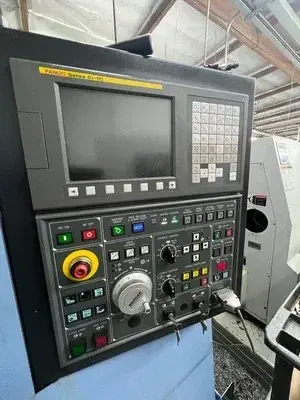

Fanuc i Series Control

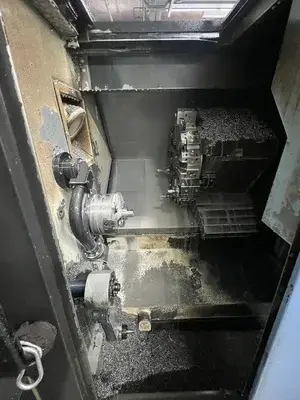

Hydraulic 3-Jaw Chuck
This 2007 Doosan Lynx 220A CNC lathe runs a Fanuc i Series control and a 12-station turret, with 20.1" of swing, a 12.6" max turning diameter, and a 12.7" machining length. Its 20 HP spindle reaches 6,000 RPM through an A2-5 spindle nose, with a hydraulic 3-jaw chuck and 1.8" bar capacity.
Imperial
| Swing | 20.1" |
| Machining Length | 12.7" |
| # Axis | 2 |
| Chuck Size | 6" |
| Bar Capacity | 1.8" |
| Power | 20 hp |
| Max RPM | 6,000 RPM |
| Turning Dia | 12.6" |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
| Control | CNC (Fanuc) |
X Axis Travel: 6.9"
X Axis Rapid Traverse: 1,181 IPM
Z Axis Rapid Traverse: 1,417 IPM
Spindle Bore: 2.1" to 2.2"
Spindle Nose: A2-5
Turret Stations: 12
Turret Index Time: Approximately 0.15 Seconds (Single Step)
Approximate Dimensions: 91" to 101" L x 63" W x 63" to 65" H
Approximate Weight: 6,400 to 7,700 lbs
Electrical Requirements: 220V, 3-Phase, 50/60 Hz, Approximately 23.7 kVA, 62.15 Amps
Fanuc i Series Control
Hydraulic 3-Jaw Chuck
