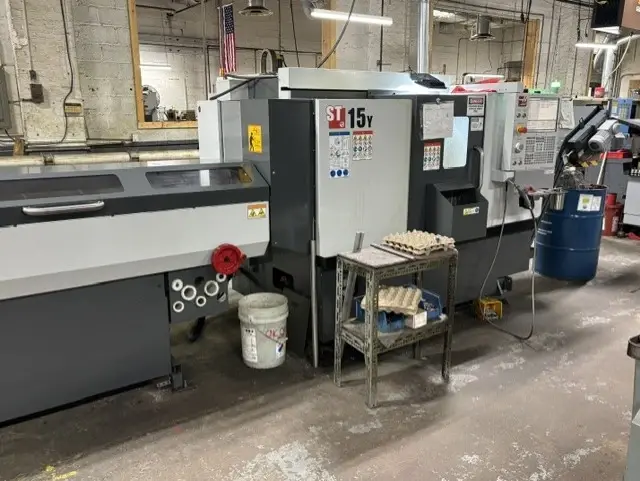

2023 Haas ST-15Y CNC Lathe with Y-Axis and Bar Feeder
Have one to sell?
ConditionUsed
1 available
This 2023 Haas ST-15Y CNC lathe pairs a Y-axis and BMT-45 live tooling with a Haas bar feeder, tailstock, tool setter, and parts catcher. Its 20 HP A2-6 spindle reaches 4,000 RPM through a 3.5" bore with 2.5" bar capacity, and travels run 7.88" in X, ±2.0" in Y, and 16" in Z.
X-Axis Travel: 7.88"
Y-Axis Travel: ±2.0"
Z-Axis Travel: 16"
Rapids (X / Y / Z): 472 / 472 / 1,200 IPM
Max Thrust (X / Y / Z): 2,400 / 2,300 / 3,700 lbf
Spindle Nose: A2-6
Max Spindle Torque: 150 ft-lbf @ 500 RPM
Spindle Bore: 3.5"
C-Axis Max Rating: 5 HP
C-Axis Max Speed: 60 RPM
C-Axis Positioning: ±0.01°
C-Axis Brake Diameter: 13.9"
C-Axis Brake Holding Torque: 250 ft-lbf
Tailstock Taper: MT3
Tailstock Hydraulic Quill Travel: 3.8"
Tailstock Manual Body Positioning: 20"
Tailstock Thrust (Hydraulic Quill): 140-1,130 lbf
Turret Stations: 12
Boring Bar Rear Clearance: 3.8"
Live Tooling Max Speed: 4,000 RPM
Live Tooling Power: 20 HP
Live Tooling Type: BMT45

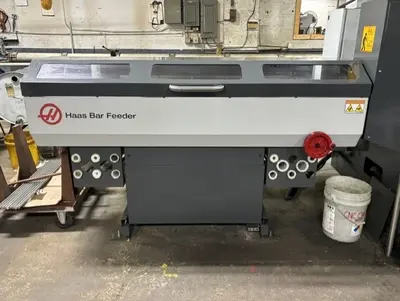

Haas Bar Feeder
Tool Setter

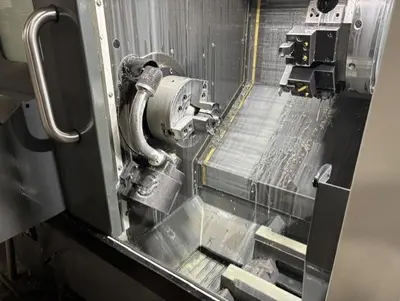

3-Jaw Hydraulic Chuck

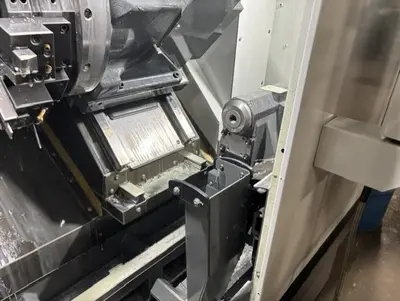

Parts Catcher

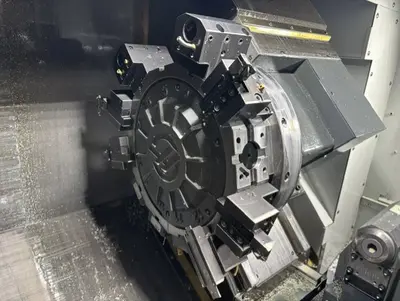

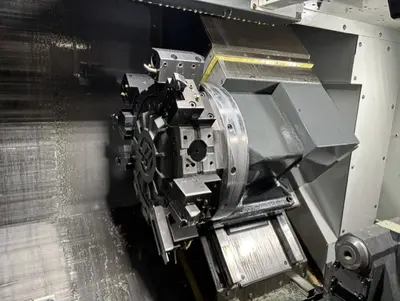

12 Position BMT-45 Turret
Chip Conveyor
(4) Live Tool Holders
All Available Static Tool Holders
This 2023 Haas ST-15Y CNC lathe pairs a Y-axis and BMT-45 live tooling with a Haas bar feeder, tailstock, tool setter, and parts catcher. Its 20 HP A2-6 spindle reaches 4,000 RPM through a 3.5" bore with 2.5" bar capacity, and travels run 7.88" in X, ±2.0" in Y, and 16" in Z.
Imperial
| Swing | 16.5" |
| Machining Length | 16" |
| # Axis | 4 |
| Chuck Size | 8.3" |
| Bar Capacity | 2.5" |
| Power | 20 hp |
| Max RPM | 4,000 RPM |
| Turning Dia | 11" |
| Tailstock | Yes |
| Live Tooling | Yes |

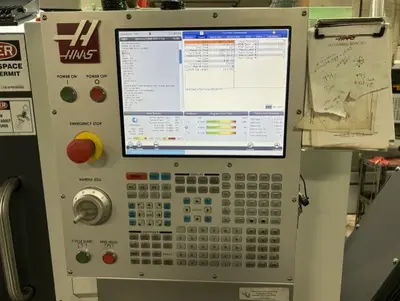

| Control | CNC (HAAS) |
X-Axis Travel: 7.88"
Y-Axis Travel: ±2.0"
Z-Axis Travel: 16"
Rapids (X / Y / Z): 472 / 472 / 1,200 IPM
Max Thrust (X / Y / Z): 2,400 / 2,300 / 3,700 lbf
Spindle Nose: A2-6
Max Spindle Torque: 150 ft-lbf @ 500 RPM
Spindle Bore: 3.5"
C-Axis Max Rating: 5 HP
C-Axis Max Speed: 60 RPM
C-Axis Positioning: ±0.01°
C-Axis Brake Diameter: 13.9"
C-Axis Brake Holding Torque: 250 ft-lbf
Tailstock Taper: MT3
Tailstock Hydraulic Quill Travel: 3.8"
Tailstock Manual Body Positioning: 20"
Tailstock Thrust (Hydraulic Quill): 140-1,130 lbf
Turret Stations: 12
Boring Bar Rear Clearance: 3.8"
Live Tooling Max Speed: 4,000 RPM
Live Tooling Power: 20 HP
Live Tooling Type: BMT45
Haas Bar Feeder
Tool Setter
3-Jaw Hydraulic Chuck
Parts Catcher
12 Position BMT-45 Turret
Chip Conveyor
(4) Live Tool Holders
All Available Static Tool Holders
