2018 Southwestern Industries TRAK 2470RX CNC Lathe
Have one to sell?
ConditionUsed
1 available

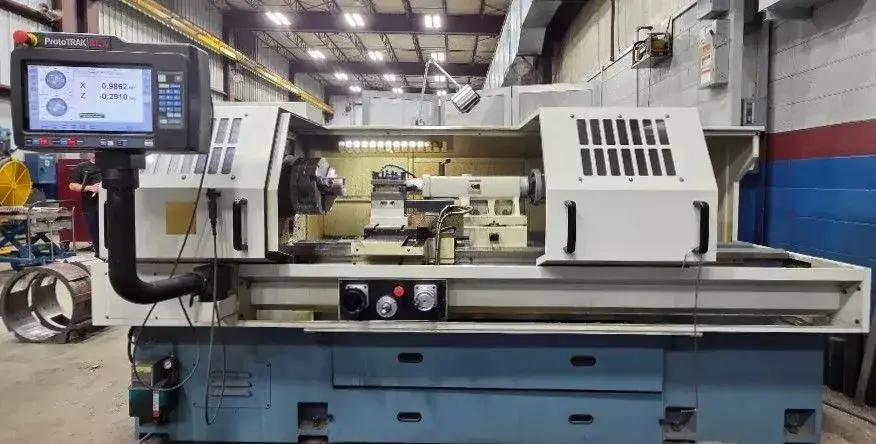

This 2018 Southwestern Industries TRAK 2470RX CNC lathe runs a ProtoTRAK RLX control with the TRAKing software option, a 4-station turret, and a tailstock. It swings 24" over the bed with 70" between centers, and its 15 HP D1-8 spindle reaches 1,800 RPM across two speed ranges with a 12" chuck and 4.09" spindle bore.
Height of Centers: 12"
Swing Over Saddle Wings: 24"
Swing Over Cross Slide: 14.5"
Cross Slide Travel: 12.5"
Bed Width: 14.57"
Bed Height: 15"
Spindle Nose: D1-8
Spindle Taper: MT5 #8
Spindle Speed Ranges: 40-670 RPM, 100-1,800 RPM
Spindle Front Bearing Diameter: 5.51"

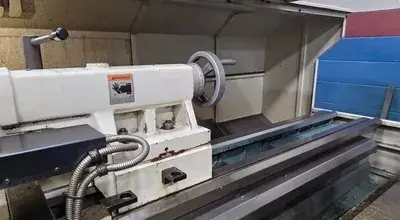

Tailstock Quill Travel: 8.5"
Tailstock Quill Diameter: 3.5"
Tailstock Quill Taper: MT #5
Max Rapid (Z-Axis): 400 IPM
Max Tool Section: 1"
Coolant Reservoir: 15 Gallons
Electrical: 200V / 3 Phase / 60 Hz, 54.7A Full Load
Approximate Weight: 6,500 lbs (Net), 6,900 lbs (Shipping)
Approximate Dimensions: 129" x 60" x 77" (Net, L x W x H)
Approximate Shipping Dimensions: 134" x 64" x 77" (L x W x H)

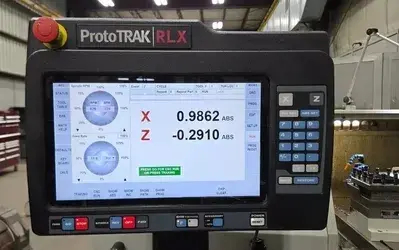

ProtoTRAK RLX Control with 15.6" Touchscreen LCD
TRAKing Software Option

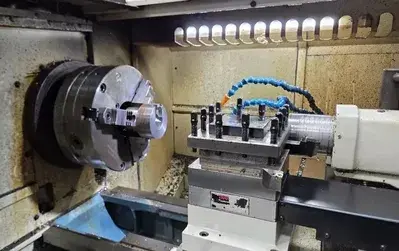

4 Station CNC Turret (1" Tools)
Two-Axis CNC, Two-Axis DRO
Electronic Handwheels
Jogstick
5 USB Connectors, 2 Ethernet Ports
Dynamic Spindle Motor Brake
Dual Sliding Doors (One Removable)
Hardened and Ground Bedways
Turcite Coated Sliding Surfaces
This 2018 Southwestern Industries TRAK 2470RX CNC lathe runs a ProtoTRAK RLX control with the TRAKing software option, a 4-station turret, and a tailstock. It swings 24" over the bed with 70" between centers, and its 15 HP D1-8 spindle reaches 1,800 RPM across two speed ranges with a 12" chuck and 4.09" spindle bore.
Imperial
| Swing | 24" |
| Machining Length | 70" |
| # Axis | 2 |
| Chuck Size | 12" |
| Bar Capacity | 4.09" |
| Power | 15 hp |
| Max RPM | 1,800 RPM |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
| Control | CNC (Prototrak) |
Height of Centers: 12"
Swing Over Saddle Wings: 24"
Swing Over Cross Slide: 14.5"
Cross Slide Travel: 12.5"
Bed Width: 14.57"
Bed Height: 15"
Spindle Nose: D1-8
Spindle Taper: MT5 #8
Spindle Speed Ranges: 40-670 RPM, 100-1,800 RPM
Spindle Front Bearing Diameter: 5.51"
Tailstock Quill Travel: 8.5"
Tailstock Quill Diameter: 3.5"
Tailstock Quill Taper: MT #5
Max Rapid (Z-Axis): 400 IPM
Max Tool Section: 1"
Coolant Reservoir: 15 Gallons
Electrical: 200V / 3 Phase / 60 Hz, 54.7A Full Load
Approximate Weight: 6,500 lbs (Net), 6,900 lbs (Shipping)
Approximate Dimensions: 129" x 60" x 77" (Net, L x W x H)
Approximate Shipping Dimensions: 134" x 64" x 77" (L x W x H)
ProtoTRAK RLX Control with 15.6" Touchscreen LCD
TRAKing Software Option
4 Station CNC Turret (1" Tools)
Two-Axis CNC, Two-Axis DRO
Electronic Handwheels
Jogstick
5 USB Connectors, 2 Ethernet Ports
Dynamic Spindle Motor Brake
Dual Sliding Doors (One Removable)
Hardened and Ground Bedways
Turcite Coated Sliding Surfaces
