2004 You Ji YV-1600 ATC CNC Vertical Turning Lathe
Have one to sell?
ConditionUsed
1 available

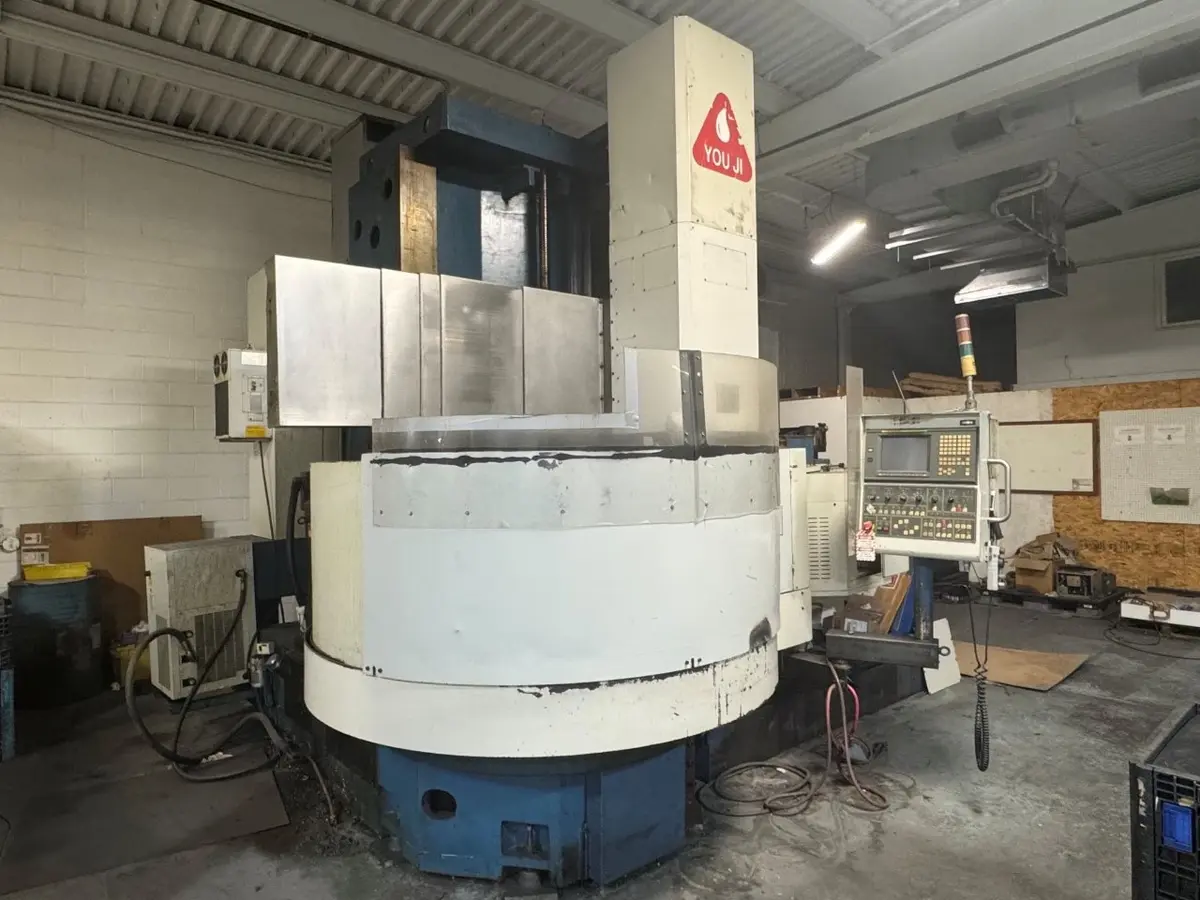

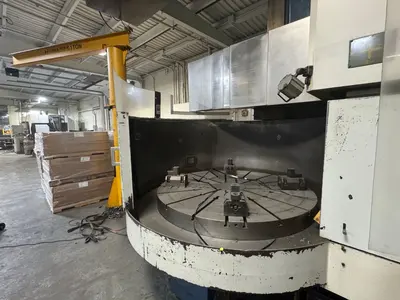

This 2004 You Ji YV-1600 ATC CNC vertical turning lathe swings 78.4" with a 70.86" max turning diameter and a 62.99" table rated for 17,636 lbs. It runs a Fanuc Series 18-T control with a CT-50 taper, 70-250 RPM spindle speed, 47.24" max height under the rail, and a 4-jaw manual chuck.
Max Turning Diameter: 70.86"
Chuck Size: 63"
Max Table Load: 17,636 lbs
Max Height Under Rail: 47.24"
Vertical Travel of Crossrail: 31.49"
X-Axis Travel: 48.23"
Z-Axis Travel: 35.43"
Spindle Taper: CT-50
Approximate Weight: 50,700 lbs

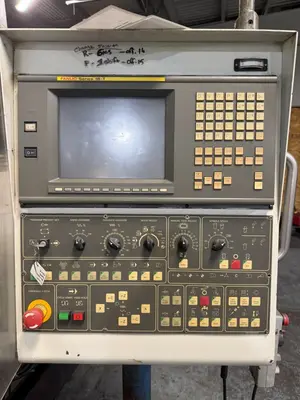

Fanuc Series 18-T Control

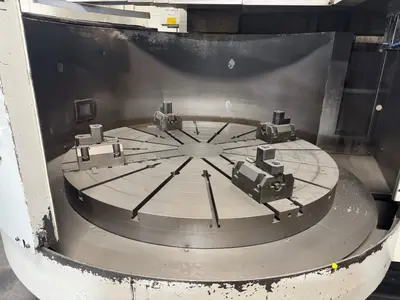

4-Jaw Manual Chuck

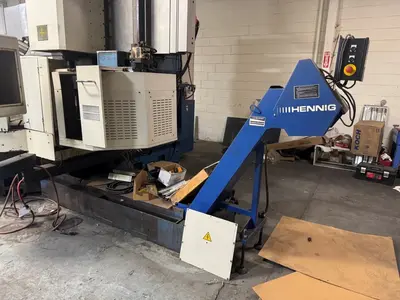

Chip Conveyor

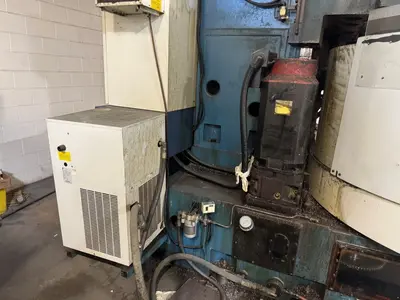

Coolant Tank and Pump
This 2004 You Ji YV-1600 ATC CNC vertical turning lathe swings 78.4" with a 70.86" max turning diameter and a 62.99" table rated for 17,636 lbs. It runs a Fanuc Series 18-T control with a CT-50 taper, 70-250 RPM spindle speed, 47.24" max height under the rail, and a 4-jaw manual chuck.
Imperial
| Table Dia | 62.99" |
| Swing | 78.74" |
| Work Ht-U/R | 51.18" |
| Power | 49 hp |
| RPM | 250 RPM |
| Control | CNC (Fanuc) |
Max Turning Diameter: 70.86"
Chuck Size: 63"
Max Table Load: 17,636 lbs
Max Height Under Rail: 47.24"
Vertical Travel of Crossrail: 31.49"
X-Axis Travel: 48.23"
Z-Axis Travel: 35.43"
Spindle Taper: CT-50
Approximate Weight: 50,700 lbs
Fanuc Series 18-T Control
4-Jaw Manual Chuck
Chip Conveyor
Coolant Tank and Pump
