2024 Haas ST-10 CNC Lathe with Live Tooling
Have one to sell?
ConditionUsed
1 available

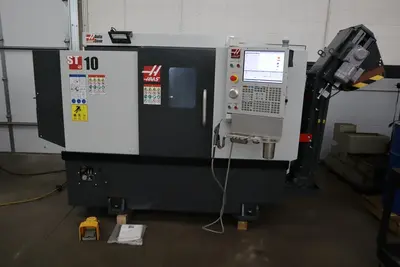

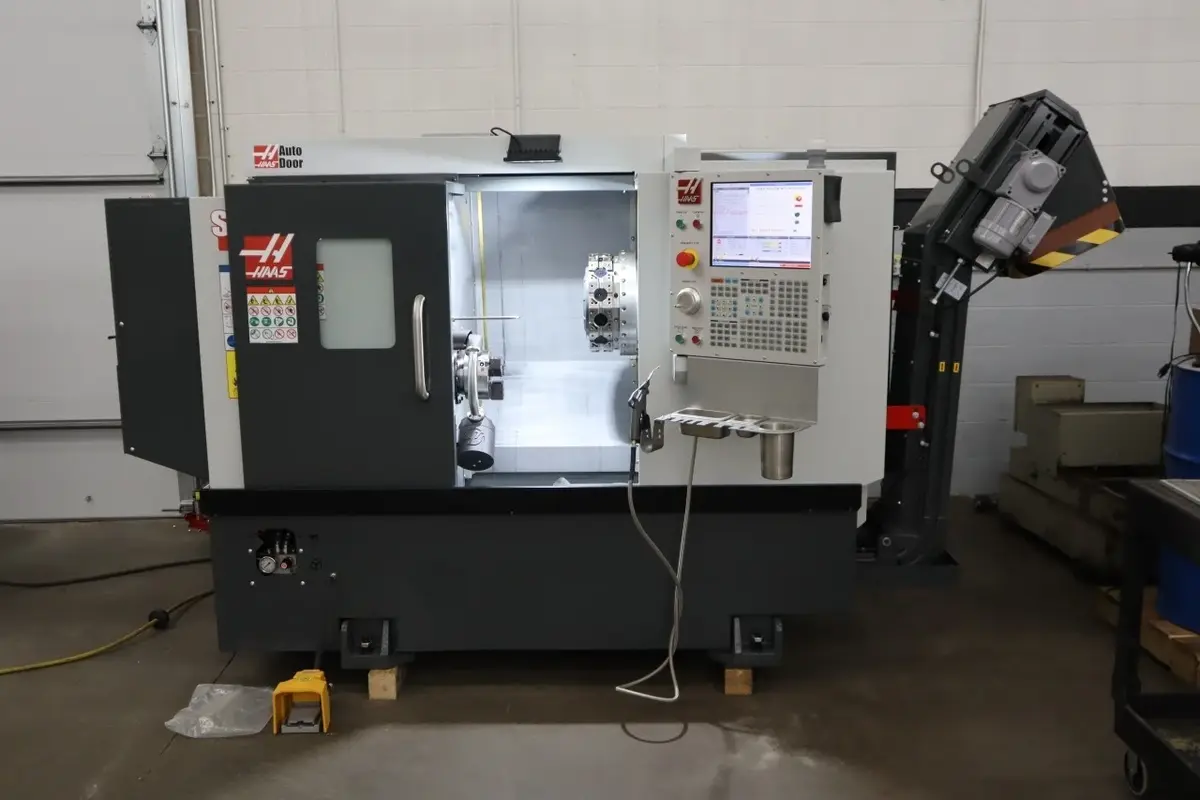

This 2024 Haas ST-10 CNC lathe runs 6,000 RPM live milling with a C-axis on a BMT-45 turret with 24 half-index stations, along with an automatic tool presetter and auto door. It swings 25.25" over the bed with a 14" max turning diameter and 14" turning length, and its 15 HP spindle reaches 6,000 RPM with a 6.5" hydraulic chuck and 1.75" bar capacity.
Swing Over Saddle: 16.25"
Hole Through Spindle: 2.31"
Spindle Nose: A2-5
Turret Travels (X, Z): 7.88" x 14"
Turret Capacity: 12 Stations (24 with Half-Index)
Live Milling Max RPM: 6,000
Live Milling Stations: 12
Rapid Traverse (X, Z): 1,200 IPM

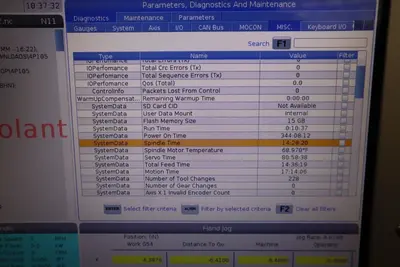

Approximately 14 Spindle Hours

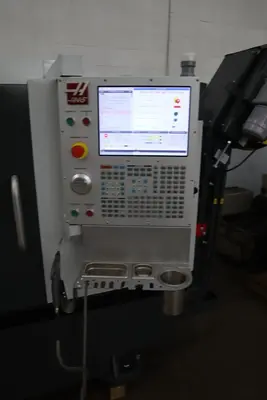

Haas Next Generation Control
C-Axis

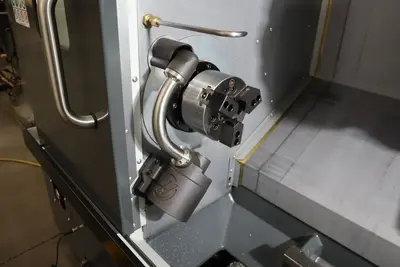

3-Jaw Hydraulic Chuck

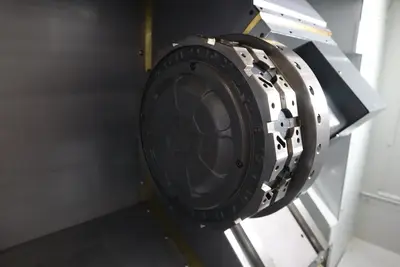

BMT-45 24 Station Turret (Half-Index Stations)
Automatic Tool Presetter
Auto Door
Chip Conveyor
Coolant System
Coolant Level Sensor
Auto Jet Air Blast
Enclosure Exhaust System
USB Port
Macros
Visual Part Programming Software
Machine Pads
(1) New Radial ER25 Live Tool Holder
(1) New Axial ER25 Live Tool Holder
(2) 1" Boring Holders
(1) 1.25" Boring Holder
(3) 2/4" Turning Tool Holders
This 2024 Haas ST-10 CNC lathe runs 6,000 RPM live milling with a C-axis on a BMT-45 turret with 24 half-index stations, along with an automatic tool presetter and auto door. It swings 25.25" over the bed with a 14" max turning diameter and 14" turning length, and its 15 HP spindle reaches 6,000 RPM with a 6.5" hydraulic chuck and 1.75" bar capacity.
Imperial
| Swing | 25.25" |
| Machining Length | 14" |
| # Axis | 3 |
| Chuck Size | 6.5" |
| Bar Capacity | 1.75" |
| Power | 15 hp |
| Max RPM | 6,000 RPM |
| Turning Dia | 14" |
| Tailstock | No |
| Live Tooling | Yes |
| Control | CNC (HAAS) |
Swing Over Saddle: 16.25"
Hole Through Spindle: 2.31"
Spindle Nose: A2-5
Turret Travels (X, Z): 7.88" x 14"
Turret Capacity: 12 Stations (24 with Half-Index)
Live Milling Max RPM: 6,000
Live Milling Stations: 12
Rapid Traverse (X, Z): 1,200 IPM
Approximately 14 Spindle Hours
Haas Next Generation Control
C-Axis
3-Jaw Hydraulic Chuck
BMT-45 24 Station Turret (Half-Index Stations)
Automatic Tool Presetter
Auto Door
Chip Conveyor
Coolant System
Coolant Level Sensor
Auto Jet Air Blast
Enclosure Exhaust System
USB Port
Macros
Visual Part Programming Software
Machine Pads
(1) New Radial ER25 Live Tool Holder
(1) New Axial ER25 Live Tool Holder
(2) 1" Boring Holders
(1) 1.25" Boring Holder
(3) 2/4" Turning Tool Holders
