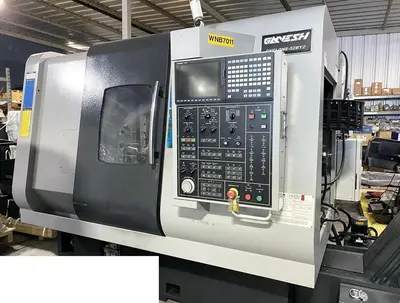

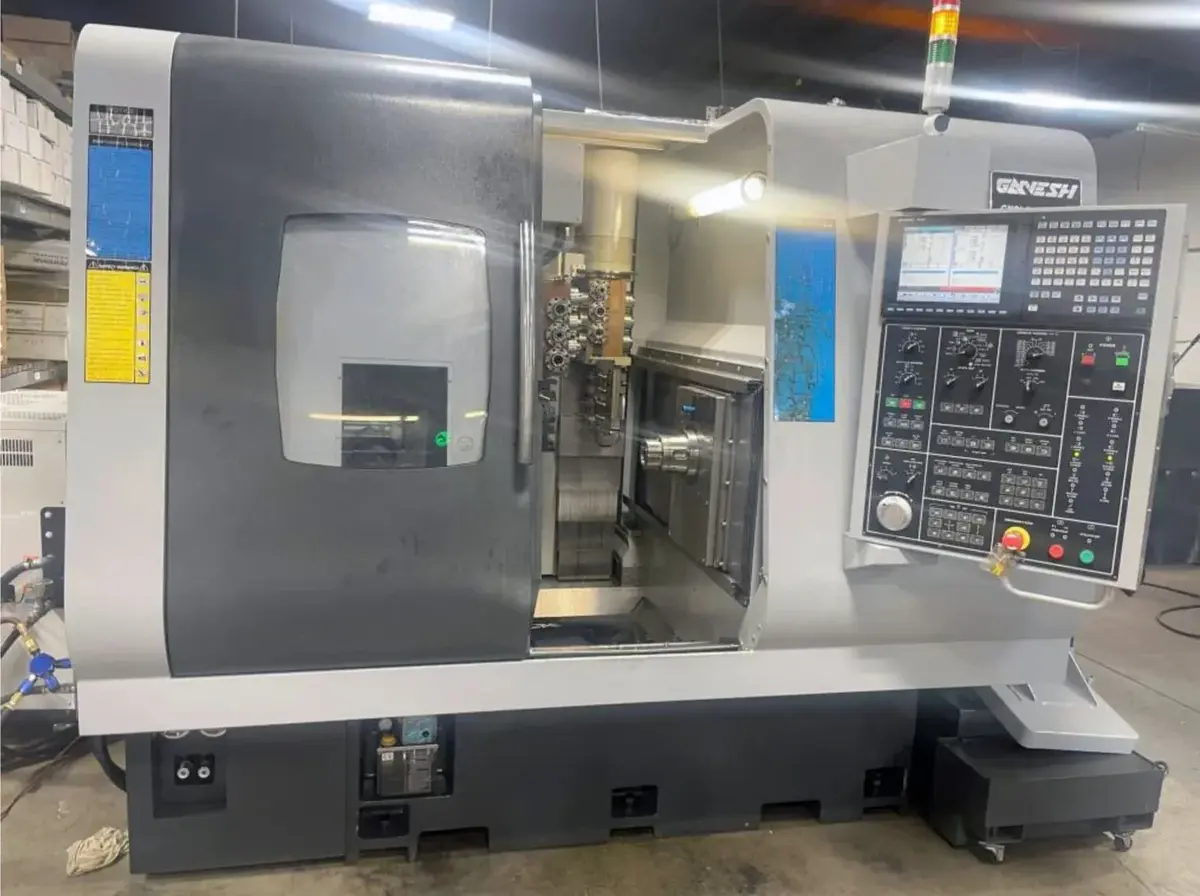

2016 Ganesh Cyclone 52 BY2 9-Axis CNC Lathe with Dual Y-Axis
Have one to sell?
ConditionUsed
1 available
This 2016 Ganesh Cyclone 52 BY2 9-axis CNC lathe pairs a main and sub spindle, each with 15 HP and 6,000 RPM, with dual Y-axes and 18 live tooling stations across 36 tool positions. It runs a Mitsubishi M700 Series control with 2" bar capacity, a 2.01" max turning diameter, and a 9.84" max turning length.
Bar Capacity: 2"
Collet Size: Traub TRB-52
Main Spindle Max Speed: 6,000 RPM
Main Spindle Motor: 15 HP
Main Spindle Max Turning Length: 9.84"
Main Spindle Max Turning Diameter: 2.01"
X1-Axis Travel: 10.63"
Y1-Axis Travel: 18.11"
Z1-Axis Travel: 9.84"
X1/Y1/Z1-Axis Rapid Traverse Rates: 1,181 IPM
Main Spindle Driven Tools: 12 (6 Axial and 6 Radial)
Main Spindle Driven Tool Motor: 5 HP
Main Spindle OD Turning Tools: 5
Main Spindle ID Boring Tools: 5
Sub Spindle Max Speed: 6,000 RPM
Sub Spindle Motor: 15 HP
Sub Spindle Max Turning Length: 9.84"
Sub Spindle Max Turning Diameter: 2.01"
X2-Axis Travel: 18.89"
Y2-Axis Travel: 18.11"
Z2-Axis Travel: 10.63"
X2/Y2/Z2-Axis Rapid Traverse Rates: 1,181 IPM
Sub Spindle Driven Tools: 6 (3 Axial and 3 Radial)
Sub Spindle Driven Tool Motor: 2.7 HP
Sub Spindle OD Turning Tools: 4
Sub Spindle ID Boring Tools: 4
Electrical: 220V, 3-Phase
Approximate Dimensions: 148" x 85" x 82"
Approximate Weight: 12,345 lbs

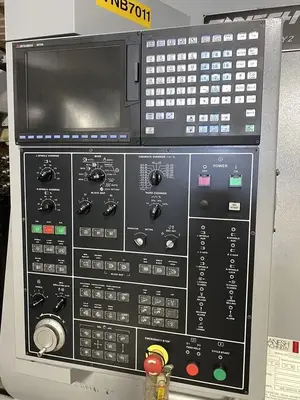

Mitsubishi M700 Series Control

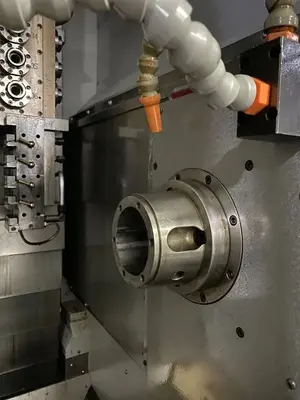

Sub Spindle
Dual Y-Axis
B-Axis Simultaneous Main and Sub Spindle Machining
36 Tool Positions

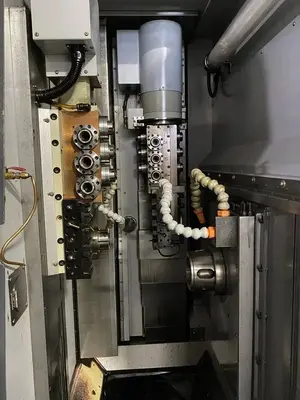

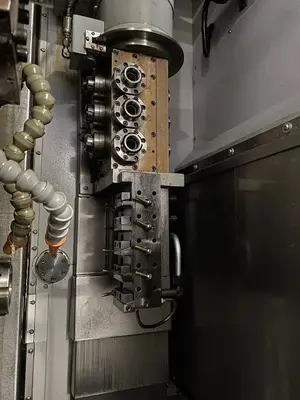

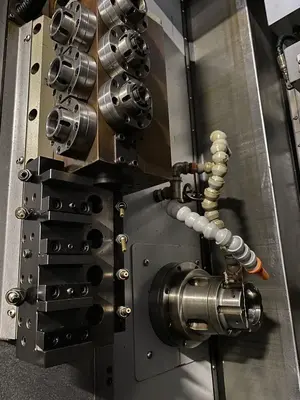

18 Live Tooling Stations

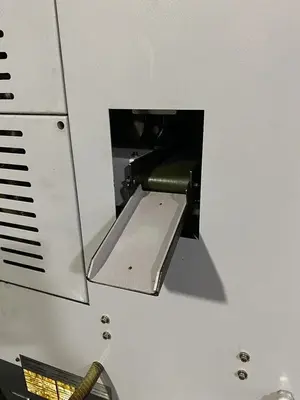

Parts Catcher/Conveyor

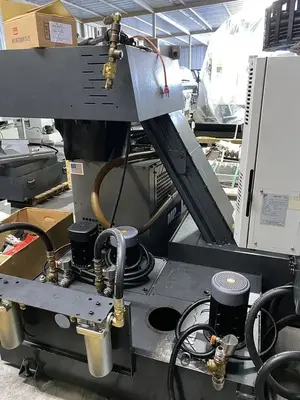

Chip Conveyor
This 2016 Ganesh Cyclone 52 BY2 9-axis CNC lathe pairs a main and sub spindle, each with 15 HP and 6,000 RPM, with dual Y-axes and 18 live tooling stations across 36 tool positions. It runs a Mitsubishi M700 Series control with 2" bar capacity, a 2.01" max turning diameter, and a 9.84" max turning length.
Imperial
| Spindle Hole Dia | 2" |
| # Spindles | 2 |
| Power | 15 hp |
| Control | CNC (Mitsubishi) |
Bar Capacity: 2"
Collet Size: Traub TRB-52
Main Spindle Max Speed: 6,000 RPM
Main Spindle Motor: 15 HP
Main Spindle Max Turning Length: 9.84"
Main Spindle Max Turning Diameter: 2.01"
X1-Axis Travel: 10.63"
Y1-Axis Travel: 18.11"
Z1-Axis Travel: 9.84"
X1/Y1/Z1-Axis Rapid Traverse Rates: 1,181 IPM
Main Spindle Driven Tools: 12 (6 Axial and 6 Radial)
Main Spindle Driven Tool Motor: 5 HP
Main Spindle OD Turning Tools: 5
Main Spindle ID Boring Tools: 5
Sub Spindle Max Speed: 6,000 RPM
Sub Spindle Motor: 15 HP
Sub Spindle Max Turning Length: 9.84"
Sub Spindle Max Turning Diameter: 2.01"
X2-Axis Travel: 18.89"
Y2-Axis Travel: 18.11"
Z2-Axis Travel: 10.63"
X2/Y2/Z2-Axis Rapid Traverse Rates: 1,181 IPM
Sub Spindle Driven Tools: 6 (3 Axial and 3 Radial)
Sub Spindle Driven Tool Motor: 2.7 HP
Sub Spindle OD Turning Tools: 4
Sub Spindle ID Boring Tools: 4
Electrical: 220V, 3-Phase
Approximate Dimensions: 148" x 85" x 82"
Approximate Weight: 12,345 lbs
Mitsubishi M700 Series Control
Sub Spindle
Dual Y-Axis
B-Axis Simultaneous Main and Sub Spindle Machining
36 Tool Positions
18 Live Tooling Stations
Parts Catcher/Conveyor
Chip Conveyor
