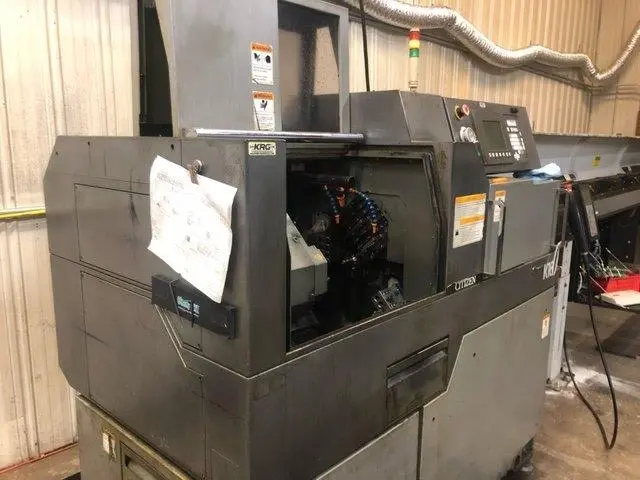

2005 Citizen K16 Type VIIP CNC Swiss Lathe with Bar Feeder
Have one to sell?
ConditionUsed
1 available
This 2005 Citizen K16 Type VIIP CNC Swiss lathe comes with an LNS Express 220 magazine bar feeder and a Fanuc FS31i control, handling up to 0.63" diameter and 7.87" machining length. It runs a 15,000 RPM main spindle and 10,000 RPM back spindle, with 6,000 RPM rotary tools and 18 tool positions.
Max Machining Diameter: 0.63"
Max Machining Length: 7.87"
Max Front Drilling Diameter: 0.39"
Max Front Tapping Size: M8
Spindle Through-Hole Diameter: 0.79"
Main Spindle Speed: 15,000 RPM
Back Spindle Speed: 10,000 RPM
Rotary Spindle Speed: 6,000 RPM
Max Drill Diameter Rotary Cross Drill: 0.2"
Max Tap Diameter Rotary Cross Drill: M4
Max Chuck Diameter of Back Spindle: 0.63"
Max Workpiece Length for Front Ejection: 1.57"
Max Drill Diameter for Back Working: 0.24"
Max Tap Diameter for Back Working: M5
Number of Tools: 18

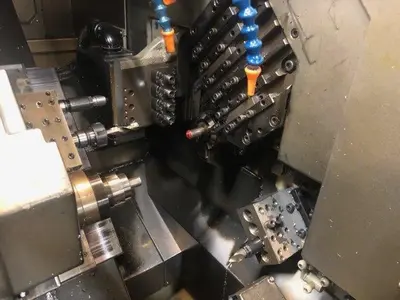

Turning Tools on Gang Tool Post: 6
Rotary Tools on Gang Tool Post: 4
Tools for Front Spindle: 4
Tools for Back Spindle: 4
Gang Tool Post Tool Size: 0.51"
Sleeve Size: 0.75"
Main Spindle Motor: 2.95/4.96 HP
Input Power Capacity: 8 KVA
Approximate Weight: 4,629.7 lbs
Approximate Dimensions: 86" x 38" x 64"H

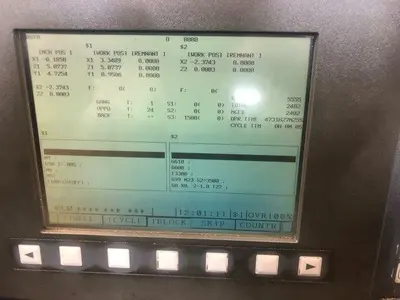

Fanuc FS31i Control

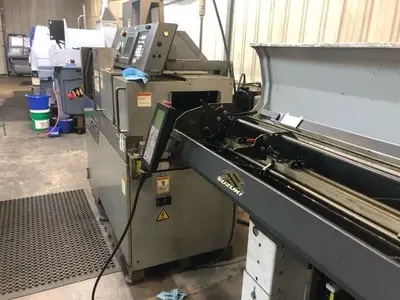

LNS Express 220 Magazine Barfeed
