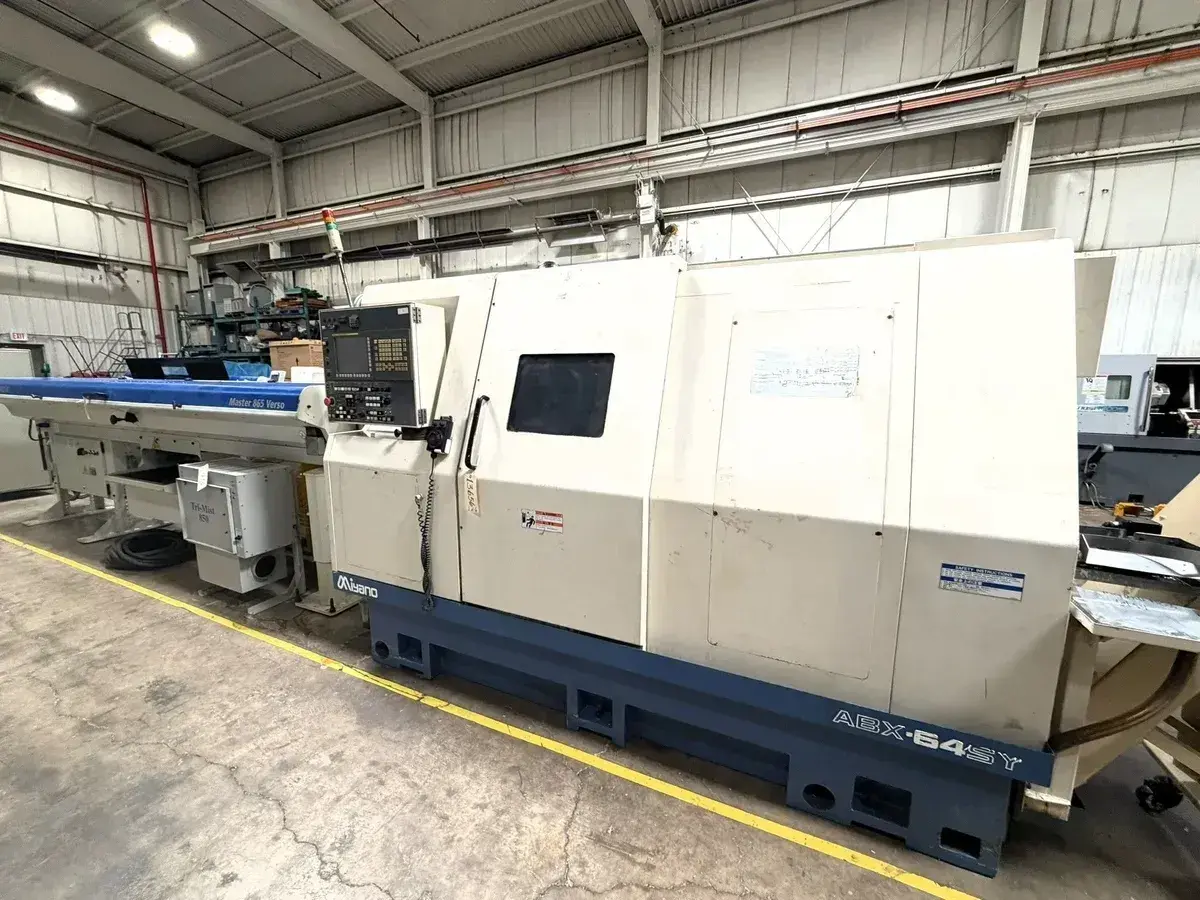

2011 Miyano ABX-64SY 5-Axis CNC Lathe with Iemca Bar Feeder
Have one to sell?
ConditionUsed
1 available
This 2011 Miyano ABX-64SY 5-axis CNC lathe has twin spindles and twin 12-station live turrets, with a Y-axis, two C-axes, and an Iemca bar feeder. The main spindle runs up to 4,000 RPM with 2.52" bar capacity, the sub spindle runs up to 5,000 RPM with 2.05" bar capacity, and live tools reach 6,000 RPM, with a 6.50" max cutting diameter.
Main Spindle Speed: 40 to 4,000 RPM
Sub Spindle Bar Capacity: 2.05"
Sub Spindle Speed: 50 to 5,000 RPM

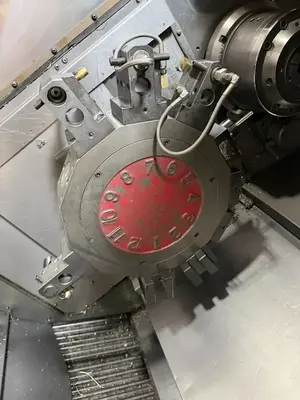

Turret Stations: Dual 12-Station Turrets (2 x 12)
Y-Axis Travel: ±1.57"
Rotary Milling Speed: 6,000 RPM
Milling Motor Power: 6.03 HP

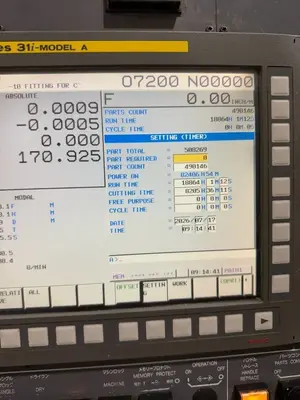

Approximately 8,205 Cutting Hours

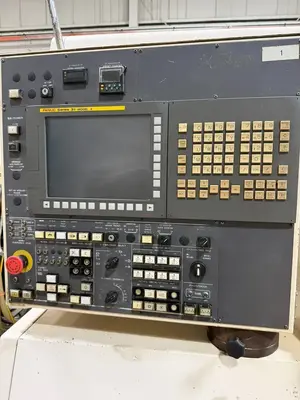

Fanuc 31i-A Control

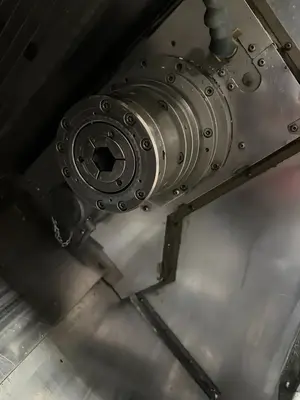

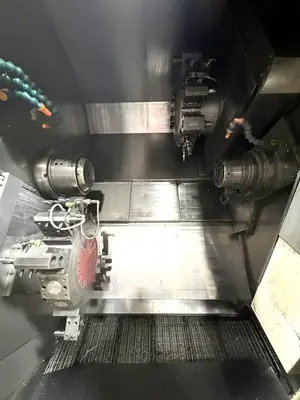

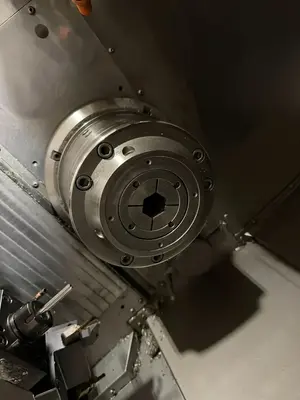

Main and Sub Spindles
(2) Live Turrets
(2) C-Axis
Y-Axis
Tool Setter

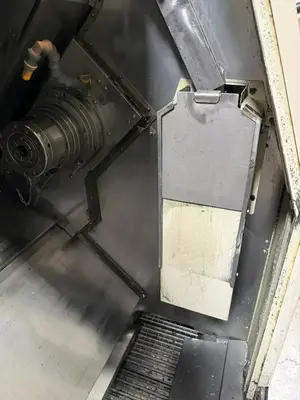

Parts Catcher

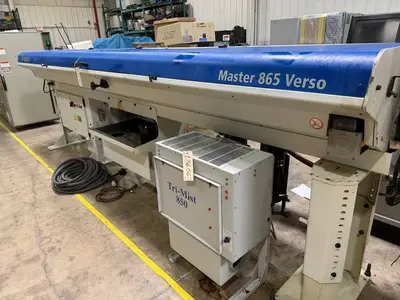

Iemca Master 865MP Bar Feeder

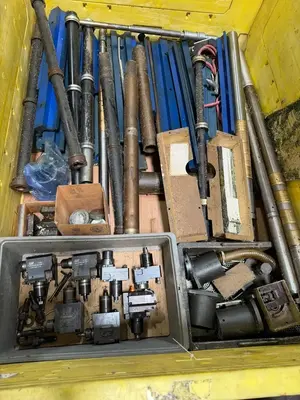

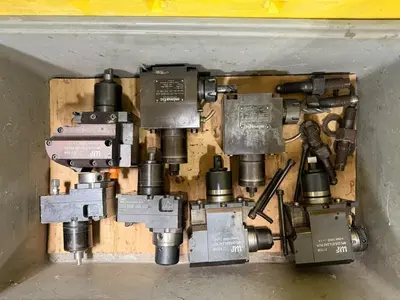

Assorted Live Tools
This 2011 Miyano ABX-64SY 5-axis CNC lathe has twin spindles and twin 12-station live turrets, with a Y-axis, two C-axes, and an Iemca bar feeder. The main spindle runs up to 4,000 RPM with 2.52" bar capacity, the sub spindle runs up to 5,000 RPM with 2.05" bar capacity, and live tools reach 6,000 RPM, with a 6.50" max cutting diameter.
Imperial
| # Axis | 6 |
| Machining Length | 4.9213" |
| Chuck Size | 6" |
| Bar Capacity | 2.5197" |
| Power | 20.1 hp |
| Max RPM | 5,000 RPM |
| Tailstock | No |
| Control | CNC (Fanuc) |
Main Spindle Speed: 40 to 4,000 RPM
Sub Spindle Bar Capacity: 2.05"
Sub Spindle Speed: 50 to 5,000 RPM
Turret Stations: Dual 12-Station Turrets (2 x 12)
Y-Axis Travel: ±1.57"
Rotary Milling Speed: 6,000 RPM
Milling Motor Power: 6.03 HP
Approximately 8,205 Cutting Hours
Fanuc 31i-A Control
Main and Sub Spindles
(2) Live Turrets
(2) C-Axis
Y-Axis
Tool Setter
Parts Catcher
Iemca Master 865MP Bar Feeder
Assorted Live Tools
