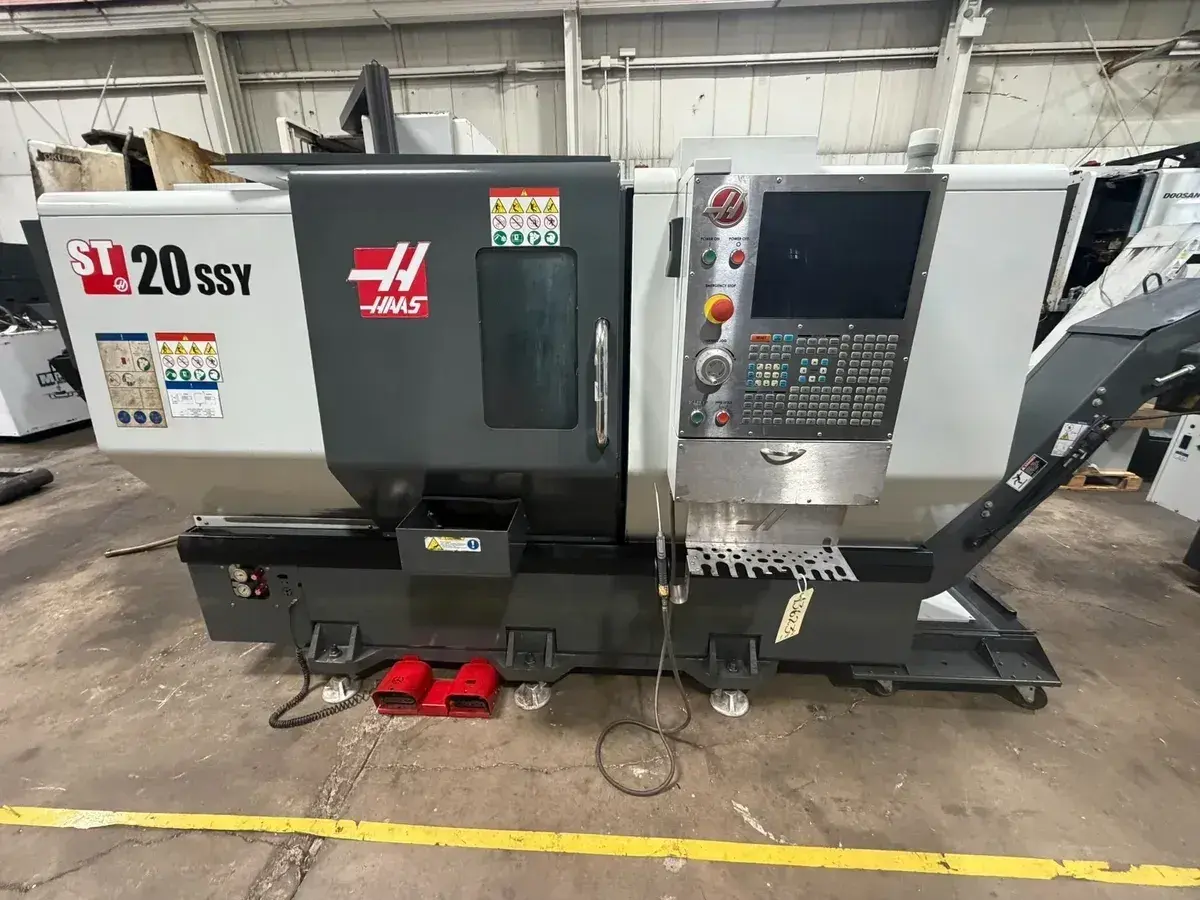

2016 Haas ST-20SSY CNC Lathe with Live Tooling and Y-Axis
Have one to sell?
ConditionUsed
1 available

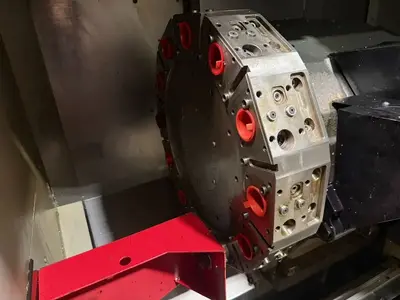

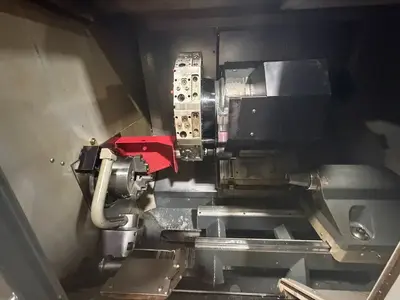

This 2016 Haas ST-20SSY CNC lathe has live tooling, a Y-axis, and a C-axis, with a 24-station VB turret and 6,000 RPM live tools. It runs an 8" 3-jaw chuck with 30 HP and a max spindle speed of 4,000 RPM, with 2" bar capacity and a 10" max cutting diameter over a 21" cutting length.
Swing Over Cross Slide: 20.75"
X Travel: 9.3"
Y Travel: +2"
Z Travel: 21"
Rapids: 472 x 1,200 IPM
C-Axis Power: 5 HP
Live Tooling Speed: 6,000 RPM
VB 24-Station Turret
C-Axis
Y-Axis

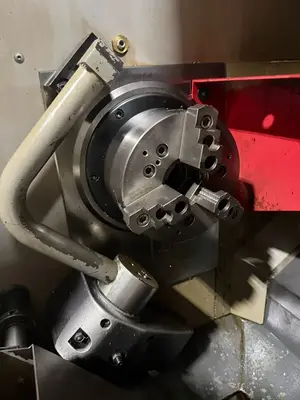

3-Jaw Chuck
Automatic Tool Setter
Parts Catcher
Chip Conveyor
Coolant System
Rigid Tapping
Spindle Orientation
Remote Jog Handle
Ethernet Connection
750 MB Expanded Memory
This 2016 Haas ST-20SSY CNC lathe has live tooling, a Y-axis, and a C-axis, with a 24-station VB turret and 6,000 RPM live tools. It runs an 8" 3-jaw chuck with 30 HP and a max spindle speed of 4,000 RPM, with 2" bar capacity and a 10" max cutting diameter over a 21" cutting length.
Imperial
| Swing | 31.75" |
| Machining Length | 21" |
| # Axis | 4 |
| Chuck Size | 8" |
| Bar Capacity | 2" |
| Power | 30 hp |
| Max RPM | 4,000 RPM |
| Turning Dia | 10" |
| Tailstock | No |
| Live Tooling | Yes |
| Sub Spindle | Yes |
| Control | CNC (HAAS) |
Swing Over Cross Slide: 20.75"
X Travel: 9.3"
Y Travel: +2"
Z Travel: 21"
Rapids: 472 x 1,200 IPM
C-Axis Power: 5 HP
Live Tooling Speed: 6,000 RPM
VB 24-Station Turret
C-Axis
Y-Axis
3-Jaw Chuck
Automatic Tool Setter
Parts Catcher
Chip Conveyor
Coolant System
Rigid Tapping
Spindle Orientation
Remote Jog Handle
Ethernet Connection
750 MB Expanded Memory
