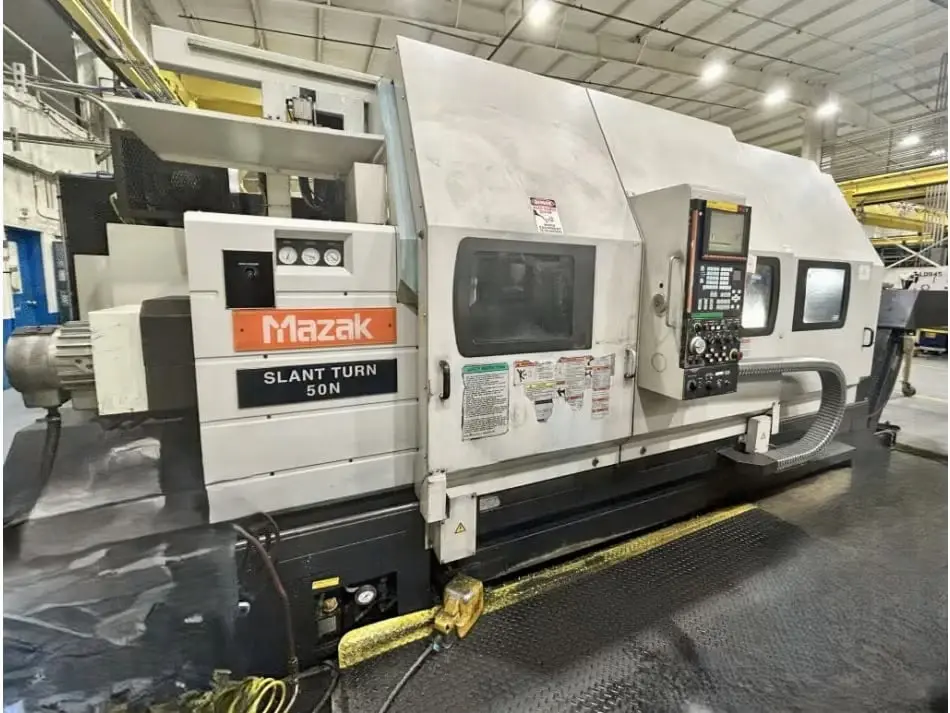

2006 Mazak Slant Turn 50NR CNC Lathe with 7.1" Bore
Have one to sell?
ConditionUsed
1 available
This 2006 Mazak Slant Turn 50NR CNC lathe has a 7.1" spindle bore, steady rest, and tailstock, with 31.7" of swing over the bed and 81" between centers. Its 50 HP spindle runs up to 750 RPM with a 12-station turret and a 28" max cutting diameter.
Swing Over Carriage: 22"

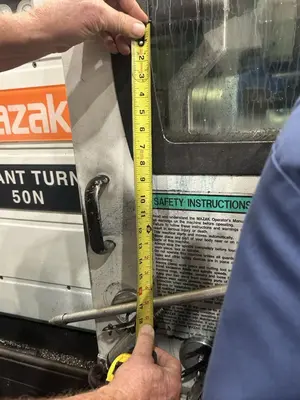

Spindle Bore: 7.1"
X-Axis Travel: 22.6"
Z-Axis Travel: 80"
Rapid Traverse X-Axis: 472.4 IPM
Rapid Traverse Z-Axis: 551.18 IPM

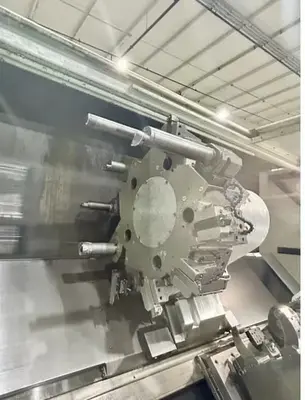

Turret: 12 Stations
Approximate Weight: 31,000 lbs

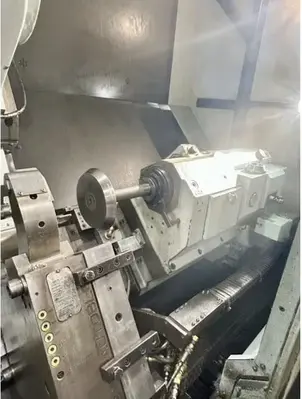

Steady Rest

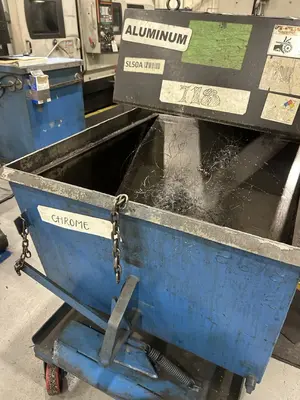

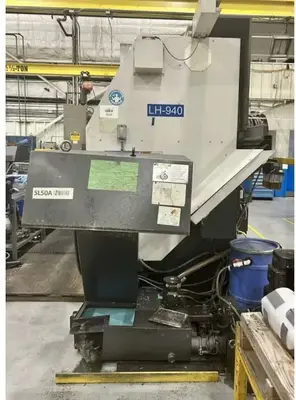

Chip Conveyor

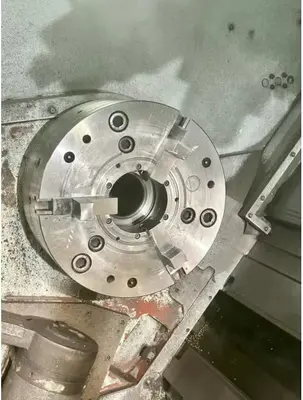

Front Chuck Only
This 2006 Mazak Slant Turn 50NR CNC lathe has a 7.1" spindle bore, steady rest, and tailstock, with 31.7" of swing over the bed and 81" between centers. Its 50 HP spindle runs up to 750 RPM with a 12-station turret and a 28" max cutting diameter.
The Mazak Slant Turn 50NR, also searched as Mazak Slant Turn 50 NR, Slant Turn 50N, or Mazak 50NR, is a 2-axis big bore CNC turning center.
This 2006 machine has 22" of swing over the carriage, 22.6" of X-axis travel, and 80" of Z-axis travel, with rapid rates of 472.4 IPM on X and 551.18 IPM on Z. It comes equipped with a Mazatrol 640T control and a chip conveyor, with an approximate weight of 31,000 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Swing | 31.7" |
| Machining Length | 81" |
| # Axis | 2 |
| Bar Capacity | 0.2559" |
| Power | 50 hp |
| Max RPM | 750 RPM |
| Turning Dia | 1.1024" |
| Tailstock | Yes |

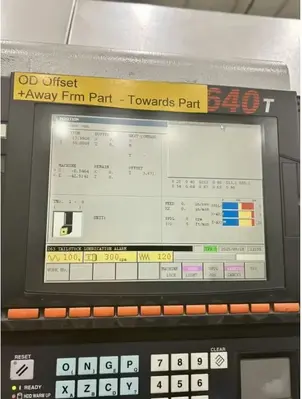

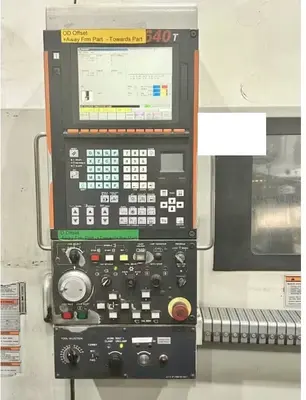

| Control | CNC (Mazatrol Fusion 640T) |
Swing Over Carriage: 22"
Spindle Bore: 7.1"
X-Axis Travel: 22.6"
Z-Axis Travel: 80"
Rapid Traverse X-Axis: 472.4 IPM
Rapid Traverse Z-Axis: 551.18 IPM
Turret: 12 Stations
Approximate Weight: 31,000 lbs
Steady Rest
Chip Conveyor
Front Chuck Only
