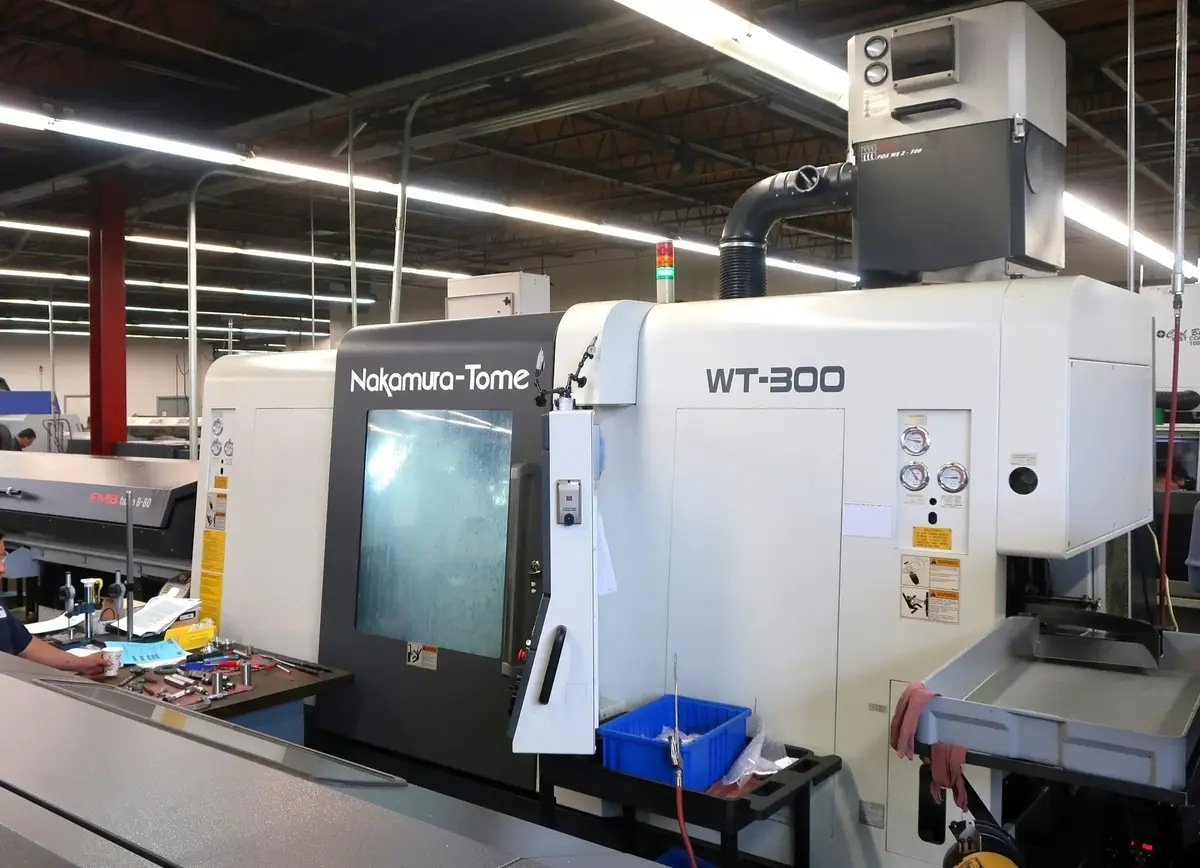

2015 Nakamura-Tome WT-300MMY 5-Axis CNC Lathe with Bar Feeder
Have one to sell?
ConditionUsed
1 available

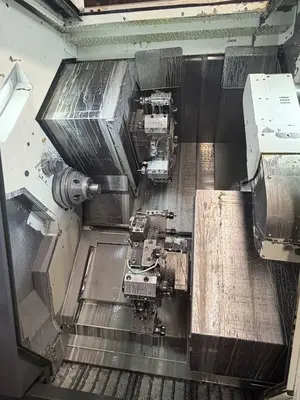

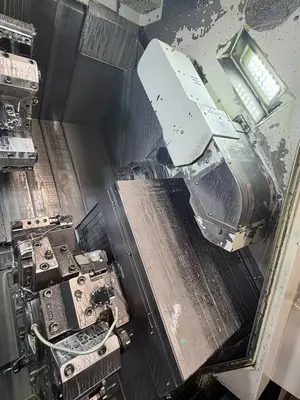

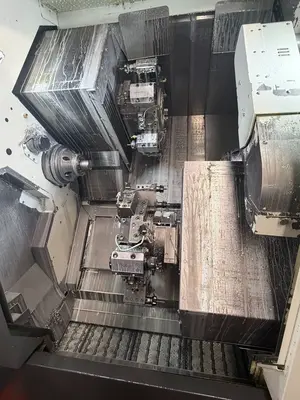

This 2015 Nakamura-Tome WT-300MMY twin spindle, twin turret 5-axis CNC lathe comes with an FMB Turbo 8-80 bar feeder, Chip Blaster high pressure coolant, and Y-axis on the upper turret, with 10 live tools across two 24-station turrets. Spindles reach 4,500 RPM with 20/15 HP motors, covering a 10.63" turning diameter over a 30.71" turning length.
Right Spindle Motor: 15 HP
Right Spindle Bar Capacity: 2.56"
Spindle Nose: A2-6
Spindle Bore: 3.15"
Hole Through Draw Tube: 2.598"

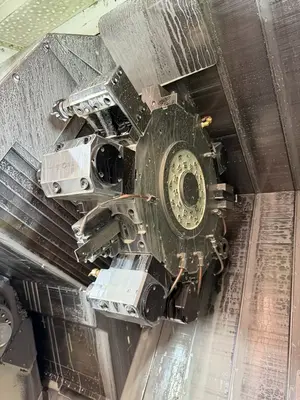

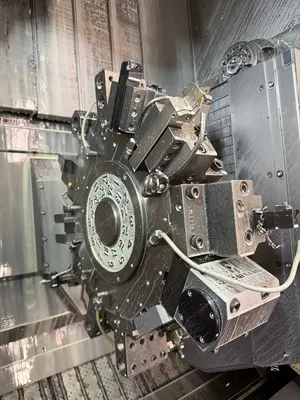

Turret Type (Upper / Lower): Dodecagonal / Dodecagonal
Tool Stations: 24 Upper / 24 Lower
Rotating Tool Speed: 3,600 RPM
C-Axis Least Input / Command Increment: .001 Deg
C-Axis Rotation Speed: 600 IPM
X1 / X2 Travel: 7.68"
Z1 / Z2 Travel: 30.71"
B2 Axis Travel: 33.46"
Rapid Traverse X1 / X2: 630 IPM
Rapid Traverse Z1 / Z2: 1,063 IPM
Rapid Traverse B2: 1,063 IPM
Rapid Traverse Y: 236 IPM
Approximate Weight: 31,975 lbs

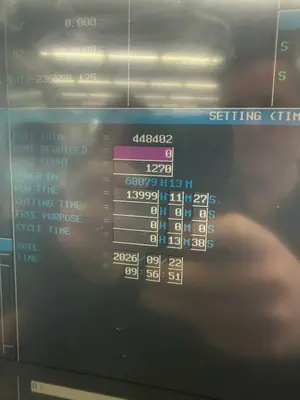

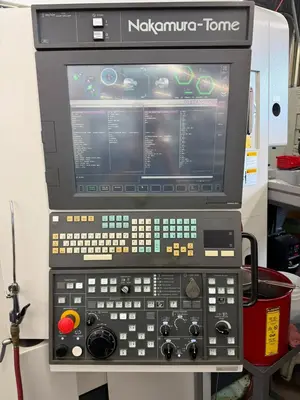

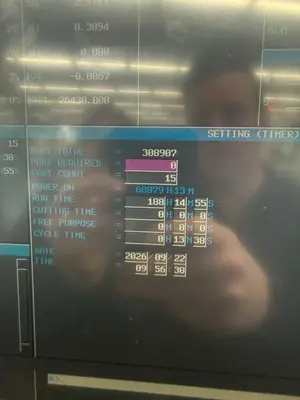

NT Smart X Control with Fanuc 31i-A5
Twin Spindle
Twin Turret
Y-Axis Function on Upper Turret
Milling Function on Both Turrets
(10) Live Tools (5 Radial, 5 Axial)

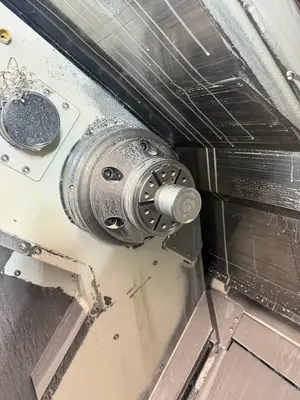

Collet Chucks

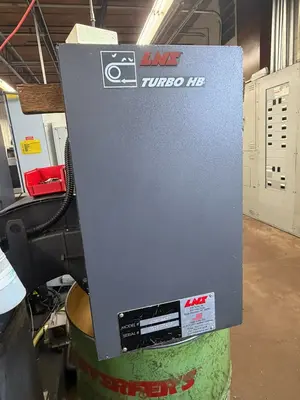

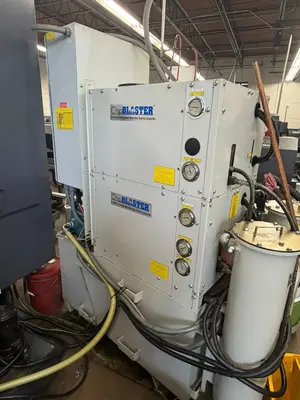

Chip Blaster J2-60 High Pressure Coolant Pump

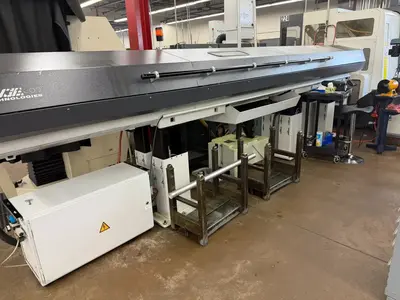

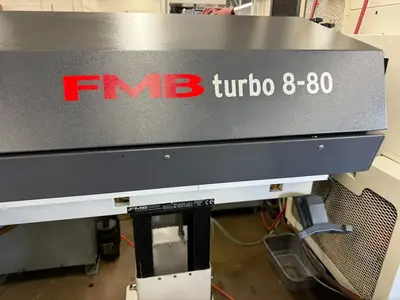

FMB Turbo 8-80 / 4200 “A” Bar Feeder

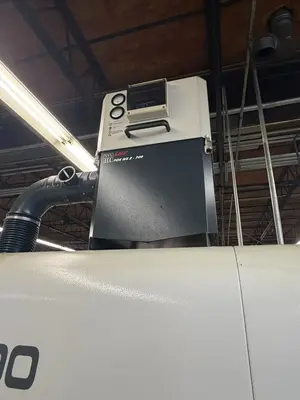

LNS Fox WS2 700 Mist Collector

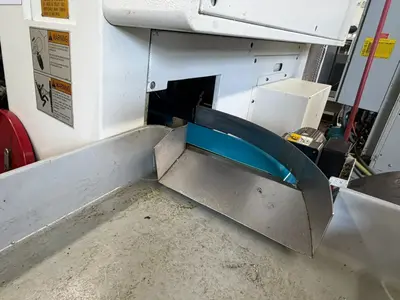

Parts Catcher and Exit Conveyor
Chip Conveyor
This 2015 Nakamura-Tome WT-300MMY twin spindle, twin turret 5-axis CNC lathe comes with an FMB Turbo 8-80 bar feeder, Chip Blaster high pressure coolant, and Y-axis on the upper turret, with 10 live tools across two 24-station turrets. Spindles reach 4,500 RPM with 20/15 HP motors, covering a 10.63" turning diameter over a 30.71" turning length.
Imperial
| # Axis | 7 |
| Swing | 10.63" |
| Machining Length | 30.71" |
| Bar Capacity | 2.8" |
| Power | 20 hp |
| Max RPM | 4,500 RPM |
| Turning Dia | 10.63" |
| Tailstock | No |
| Control | CNC (Fanuc) |
Right Spindle Motor: 15 HP
Right Spindle Bar Capacity: 2.56"
Spindle Nose: A2-6
Spindle Bore: 3.15"
Hole Through Draw Tube: 2.598"
Turret Type (Upper / Lower): Dodecagonal / Dodecagonal
Tool Stations: 24 Upper / 24 Lower
Rotating Tool Speed: 3,600 RPM
C-Axis Least Input / Command Increment: .001 Deg
C-Axis Rotation Speed: 600 IPM
X1 / X2 Travel: 7.68"
Z1 / Z2 Travel: 30.71"
B2 Axis Travel: 33.46"
Rapid Traverse X1 / X2: 630 IPM
Rapid Traverse Z1 / Z2: 1,063 IPM
Rapid Traverse B2: 1,063 IPM
Rapid Traverse Y: 236 IPM
Approximate Weight: 31,975 lbs
NT Smart X Control with Fanuc 31i-A5
Twin Spindle
Twin Turret
Y-Axis Function on Upper Turret
Milling Function on Both Turrets
(10) Live Tools (5 Radial, 5 Axial)
Collet Chucks
Chip Blaster J2-60 High Pressure Coolant Pump
FMB Turbo 8-80 / 4200 “A” Bar Feeder
LNS Fox WS2 700 Mist Collector
Parts Catcher and Exit Conveyor
Chip Conveyor
