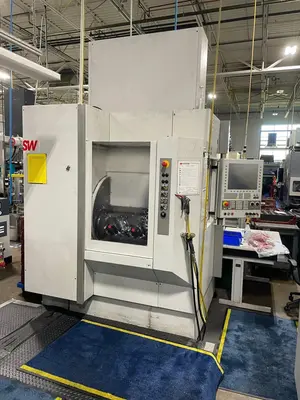

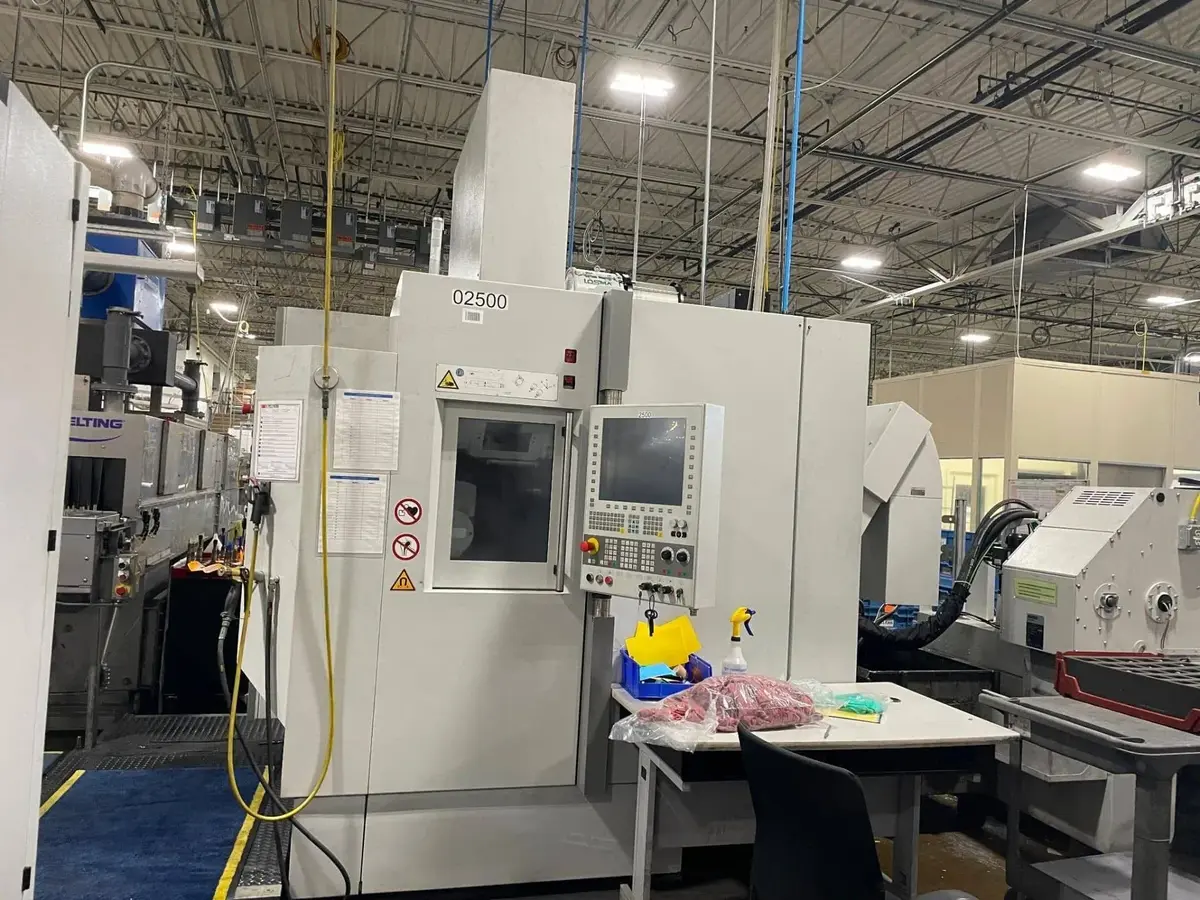

2017 SW BA W02-22 Horizontal Machining Center
Have one to sell?
ConditionUsed
1 available
This 2017 SW BA W02-22 horizontal machining center runs an HSK-A40 spindle at up to 25,000 RPM, with 7.87" of X travel, 13.78" of Y travel, and 11.81" of Z travel. Its swivel carrier with crown gear indexes 0/180° in approximately 2.25 seconds, and chip-to-chip tool change time is approximately 1.75 seconds.
Y-Axis Travel With Toolchange Position: 20.67"
Spindle Distance: 9.84"
Swivel Time (0/180°): Approximately 2.25 Seconds
A- and U-Axis Fixture Plate Capacity: Up to Max Ø 16.73" x 24.80"
Drive System: Torque Motor
Load Capacity: 2 x 352.74 lbs
A- and U-Axis Speed Range: 1 to 100 RPM
C- and W-Axis: 2 Satellites
Chip-to-Chip Time: Approximately 1.75 Seconds
Approximate Weight: 13,889 lbs
Approximate Transport Dimensions (W x H x L): 75.59" x 92.52" x 100.39"
Approximate Installed Dimensions (W x H x L): 125.98" x 114.17" x 204.72"
Operating Voltage: 3 x 400 Volt, 50 Hz, TN-S/TN-C Network
Total Connected Load: 41 kVA
Mean Air Consumption: 14.12 Cubic Feet Per Minute (80 PSI)

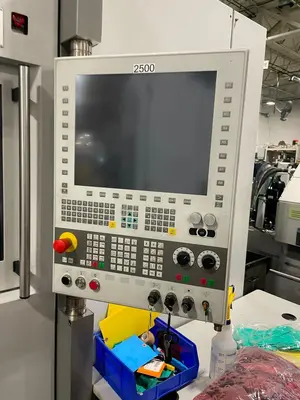

Siemens Sinumerik 840D SL Control

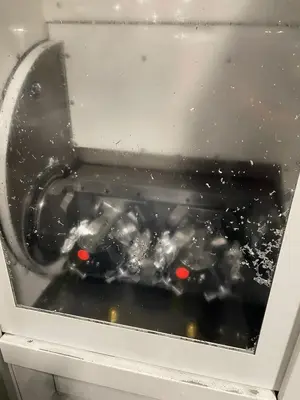

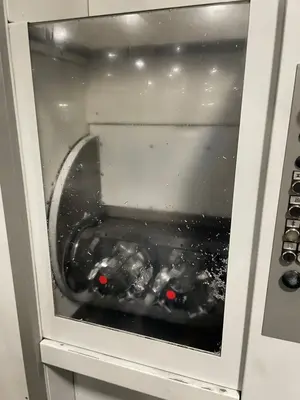

Swivel Carrier / Counterbearing With Crown Gear
This 2017 SW BA W02-22 horizontal machining center runs an HSK-A40 spindle at up to 25,000 RPM, with 7.87" of X travel, 13.78" of Y travel, and 11.81" of Z travel. Its swivel carrier with crown gear indexes 0/180° in approximately 2.25 seconds, and chip-to-chip tool change time is approximately 1.75 seconds.
Imperial
| X | 7.87" |
| Y | 13.78" |
| Z | 11.81" |
| RPM | 25,000 RPM |
| Taper | HSK-A40 |
| Control | CNC (Siemmens) |
Y-Axis Travel With Toolchange Position: 20.67"
Spindle Distance: 9.84"
Swivel Time (0/180°): Approximately 2.25 Seconds
A- and U-Axis Fixture Plate Capacity: Up to Max Ø 16.73" x 24.80"
Drive System: Torque Motor
Load Capacity: 2 x 352.74 lbs
A- and U-Axis Speed Range: 1 to 100 RPM
C- and W-Axis: 2 Satellites
Chip-to-Chip Time: Approximately 1.75 Seconds
Approximate Weight: 13,889 lbs
Approximate Transport Dimensions (W x H x L): 75.59" x 92.52" x 100.39"
Approximate Installed Dimensions (W x H x L): 125.98" x 114.17" x 204.72"
Operating Voltage: 3 x 400 Volt, 50 Hz, TN-S/TN-C Network
Total Connected Load: 41 kVA
Mean Air Consumption: 14.12 Cubic Feet Per Minute (80 PSI)
Siemens Sinumerik 840D SL Control
Swivel Carrier / Counterbearing With Crown Gear
