2018 Haas VF-2TR 5-Axis Vertical Machining Center with TSC
Have one to sell?
ConditionUsed
1 available

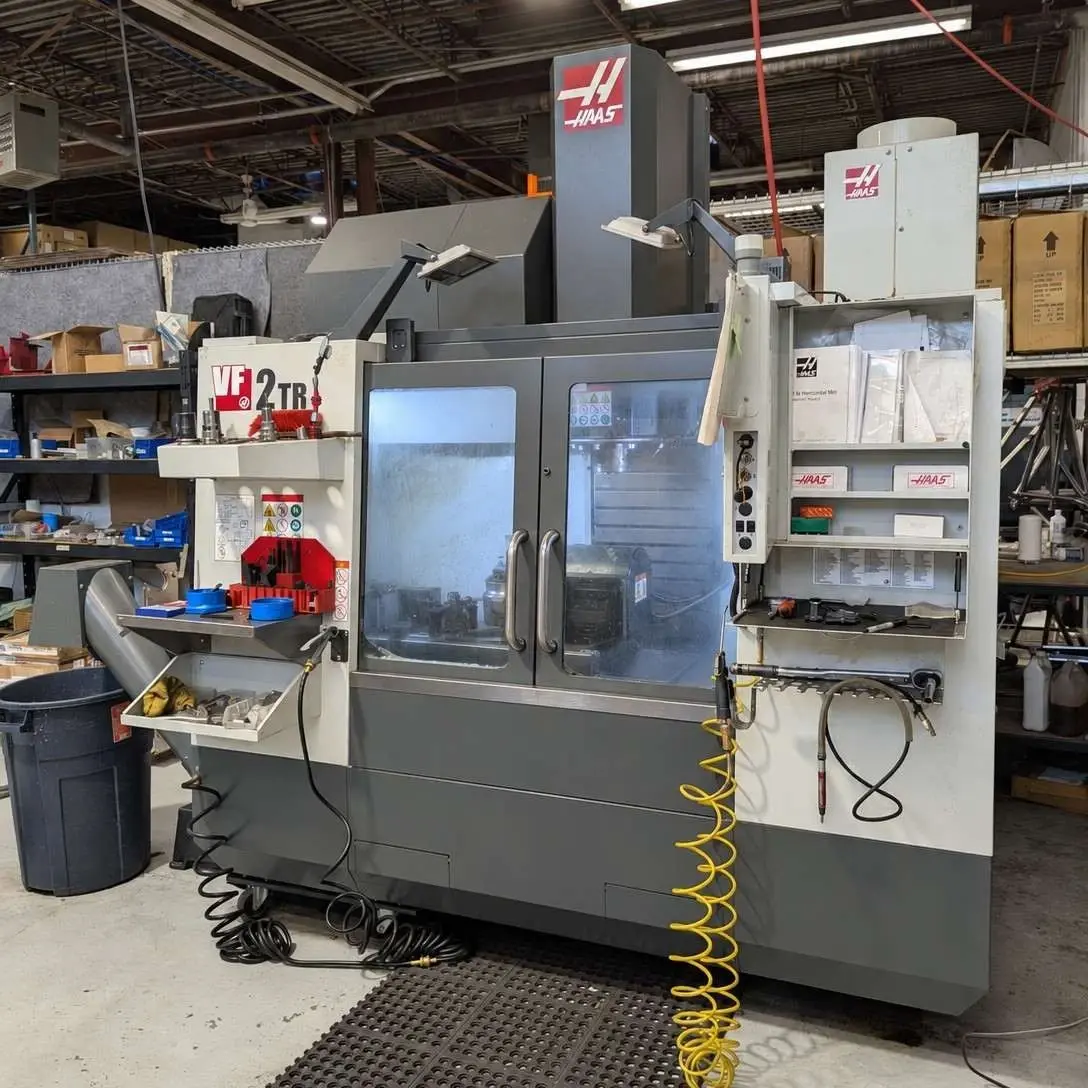

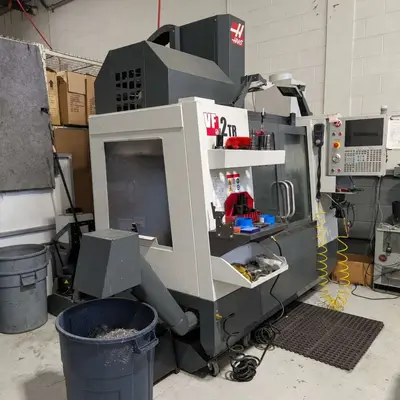

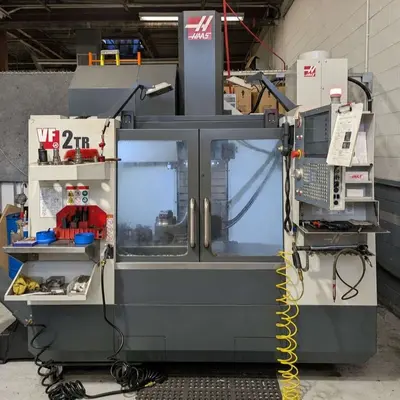

This 2018 Haas VF-2TR 5-axis vertical machining center pairs a 2019 TRT-160 trunnion rotary table with 300 PSI through-spindle coolant and Renishaw wireless probing. It offers 30" x 16" x 20" of X/Y/Z travel, a 30 HP CT-40 spindle reaching 8,100 RPM, and a 30+1 side-mount tool changer.
Rapid Traverse (X/Y/Z): 1,000 IPM
Table Size: 36" x 14"
Tool Changer Type: Side-Mount
Rotary Table Max Speed: 104°/sec
Rotary Table Max Torque: 112 ft-lb
Platter Diameter: 6.3"
Max Weight on Platter: 55 lbs
Max Part Swing: 10.5"

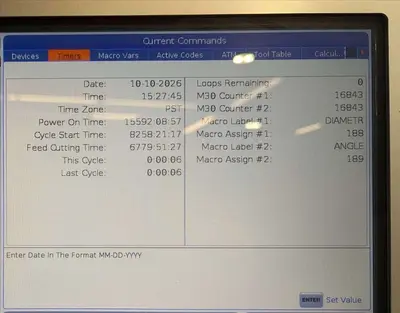

Approximately 15,592 Power On Hours
Approximately 6,779 Feed Cutting Hours
Haas Next Generation Control

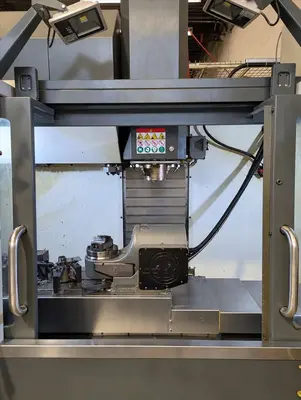

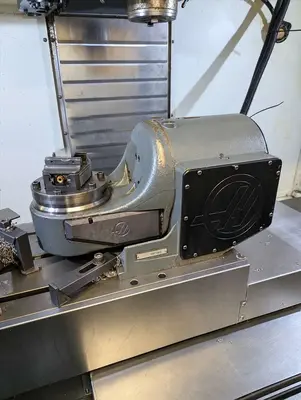

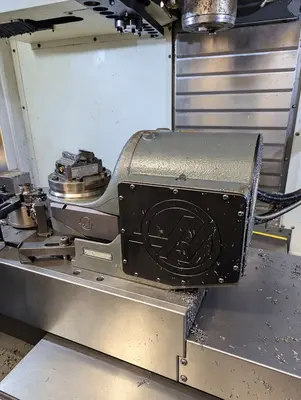

2019 TRT-160 2-Axis Trunnion Rotary Table
T-Slotted Table
Lang 47155 Makro Grip Vise
55 Gal Flood Coolant System
300 PSI Through-Spindle Coolant
(10) Pull Studs for Through-Tool Coolant
Programmable Coolant Nozzle
Renishaw Wireless Intuitive Probing System
Rigid Tapping
Automatic Chip Auger
Marcus MT45A1 Transformer
CT-40 Tool Holders
This 2018 Haas VF-2TR 5-axis vertical machining center pairs a 2019 TRT-160 trunnion rotary table with 300 PSI through-spindle coolant and Renishaw wireless probing. It offers 30" x 16" x 20" of X/Y/Z travel, a 30 HP CT-40 spindle reaching 8,100 RPM, and a 30+1 side-mount tool changer.
Imperial
| X | 30" |
| Y | 16" |
| Z | 20" |
| # Axis | 5 |
| Power | 30 hp |
| RPM | 8,100 RPM |
| # ATC | 24 |
| Taper | CAT 40 |
| Control | CNC (HAAS) |
Rapid Traverse (X/Y/Z): 1,000 IPM
Table Size: 36" x 14"
Tool Changer Type: Side-Mount
Rotary Table Max Speed: 104°/sec
Rotary Table Max Torque: 112 ft-lb
Platter Diameter: 6.3"
Max Weight on Platter: 55 lbs
Max Part Swing: 10.5"
Approximately 15,592 Power On Hours
Approximately 6,779 Feed Cutting Hours
Haas Next Generation Control
2019 TRT-160 2-Axis Trunnion Rotary Table
T-Slotted Table
Lang 47155 Makro Grip Vise
55 Gal Flood Coolant System
300 PSI Through-Spindle Coolant
(10) Pull Studs for Through-Tool Coolant
Programmable Coolant Nozzle
Renishaw Wireless Intuitive Probing System
Rigid Tapping
Automatic Chip Auger
Marcus MT45A1 Transformer
CT-40 Tool Holders
