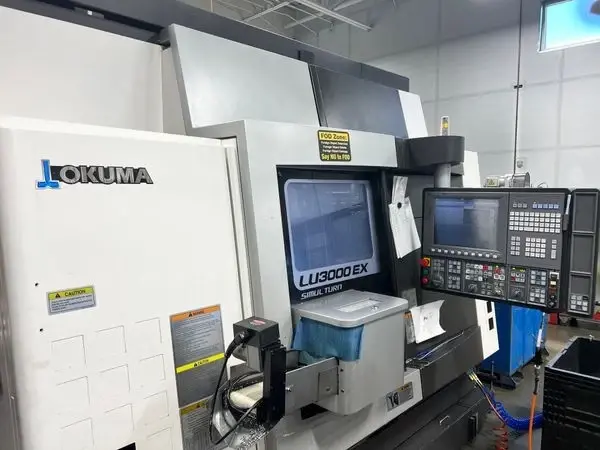

2021 Okuma LU3000EXMY CNC Lathe with Y-Axis and Chip Blaster
Have one to sell?
ConditionUsed
1 available
This 2021 Okuma LU3000EXMY CNC lathe has live tooling with a Y-axis, a 10" chuck, and a 5,000 RPM big bore A2-8 spindle with 3" bar capacity. It comes with a tailstock, a 1,000 PSI Chip Blaster, a ChipChiller, a parts catcher, and a tool presetter, with 22.84" of max swing.
X-Axis Travel: 10.24"
Upper Z-Axis Travel: 26.97"
Lower Z-Axis Travel: 24.21"
Y-Axis Travel: 2" +/-
Spindle Nose: JIS A2-8
Milling Head Speed: 4,500 RPM
Tailstock Quill: Live Quill, MT No. 4
Okuma OSP Control
Y-Axis
Y-Axis Off-Center Turning Function
Big Bore Spindle
Tool Presetter
Bar Feeder
Bar Feeder Interface, Universal Type, Hardwired
LU-3000EX Parts Catcher
Chip Conveyor, Side Discharge, Hinge, High (2SC 600)
Chip Blaster: 2-10.8 GPM, Dual Outlet, Variable Speed, 1,000 PSI, Dual Bag Filter, 100 Gallon Reservoir
34,000 BTU ChipChiller
High Pressure Coolant Prep, 1,000 PSI
Shower Coolant, Type B and Splash Gun, Coolant Combo
Air Blow, Chuck, Left (Main)
User Task II, I/O Variables (Lathe)
Spare M-Codes, 8 Sets
Transformer 50/60Hz Multitap Floor
This 2021 Okuma LU3000EXMY CNC lathe has live tooling with a Y-axis, a 10" chuck, and a 5,000 RPM big bore A2-8 spindle with 3" bar capacity. It comes with a tailstock, a 1,000 PSI Chip Blaster, a ChipChiller, a parts catcher, and a tool presetter, with 22.84" of max swing.
Imperial
| # Axis | 5 |
| Swing | 22.8" |
| Machining Length | 37.4" |
| Chuck Size | 10" |
| Bar Capacity | 3.15" |
| Power | 30 hp |
| Max RPM | 5,000 RPM |
| Turning Dia | 13.39" |
| Tailstock | Yes |
| Control | CNC (OKUMA) |
X-Axis Travel: 10.24"
Upper Z-Axis Travel: 26.97"
Lower Z-Axis Travel: 24.21"
Y-Axis Travel: 2" +/-
Spindle Nose: JIS A2-8
Milling Head Speed: 4,500 RPM
Tailstock Quill: Live Quill, MT No. 4
Okuma OSP Control
Y-Axis
Y-Axis Off-Center Turning Function
Big Bore Spindle
Tool Presetter
Bar Feeder
Bar Feeder Interface, Universal Type, Hardwired
LU-3000EX Parts Catcher
Chip Conveyor, Side Discharge, Hinge, High (2SC 600)
Chip Blaster: 2-10.8 GPM, Dual Outlet, Variable Speed, 1,000 PSI, Dual Bag Filter, 100 Gallon Reservoir
34,000 BTU ChipChiller
High Pressure Coolant Prep, 1,000 PSI
Shower Coolant, Type B and Splash Gun, Coolant Combo
Air Blow, Chuck, Left (Main)
User Task II, I/O Variables (Lathe)
Spare M-Codes, 8 Sets
Transformer 50/60Hz Multitap Floor
