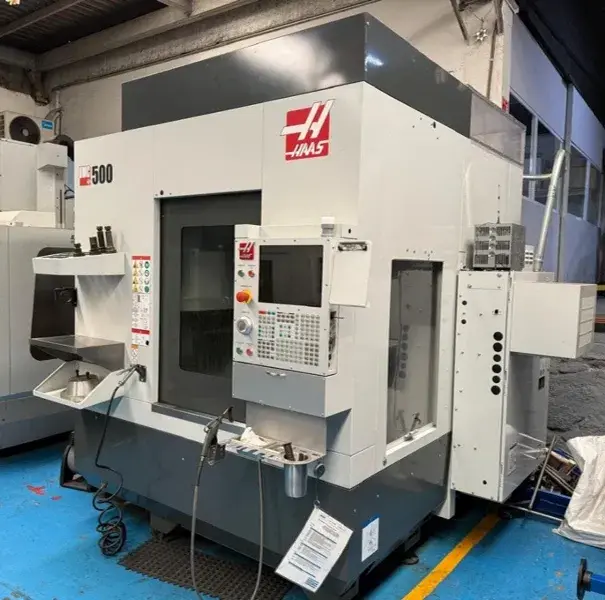

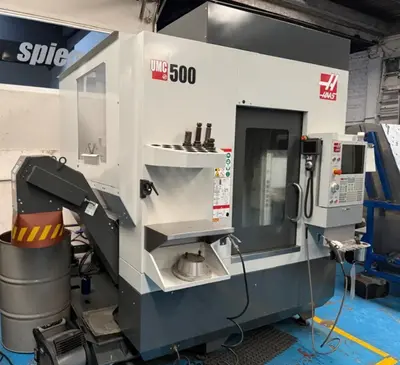

2024 Haas UMC-500 5-Axis Vertical Machining Center with TSC
Have one to sell?
ConditionUsed
1 available

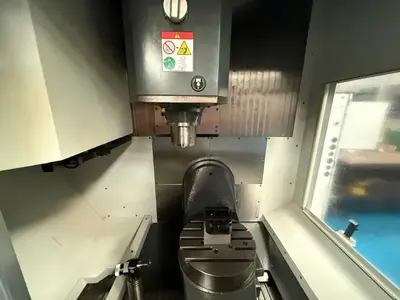

This 2024 Haas UMC-500 5-axis vertical machining center comes with 300 PSI through spindle coolant, the Haas WIPS wireless probing system, and rotary scales on the B and C axes, with approximately 585 spindle hours. It offers 24" x 16" x 16" of X, Y, and Z travel, a 30 HP vector drive spindle that runs to 8,100 RPM, a CT-40 taper, and a 30+1 side mount tool changer.

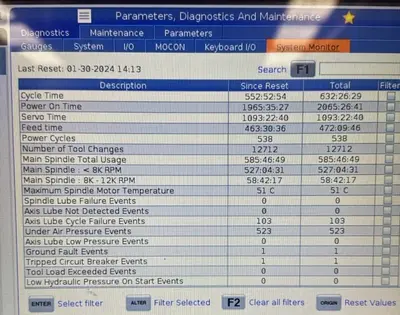

Approximately 585 Spindle Hours
Approximately 2,065 Power On Hours
Coolant Tank Capacity: 54.95 gal
Coolant Pump: 1 HP
Voltage: 220V, 3 Phase
Through Spindle Coolant (300 PSI)
Wireless Intuitive Probing System (WIPS) with Macros, G50, and G68
Rotary Scales on B and C Axes
Belt Type Chip Conveyor
High Speed Machining
4 and 5 Axis Codes (G254 and G234)
Rigid Tapping
Calibration Tool
Side Mount Tool Changer
Early Power Failure Detection Module
Remote Jog Handle with Touchscreen
Electrical Cabinet Cooling Unit
Machine Top Cover
Touchscreen Control
1GB Memory
Ethernet Interface
USB Port
WiFi Connection
Haas Connect
Haas Drop
M130 Media Display
Safe Run Function
Second Home Position Button
This 2024 Haas UMC-500 5-axis vertical machining center comes with 300 PSI through spindle coolant, the Haas WIPS wireless probing system, and rotary scales on the B and C axes, with approximately 585 spindle hours. It offers 24" x 16" x 16" of X, Y, and Z travel, a 30 HP vector drive spindle that runs to 8,100 RPM, a CT-40 taper, and a 30+1 side mount tool changer.
Imperial
| X | 24" |
| Y | 16" |
| Z | 16" |
| Power | 30 hp |
| RPM | 8,100 RPM |
| # ATC | 30 |
| Taper | CT-40 |
| # Axis | 5 |
| Control | CNC (HAAS) |
Approximately 585 Spindle Hours
Approximately 2,065 Power On Hours
Coolant Tank Capacity: 54.95 gal
Coolant Pump: 1 HP
Voltage: 220V, 3 Phase
Through Spindle Coolant (300 PSI)
Wireless Intuitive Probing System (WIPS) with Macros, G50, and G68
Rotary Scales on B and C Axes
Belt Type Chip Conveyor
High Speed Machining
4 and 5 Axis Codes (G254 and G234)
Rigid Tapping
Calibration Tool
Side Mount Tool Changer
Early Power Failure Detection Module
Remote Jog Handle with Touchscreen
Electrical Cabinet Cooling Unit
Machine Top Cover
Touchscreen Control
1GB Memory
Ethernet Interface
USB Port
WiFi Connection
Haas Connect
Haas Drop
M130 Media Display
Safe Run Function
Second Home Position Button
