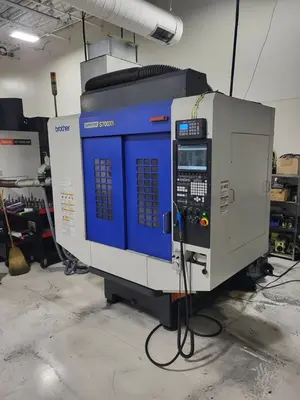

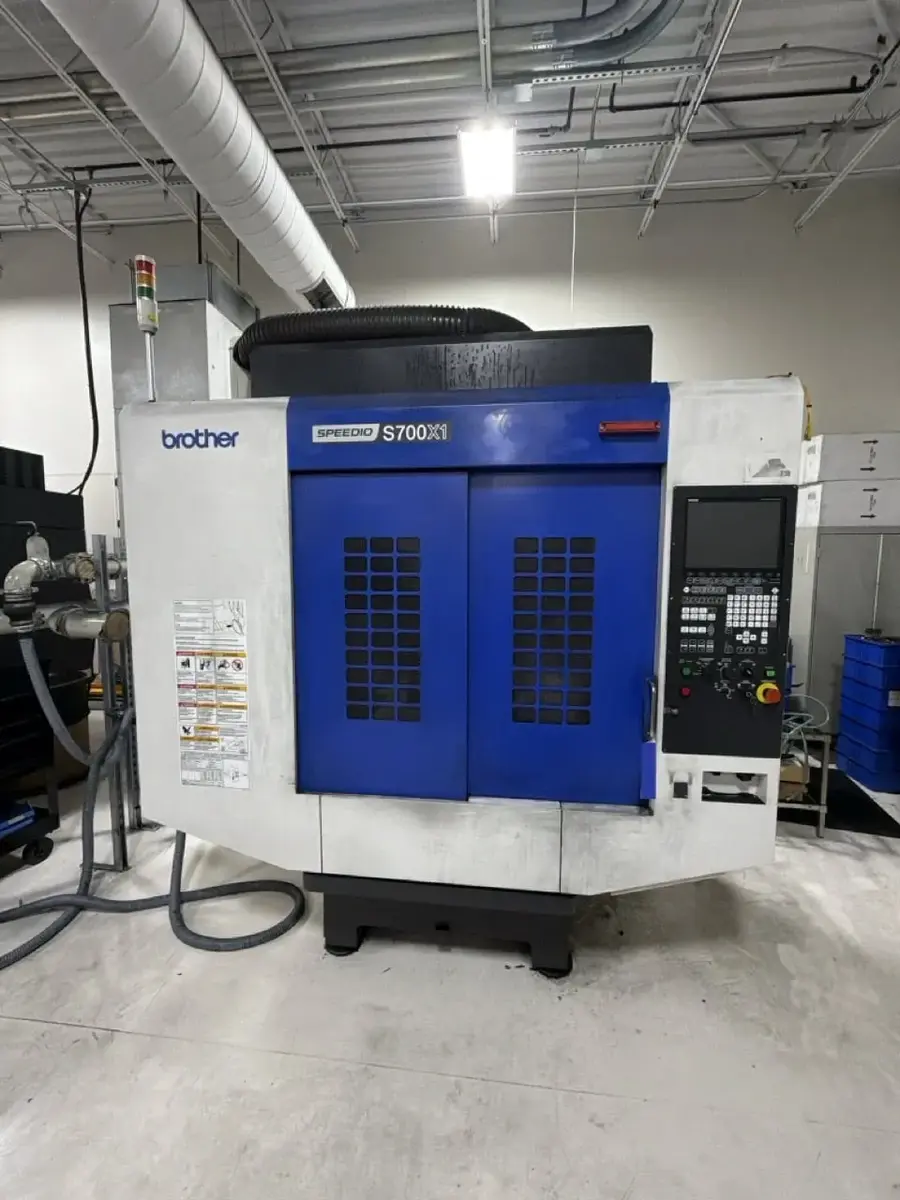

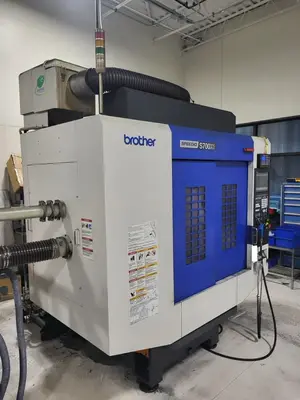

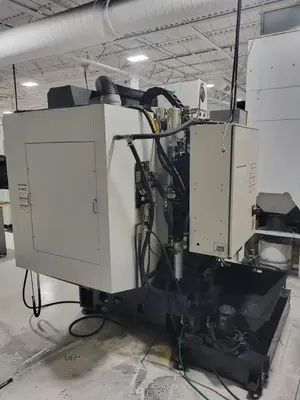

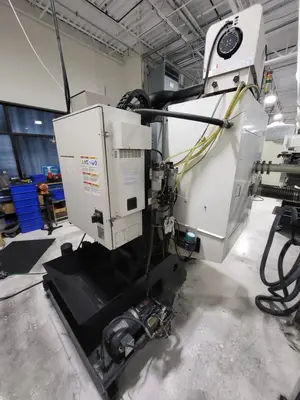

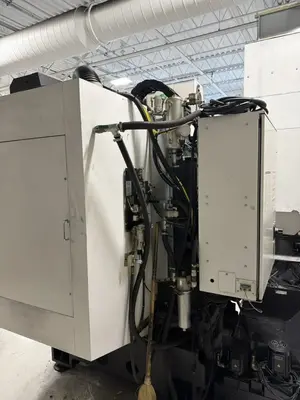

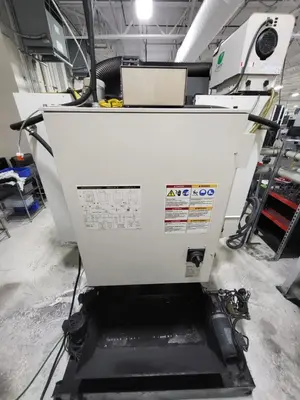

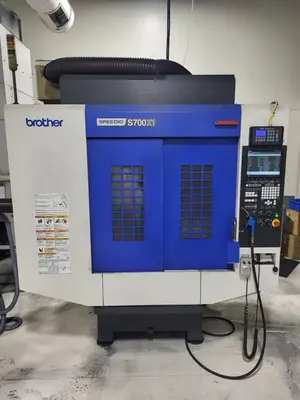

2016 Brother Speedio S700X1 5-Axis Vertical Machining Center
Have one to sell?
ConditionUsed
1 available
This 2016 Brother Speedio S700X1 5-axis vertical machining center carries a Yukiwa CNC tilting rotary table, Blum probing, and a 21 tool changer with a 0.8 second tool to tool time. It offers 27.6" x 15.7" x 11.8" of travel, a 10,000 RPM BT-30 direct drive spindle at 10 HP, and 1,969 IPM rapids.
Table Size: 31.5" x 15.7"
Spindle Nose to Table: 5.1" to 16.9"
Max Table Load: 1,323 lbs
Rapid Traverse X/Y/Z: 1,969 IPM
Cutting Feedrate: 0 to 787 IPM
Tool Change Time (Tool to Tool): 0.8 Sec
Power Requirement: 220V / 3 Phase
Approximate Dimensions: 82" x 79" x 90"
Approximate Weight: 6,200 lbs

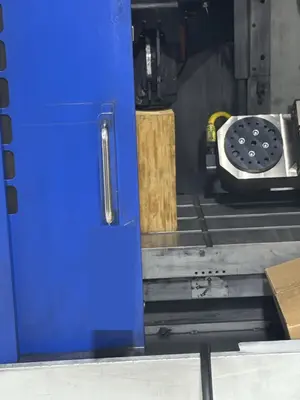

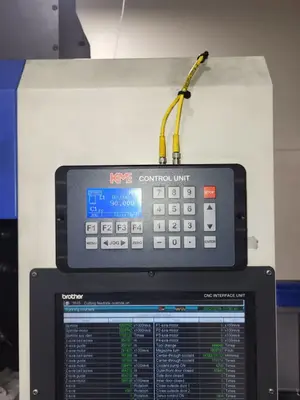

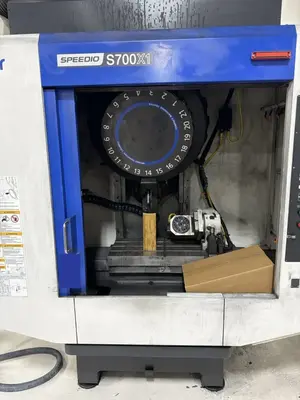

Yukiwa CNC Tilting Rotary Table
Blum Probing
Direct Drive Spindle

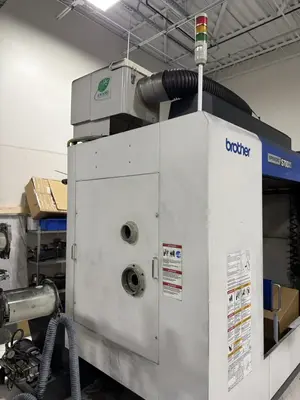

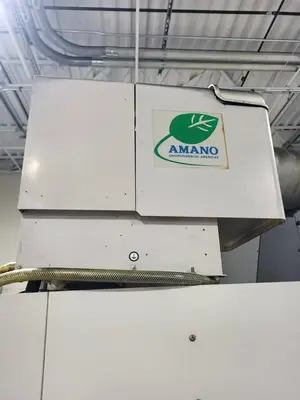

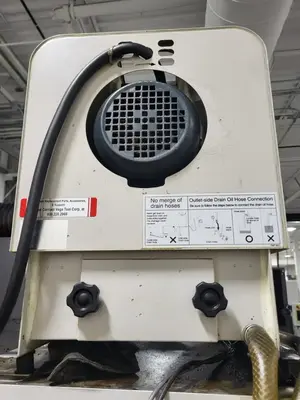

Mistria MZ-10/15 Mist Collector
This 2016 Brother Speedio S700X1 5-axis vertical machining center carries a Yukiwa CNC tilting rotary table, Blum probing, and a 21 tool changer with a 0.8 second tool to tool time. It offers 27.6" x 15.7" x 11.8" of travel, a 10,000 RPM BT-30 direct drive spindle at 10 HP, and 1,969 IPM rapids.
Imperial
| X | 27.6" |
| Y | 15.7" |
| Z | 11.8" |
| Power | 13.4 hp |
| RPM | 10,000 RPM |
| # ATC | 21 |
| Taper | BT-30 |
| Table-W | 15.7" |
| Table-L | 31.5" |
| # Axis | 5 |

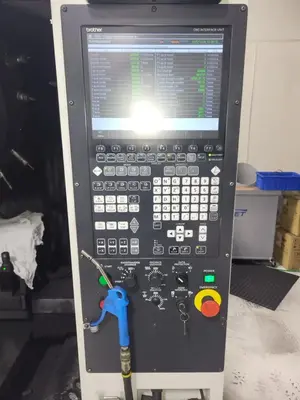

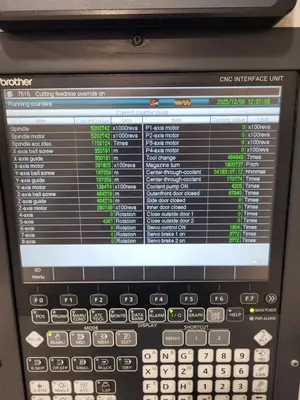

| Control | CNC (BROTHER) |
Table Size: 31.5" x 15.7"
Spindle Nose to Table: 5.1" to 16.9"
Max Table Load: 1,323 lbs
Rapid Traverse X/Y/Z: 1,969 IPM
Cutting Feedrate: 0 to 787 IPM
Tool Change Time (Tool to Tool): 0.8 Sec
Power Requirement: 220V / 3 Phase
Approximate Dimensions: 82" x 79" x 90"
Approximate Weight: 6,200 lbs
Yukiwa CNC Tilting Rotary Table
Blum Probing
Direct Drive Spindle
Mistria MZ-10/15 Mist Collector
