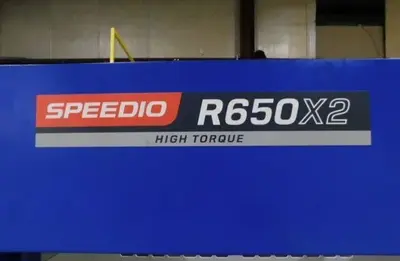

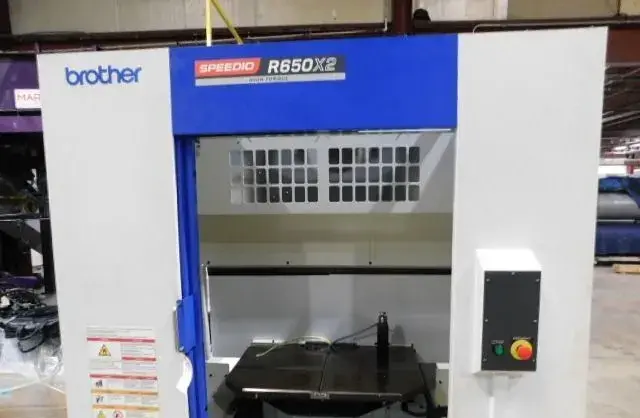

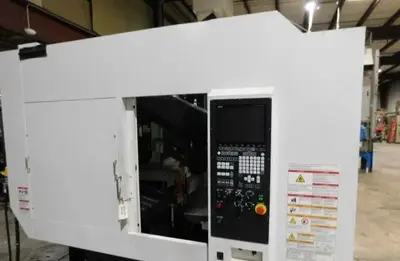

2022 Brother Speedio R650X2 Drilling and Tapping Center
Have one to sell?
ConditionUsed
1 available
This 2022 Brother Speedio R650X2 drilling and tapping center runs two rotary pallets measuring 31.5" x 15.7" with a 3.4 second index time, paired with a 22-tool ATC and a CT-30 Big Plus spindle. The 10,000 RPM spindle taps at up to 6,000 RPM, with 25.6" of X travel, 12" of Z travel, and 1,969 IPM rapids.
X Travel: 25.6"
Z Travel: 12"
Pallet Size: 31.5" x 15.7"
Pallet Indexing Time: 3.4 Seconds
Spindle Speed: 10,000 RPM
Max Tapping Speed: 6,000 RPM
Spindle Power: 17/11.7 HP High Torque
Taper: CT-30 Big Plus
ATC Capacity: 22
Tool to Tool: 0.8 Seconds
Chip to Chip: 1.6 Seconds
Rapids: 1,969 IPM (X, Y, and Z)
Cutting Feed Rate: 0.04 to 1,181 IPM
Table Top to Spindle Nose: 9.8" to 21.8"
Max Jig Height: 16.5"
Approximate Weight: 7,716 lbs
Approximate Dimensions: 74.7" x 135.7" x 106.1"

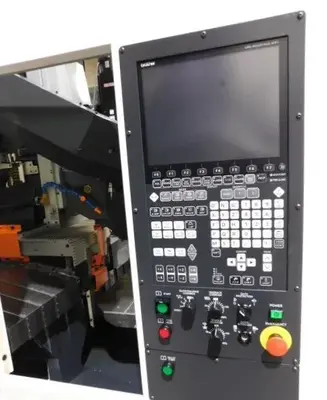

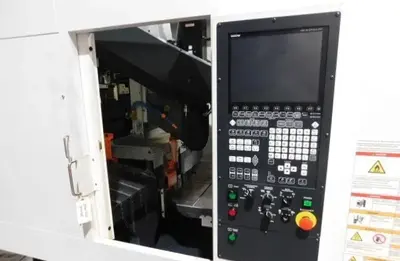

Brother CNC-C00 (WX) Control with PLC

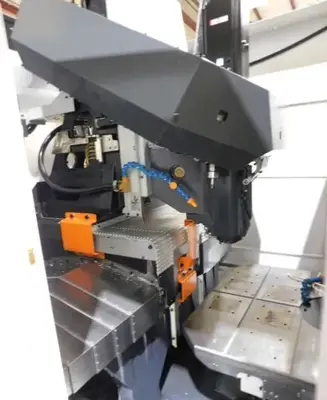

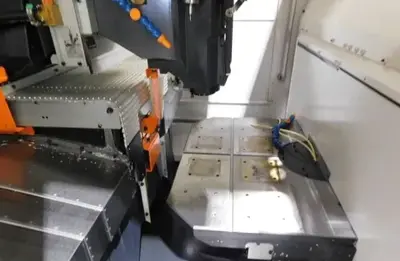

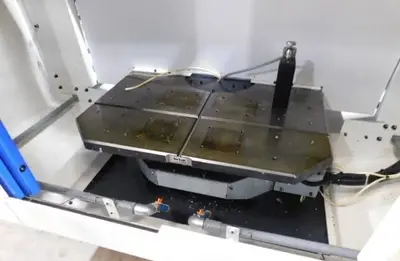

Dual Rotary Type Pallets

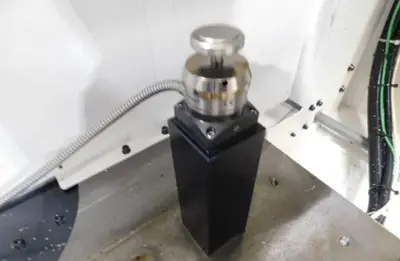

Blum ZX Speed Wired with 5.91" Riser
Coolant Through Spindle Prepped

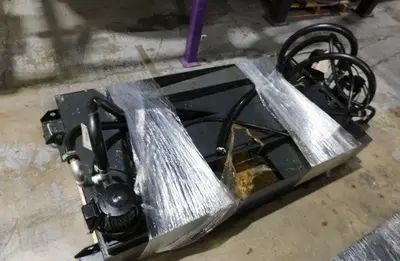

Coolant System with 52.83 Gallon Tank

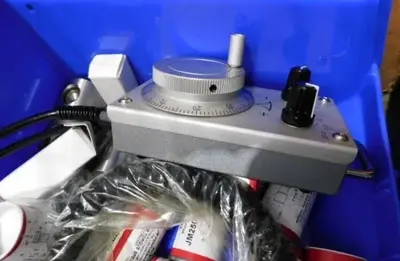

Manual Pulse Generator
3-Stage Light
Work Light
Spindle Speed Override

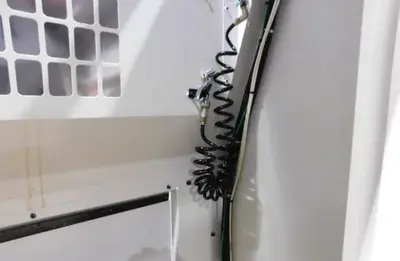

Shower Gun
Top Cover
Door Interlock

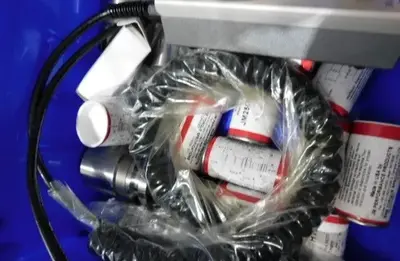

(16) CT-30 Big Plus Tool Holders: (6) ER32 and (10) Straight Shank from 5/16" to 1"
This 2022 Brother Speedio R650X2 drilling and tapping center runs two rotary pallets measuring 31.5" x 15.7" with a 3.4 second index time, paired with a 22-tool ATC and a CT-30 Big Plus spindle. The 10,000 RPM spindle taps at up to 6,000 RPM, with 25.6" of X travel, 12" of Z travel, and 1,969 IPM rapids.
Imperial
| X | 25.6" |
| Y | 16.7" |
| Z | 12" |
| Power | 17 hp |
| RPM | 10,000 RPM |
| # ATC | 40 |
| Taper | CAT 30 |
X Travel: 25.6"
Z Travel: 12"
Pallet Size: 31.5" x 15.7"
Pallet Indexing Time: 3.4 Seconds
Spindle Speed: 10,000 RPM
Max Tapping Speed: 6,000 RPM
Spindle Power: 17/11.7 HP High Torque
Taper: CT-30 Big Plus
ATC Capacity: 22
Tool to Tool: 0.8 Seconds
Chip to Chip: 1.6 Seconds
Rapids: 1,969 IPM (X, Y, and Z)
Cutting Feed Rate: 0.04 to 1,181 IPM
Table Top to Spindle Nose: 9.8" to 21.8"
Max Jig Height: 16.5"
Approximate Weight: 7,716 lbs
Approximate Dimensions: 74.7" x 135.7" x 106.1"
Brother CNC-C00 (WX) Control with PLC
Dual Rotary Type Pallets
Blum ZX Speed Wired with 5.91" Riser
Coolant Through Spindle Prepped
Coolant System with 52.83 Gallon Tank
Manual Pulse Generator
3-Stage Light
Work Light
Spindle Speed Override
Shower Gun
Top Cover
Door Interlock
(16) CT-30 Big Plus Tool Holders: (6) ER32 and (10) Straight Shank from 5/16" to 1"
