2015 Haas VF-4 Vertical Machining Center with 24+1 ATC
Have one to sell?
ConditionUsed
1 available

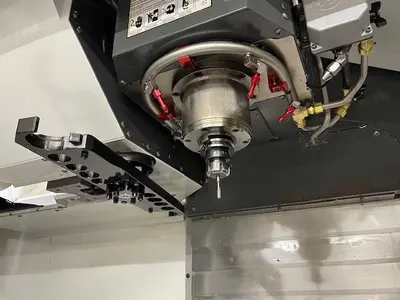

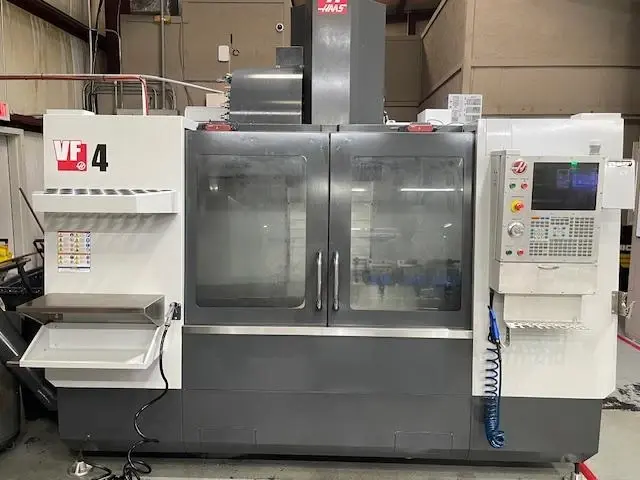

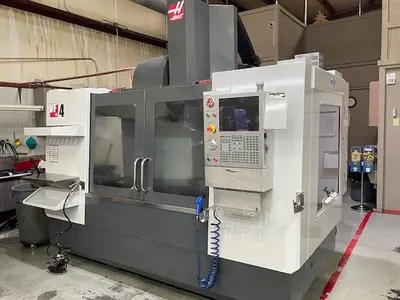

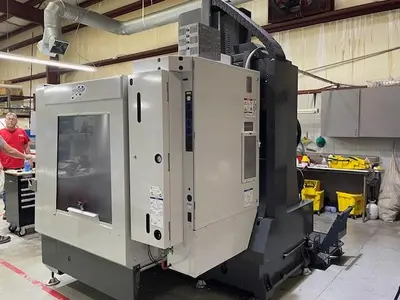

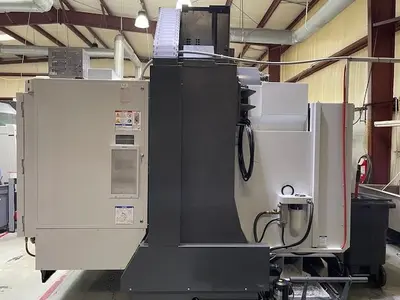

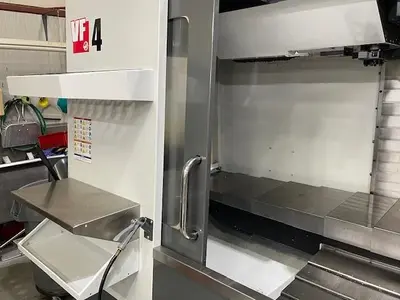

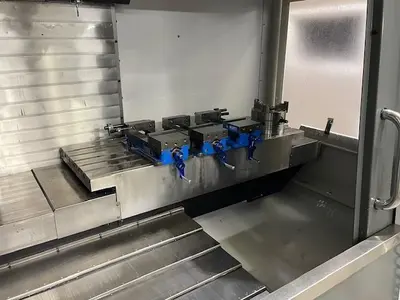

This 2015 Haas VF-4 vertical machining center has a 24+1 side mount tool changer and programmable coolant, with 50" x 20" x 25" travels over an 18" x 52" table. Its 30 HP CT-40 spindle runs up to 8,100 RPM, and the table carries up to 3,500 lbs.
Max Table Load: 3,500 lbs
Spindle Nose to Table: 4" Min, 29" Max
Approximately 1,802 Cycle Start Hours
Approximately 1,456 Feed Cutting Hours

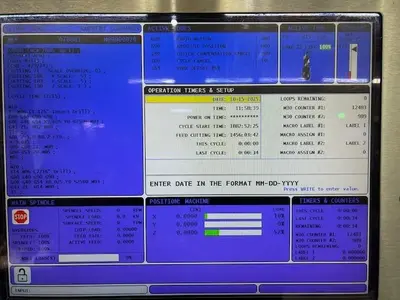

Haas CNC Control with 15" Color LCD Monitor
Side Mount Tool Changer
Programmable Coolant (P-Cool)
55-Gallon Flood Coolant System
Chip Auger
Rigid Tapping
USB Port
Memory Lock Keyswitch
This 2015 Haas VF-4 vertical machining center has a 24+1 side mount tool changer and programmable coolant, with 50" x 20" x 25" travels over an 18" x 52" table. Its 30 HP CT-40 spindle runs up to 8,100 RPM, and the table carries up to 3,500 lbs.
Imperial
| X | 50" |
| Y | 20" |
| Z | 25" |
| Power | 30 hp |
| RPM | 8,100 RPM |
| # ATC | 24 |
| Taper | CAT 40 |
| Table-W | 18" |
| Table-L | 52" |
| # Axis | 3 |
| Control | CNC (HAAS) |
Max Table Load: 3,500 lbs
Spindle Nose to Table: 4" Min, 29" Max
Approximately 1,802 Cycle Start Hours
Approximately 1,456 Feed Cutting Hours
Haas CNC Control with 15" Color LCD Monitor
Side Mount Tool Changer
Programmable Coolant (P-Cool)
55-Gallon Flood Coolant System
Chip Auger
Rigid Tapping
USB Port
Memory Lock Keyswitch
