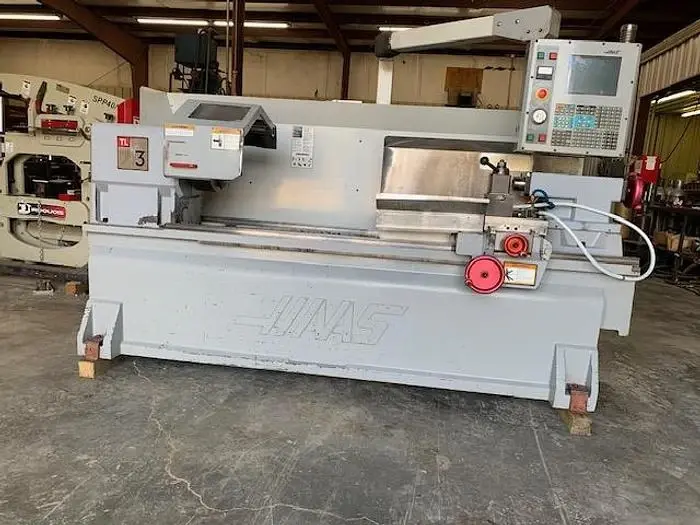

2004 Haas TL-3 CNC Lathe
Have one to sell?
ConditionUsed
1 available
This 2004 Haas TL-3 CNC lathe has a 20" swing and 60" between centers, with a tailstock and a 4-position quick change tool post. Its 18 HP geared spindle reaches 1,800 RPM through a 3.5" bore and A2-6 spindle nose, and carries a 12" manual 3-jaw chuck.
Swing Over Cross Slide: 13"
Spindle Bore: 3.5"
Spindle Nose: A2-6
X-Axis Travel: 16"
Z-Axis Travel: 60"
Chuck Thru Hole: 3"
Haas 2-Axis CNC Control
Manual 3-Jaw Chuck
4-Position Quick Change Tool Post
Gearbox
Manual Handwheels
Coolant System with Tank and Pump
Chuck Guard
Work Light
This 2004 Haas TL-3 CNC lathe has a 20" swing and 60" between centers, with a tailstock and a 4-position quick change tool post. Its 18 HP geared spindle reaches 1,800 RPM through a 3.5" bore and A2-6 spindle nose, and carries a 12" manual 3-jaw chuck.
Imperial
| Swing | 20" |
| Machining Length | 60" |
| # Axis | 2 |
| Chuck Size | 12" |
| Power | 18 hp |
| Max RPM | 1,800 RPM |
| Turning Dia | 20" |
| Tailstock | No |
| Control | CNC (HAAS) |
Swing Over Cross Slide: 13"
Spindle Bore: 3.5"
Spindle Nose: A2-6
X-Axis Travel: 16"
Z-Axis Travel: 60"
Chuck Thru Hole: 3"
Haas 2-Axis CNC Control
Manual 3-Jaw Chuck
4-Position Quick Change Tool Post
Gearbox
Manual Handwheels
Coolant System with Tank and Pump
Chuck Guard
Work Light
