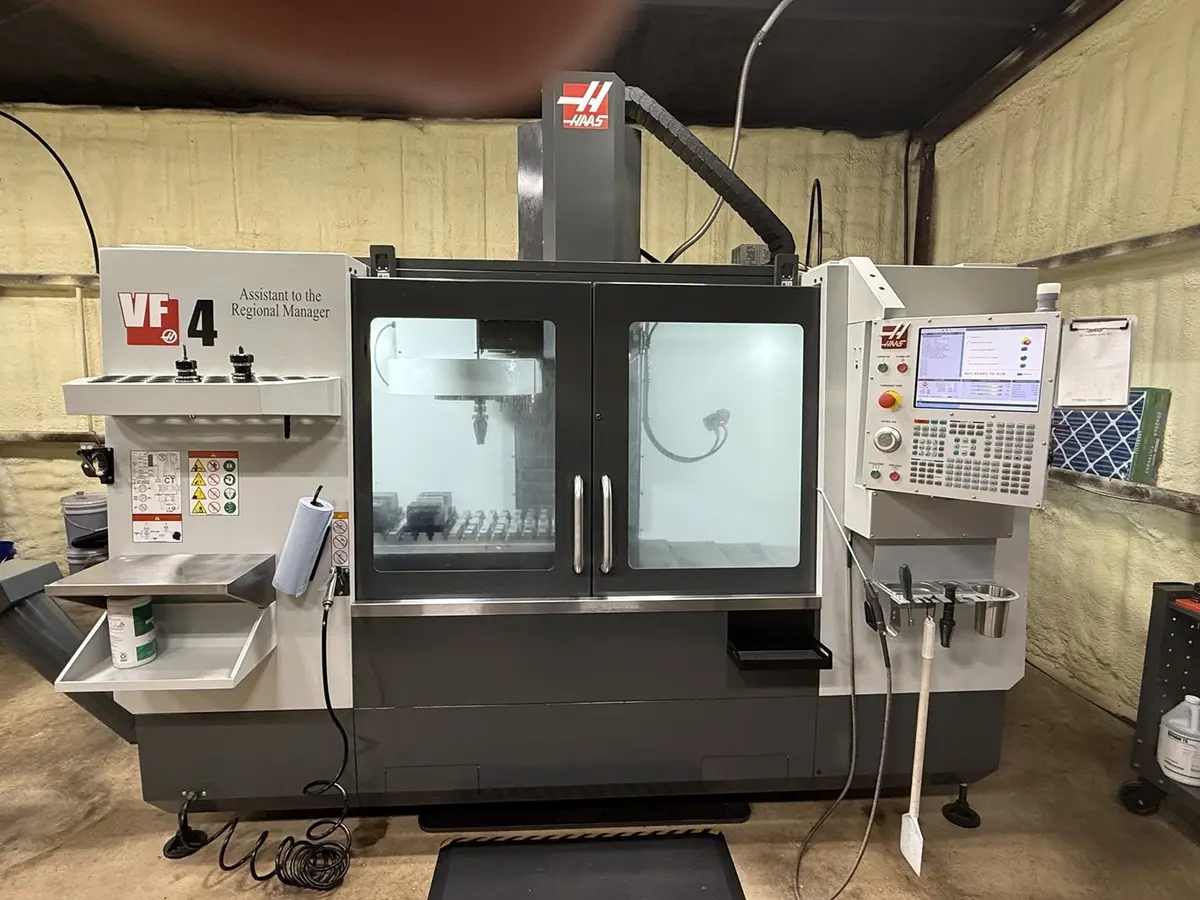

2023 Haas VF-4 Vertical Machining Center with WIPS Probing
Have one to sell?
ConditionUsed
1 available
This 2023 Haas VF-4 vertical machining center comes with WIPS Renishaw probing and 300 PSI through spindle coolant, and has 50" x 20" x 25" travels over a 19.5" x 52" table. A 30 HP, 8,100 RPM 40-taper spindle works with a 20-position tool changer and high speed machining, and the table is rated for up to 3,500 lbs.
Max Table Load: 3,500 lbs
Spindle Nose to Table: 4.2" Min, 29.5" Max

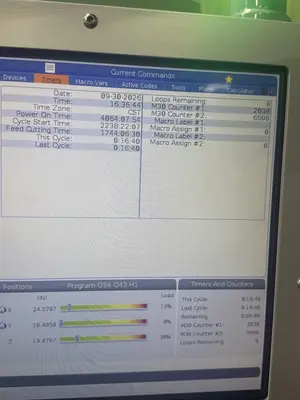

Approximately 4,064 Power On Hours
Approximately 2,238 Cycle Start Hours
Approximately 1,744 Feed Cutting Hours

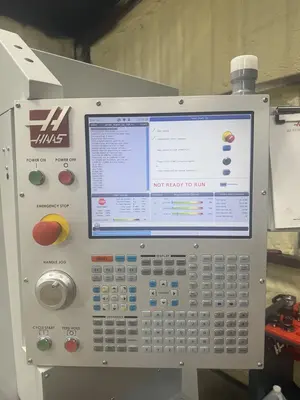

Haas 3-Axis CNC Control with 15" Color LCD Monitor
Control Touch Screen
Through Spindle Coolant (300 PSI)
WIPS Wireless Intuitive Probing System (Renishaw)
High Speed Machining
Chip Auger
Rigid Tapping
User-Definable Macros
Coordinate Rotation and Scaling
Visual Part Programming System
1GB Program Memory
Media Display M-Code 130
HaasConnect
HaasDrop
Ethernet Interface
WiFi
Safe Run
Early Power Failure Detection Module
Worklight
Convenience Package
This 2023 Haas VF-4 vertical machining center comes with WIPS Renishaw probing and 300 PSI through spindle coolant, and has 50" x 20" x 25" travels over a 19.5" x 52" table. A 30 HP, 8,100 RPM 40-taper spindle works with a 20-position tool changer and high speed machining, and the table is rated for up to 3,500 lbs.
Imperial
| X | 50" |
| Y | 20" |
| Z | 25" |
| Power | 30 hp |
| RPM | 8,100 RPM |
| # ATC | 20 |
| Taper | CT or BT 40 |
| Table-W | 19.5" |
| Table-L | 52" |
| # Axis | 3 |
| Control | CNC (HAAS) |
Max Table Load: 3,500 lbs
Spindle Nose to Table: 4.2" Min, 29.5" Max
Approximately 4,064 Power On Hours
Approximately 2,238 Cycle Start Hours
Approximately 1,744 Feed Cutting Hours
Haas 3-Axis CNC Control with 15" Color LCD Monitor
Control Touch Screen
Through Spindle Coolant (300 PSI)
WIPS Wireless Intuitive Probing System (Renishaw)
High Speed Machining
Chip Auger
Rigid Tapping
User-Definable Macros
Coordinate Rotation and Scaling
Visual Part Programming System
1GB Program Memory
Media Display M-Code 130
HaasConnect
HaasDrop
Ethernet Interface
WiFi
Safe Run
Early Power Failure Detection Module
Worklight
Convenience Package
