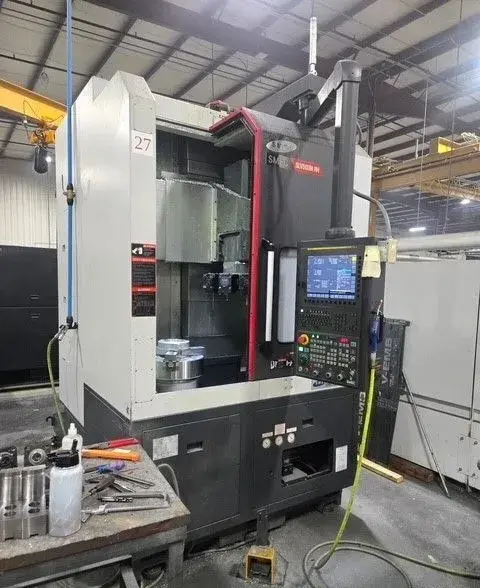

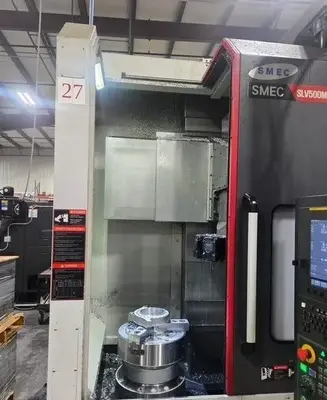

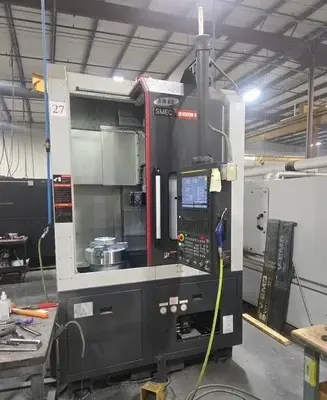

2023 SMEC SLV 500MR Vertical Turning Lathe with Live Tooling
Have one to sell?
ConditionUsed
1 available
This 2023 SMEC SLV 500MR vertical turning lathe has a 12-station BMT65 servo turret with live tooling at 5,000 RPM and 7.4 HP, plus C-axis capability and a 12" chuck on an A2-8 spindle nose. It offers 27.56" of swing over the bed, a 19.68" max turning diameter, and 18.31" max turning length, driven by a 34.8 HP spindle at up to 3,000 RPM with 775.2 ft-lbs of torque.
Swing Over Cross Slide: 15.75"
Max Turning Diameter: 19.68"
Max Turning Length: 18.31"

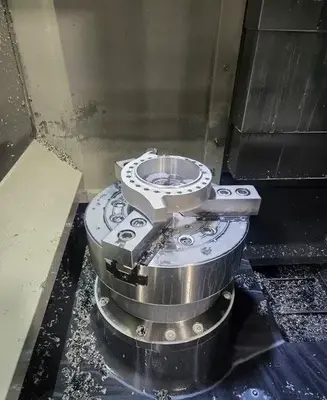

Chuck Size: 12"
Spindle Nose: A2-8
Main Spindle Motor (S3 25% / S3 / Cont.): 34.8 / 29.5 / 24.8 HP
Spindle Speed: 3,000 RPM
Spindle Bearing Diameter (Front): 5.12"
Spindle Torque (S3 25%): 775.2 ft-lbs
C-Axis Minimum Programmable Angle: 0.001°
X-Axis Travel: 12.40"
Z-Axis Travel: 19.49"
Rapid Traverse (X / Z): 787 / 787 IPM
Guideways (X / Z): Box Way

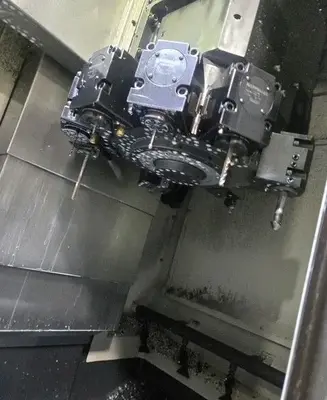

Number of Tool Stations: 12 (Servo, BMT65)
Turret Indexing Time (1 Station): 0.2 Seconds
Curvic Coupling: 3-Piece Hydraulic Clamp / Servo Index
Coupling Clamp Force: 9,965 lbs
Tool Size (Turning and Facing): 1" Wedge Clamp
Max Boring Bar Diameter: 2"
Rotary Tool Speed: 5,000 RPM
Rotary Tool Spindle Motor (Max / Cont.): 7.4 / 5 HP
Rotary Tool Spindle Torque: 25.8 ft-lbs
Power Consumption: 45 kVA
Voltage: 220V ±10%, 60 Hz, 3 Phase
Approximate Weight: 15,873 lbs
Approximate Floor Space (L x W x H, Without Chip Conveyor): 65.7" x 79.72" x 117.6"

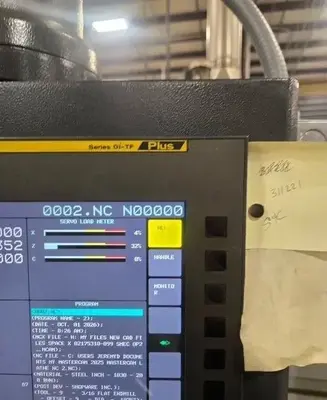

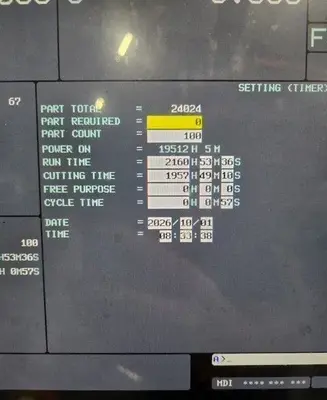

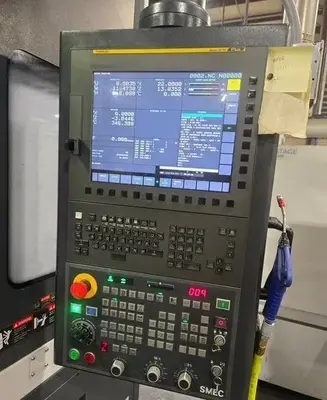

Fanuc 0i-TF Plus Control
15" TFT LCD Color Monitor
Live Tooling
C-Axis

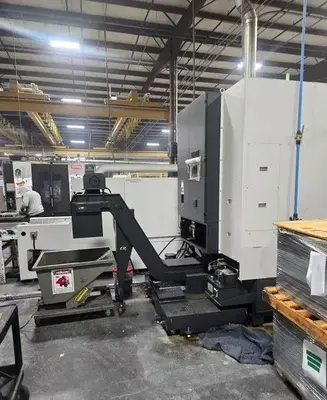

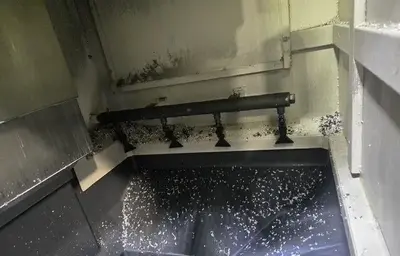

Chip Conveyor
This 2023 SMEC SLV 500MR vertical turning lathe has a 12-station BMT65 servo turret with live tooling at 5,000 RPM and 7.4 HP, plus C-axis capability and a 12" chuck on an A2-8 spindle nose. It offers 27.56" of swing over the bed, a 19.68" max turning diameter, and 18.31" max turning length, driven by a 34.8 HP spindle at up to 3,000 RPM with 775.2 ft-lbs of torque.
Imperial
| Swing | 27.56" |
| Chuck Size | 12" |
| Power | 24.8 hp |
| Max RPM | 3,000 RPM |
| Turning Dia | 19.68" |
| Live Tooling | 'Yes' |
| Control | CNC (Fanuc) |
Swing Over Cross Slide: 15.75"
Max Turning Diameter: 19.68"
Max Turning Length: 18.31"
Chuck Size: 12"
Spindle Nose: A2-8
Main Spindle Motor (S3 25% / S3 / Cont.): 34.8 / 29.5 / 24.8 HP
Spindle Speed: 3,000 RPM
Spindle Bearing Diameter (Front): 5.12"
Spindle Torque (S3 25%): 775.2 ft-lbs
C-Axis Minimum Programmable Angle: 0.001°
X-Axis Travel: 12.40"
Z-Axis Travel: 19.49"
Rapid Traverse (X / Z): 787 / 787 IPM
Guideways (X / Z): Box Way
Number of Tool Stations: 12 (Servo, BMT65)
Turret Indexing Time (1 Station): 0.2 Seconds
Curvic Coupling: 3-Piece Hydraulic Clamp / Servo Index
Coupling Clamp Force: 9,965 lbs
Tool Size (Turning and Facing): 1" Wedge Clamp
Max Boring Bar Diameter: 2"
Rotary Tool Speed: 5,000 RPM
Rotary Tool Spindle Motor (Max / Cont.): 7.4 / 5 HP
Rotary Tool Spindle Torque: 25.8 ft-lbs
Power Consumption: 45 kVA
Voltage: 220V ±10%, 60 Hz, 3 Phase
Approximate Weight: 15,873 lbs
Approximate Floor Space (L x W x H, Without Chip Conveyor): 65.7" x 79.72" x 117.6"
Fanuc 0i-TF Plus Control
15" TFT LCD Color Monitor
Live Tooling
C-Axis
Chip Conveyor
