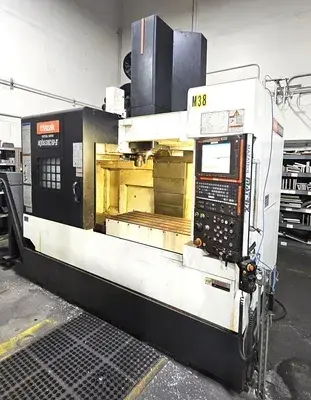

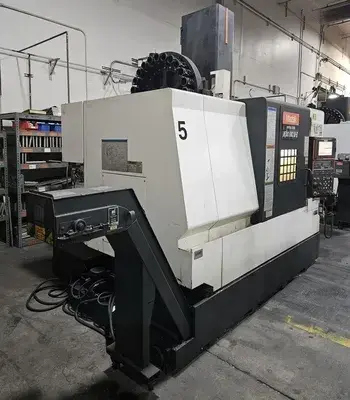

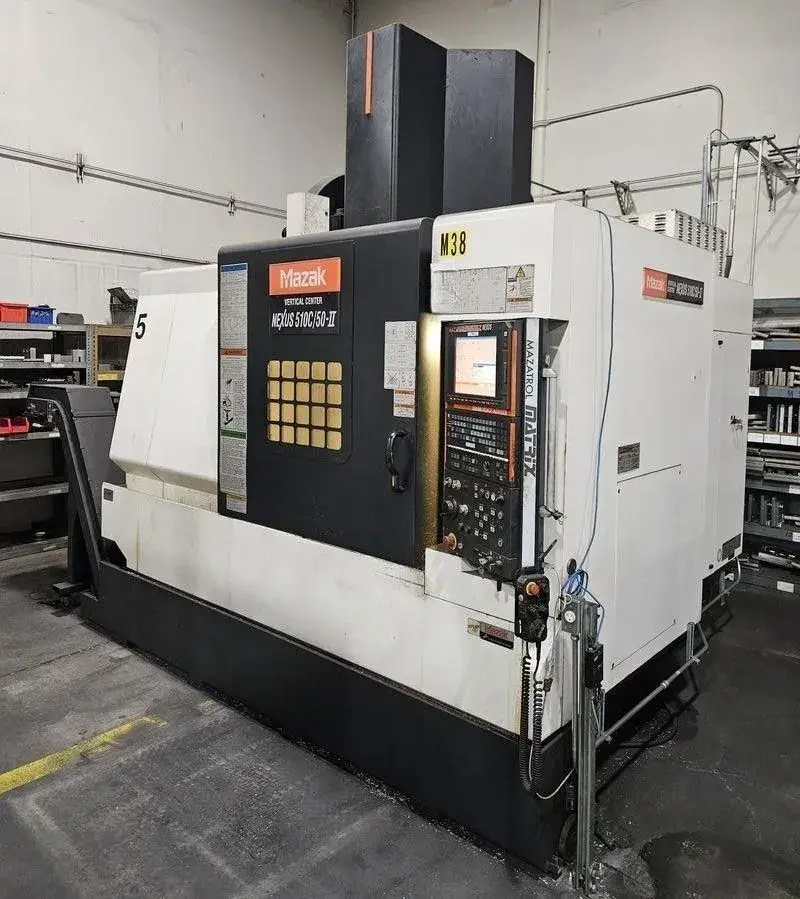

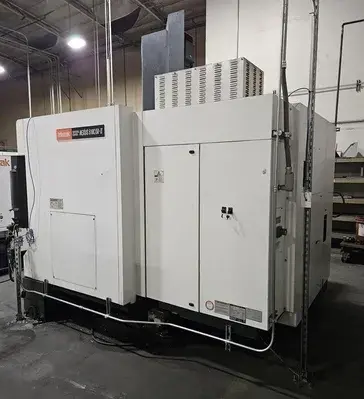

2012 Mazak Nexus 510C/50-II Vertical Machining Center
Have one to sell?
ConditionUsed
1 available
This 2012 Mazak Nexus 510C/50-II vertical machining center runs a CAT 50 spindle at 6,000 RPM with 25 HP and a 24-position side-mount tool changer. It offers 41" x 20" x 20" of X/Y/Z travel over a 51.18" x 21.65" table rated for 2,640 lbs, with 1,417 IPM rapids.
Approximately 8,677 Cutting Hours
Spindle Nose to Table Top: 5.9" to 25.98"

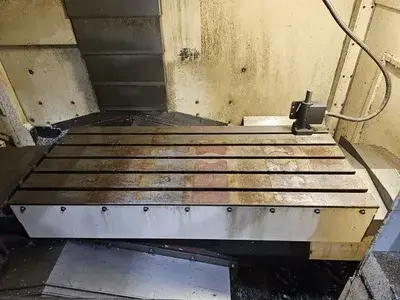

Table Load Capacity: 2,640 lbs
Max Tool Diameter: 4.9"
Max Tool Length: 13.8"
Max Tool Weight: 17 lbs
Tool Change Time (Chip-to-Chip): 1.3 to 2.9 Seconds
Rapid Traverse Rate (X, Y, Z): 1,417 IPM
Cutting Feed Rate: Approximately 787 IPM
Power Requirement: 220V, Approximately 35 kVA, 3-Phase
Air Requirement: 80 PSI, 4 SCFM
Approximate Weight: 15,500 lbs
Approximate Dimensions: 120" x 112" x 114"

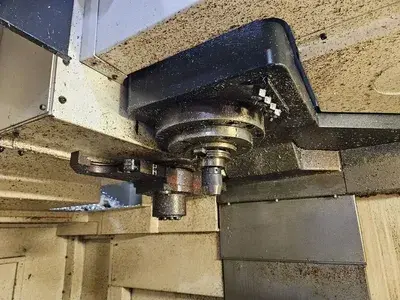

Side-Mount Automatic Tool Changer
This 2012 Mazak Nexus 510C/50-II vertical machining center runs a CAT 50 spindle at 6,000 RPM with 25 HP and a 24-position side-mount tool changer. It offers 41" x 20" x 20" of X/Y/Z travel over a 51.18" x 21.65" table rated for 2,640 lbs, with 1,417 IPM rapids.
Imperial
| X | 41" |
| Y | 20" |
| Z | 20" |
| Power | 25 hp |
| RPM | 6,000 RPM |
| # ATC | 24 |
| Taper | CAT 50 |
| Table-W | 21.6" |
| Table-L | 51.1" |
| # Axis | 3 |

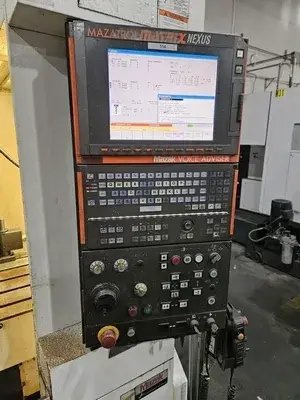

| Control | CNC (Mazatrol Matrix Nexus) |
Approximately 8,677 Cutting Hours
Spindle Nose to Table Top: 5.9" to 25.98"
Table Load Capacity: 2,640 lbs
Max Tool Diameter: 4.9"
Max Tool Length: 13.8"
Max Tool Weight: 17 lbs
Tool Change Time (Chip-to-Chip): 1.3 to 2.9 Seconds
Rapid Traverse Rate (X, Y, Z): 1,417 IPM
Cutting Feed Rate: Approximately 787 IPM
Power Requirement: 220V, Approximately 35 kVA, 3-Phase
Air Requirement: 80 PSI, 4 SCFM
Approximate Weight: 15,500 lbs
Approximate Dimensions: 120" x 112" x 114"
Side-Mount Automatic Tool Changer
