2013 Doosan Puma TT1800SY 5-Axis CNC Lathe with Bar Feeder
Have one to sell?
ConditionUsed
1 available

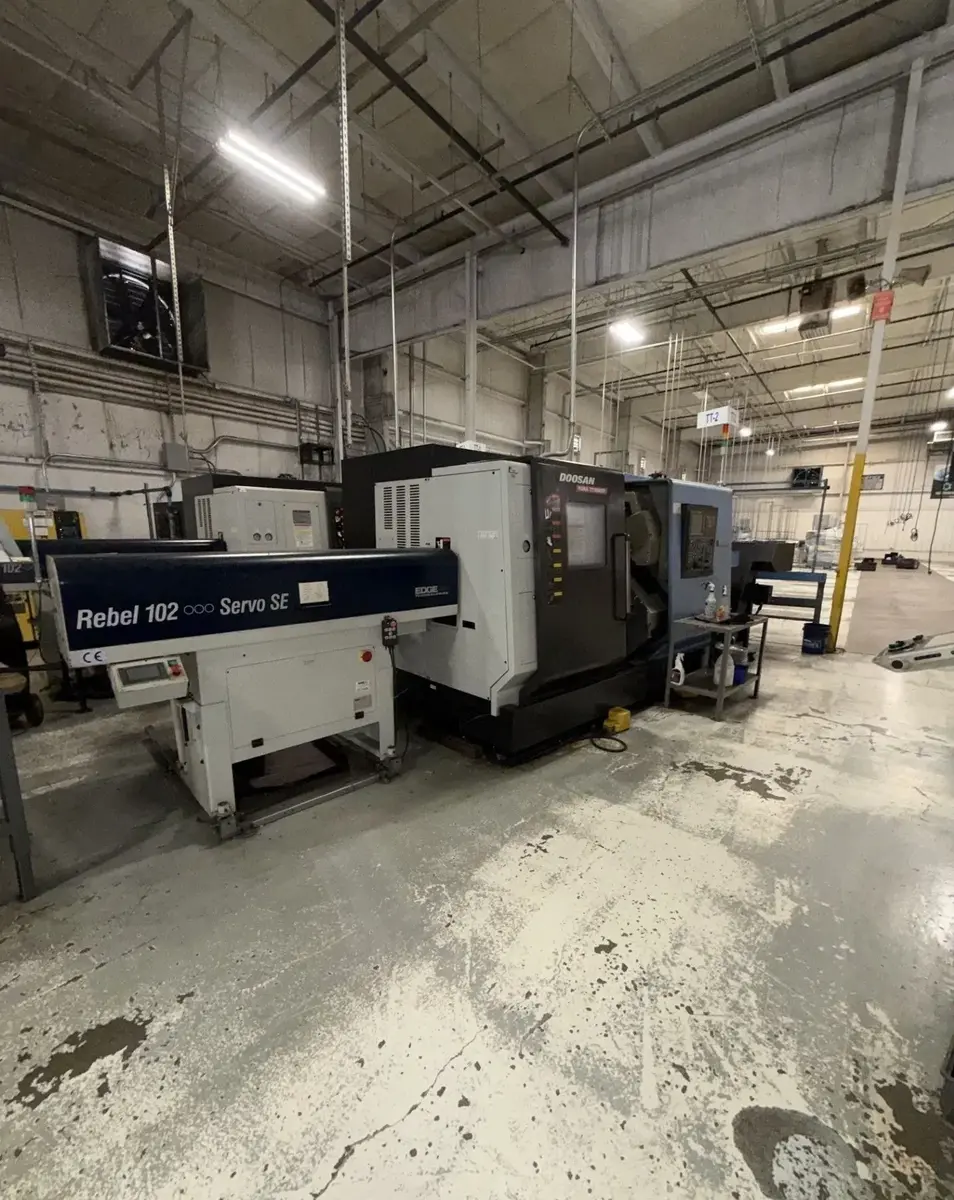

This 2013 Doosan Puma TT1800SY 5-axis CNC lathe comes equipped with an Edge Technologies Rebel 102 bar feeder, live tooling, a sub spindle, and Y-axis on the upper turret. It runs a Fanuc 31i-A control with 30 HP and a max spindle speed of 5,000 RPM, with 2.6" bar capacity and 38.5" of machining length.

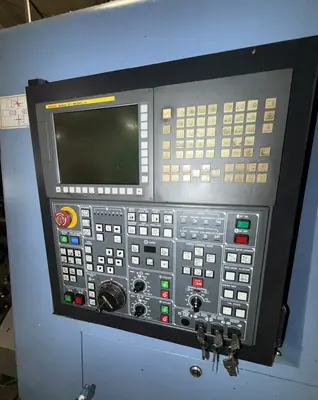

Fanuc 31i-A Control

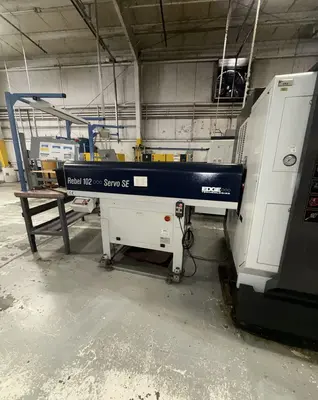

Edge Technologies Rebel 102 Servo SE Magazine Bar Feeder
Live Tooling
Y-Axis on Upper Turret
Sub Spindle
Collet Chucks on Main and Sub Spindle
Chip Conveyor
Tool Presetter
Coolant Tank and Pumps
Static and Live Tool Holders
This 2013 Doosan Puma TT1800SY 5-axis CNC lathe comes equipped with an Edge Technologies Rebel 102 bar feeder, live tooling, a sub spindle, and Y-axis on the upper turret. It runs a Fanuc 31i-A control with 30 HP and a max spindle speed of 5,000 RPM, with 2.6" bar capacity and 38.5" of machining length.
Imperial
| # Axis | 5 |
| Swing | 9" |
| Machining Length | 38.5" |
| Bar Capacity | 2.6" |
| Power | 30 hp |
| Max RPM | 5,000 RPM |
| Turning Dia | 9" |
| Tailstock | No |
| Control | CNC (Fanuc) |
Fanuc 31i-A Control
Edge Technologies Rebel 102 Servo SE Magazine Bar Feeder
Live Tooling
Y-Axis on Upper Turret
Sub Spindle
Collet Chucks on Main and Sub Spindle
Chip Conveyor
Tool Presetter
Coolant Tank and Pumps
Static and Live Tool Holders
