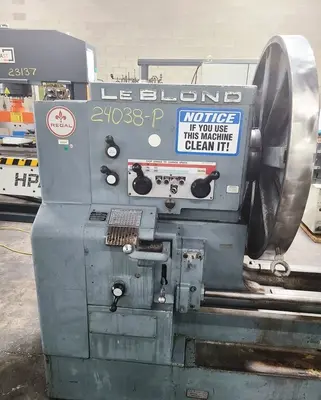

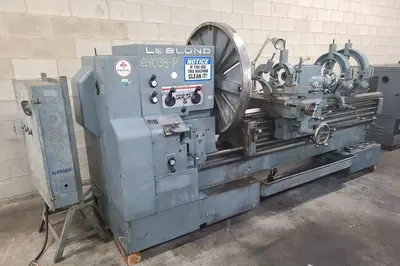

1962 LeBlond 24" Regal Gap Bed Engine Lathe with Steady Rests
Have one to sell?
ConditionUsed
1 available

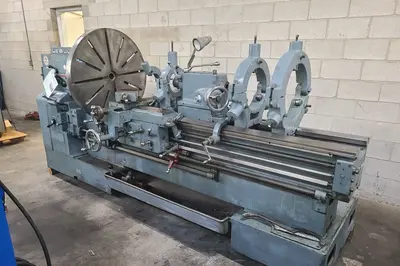

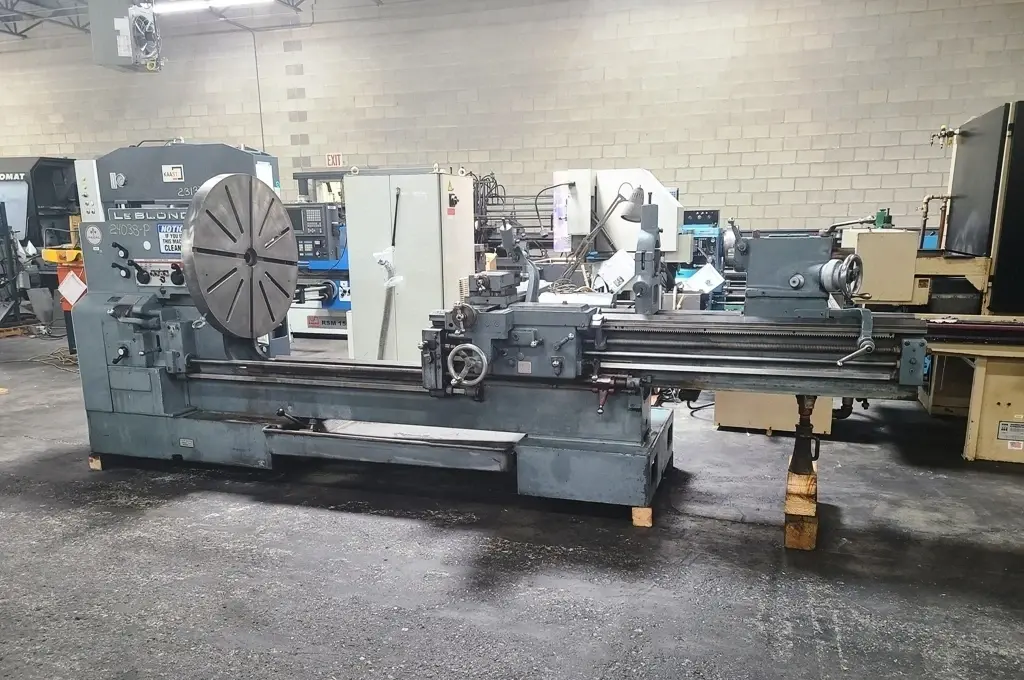

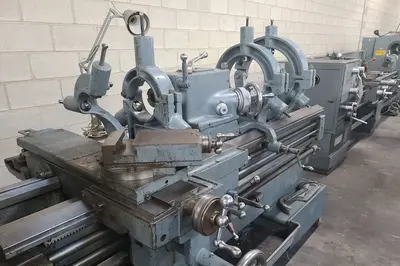

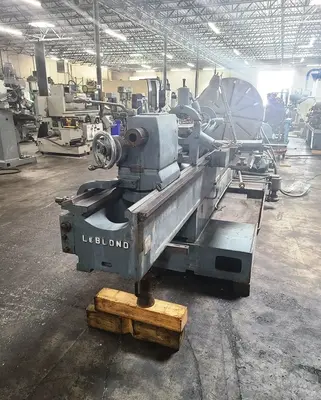

This 1962 LeBlond 24" Regal gap bed engine lathe comes with three roller-type steady rests, a follower rest, a taper attachment, and a 38" faceplate. It offers 26-1/4" of swing over the ways, 52-1/2" in the gap, and up to 116" between centers with the bed open, driven by a 15 HP spindle motor with 12 speeds from 27 to 1,080 RPM.
Swing Over Ways (Bed Closed): 26-1/4"
Swing in Gap: 52-1/2" Maximum
Swing Over Cross Slide: 18-1/4"
Distance Between Centers (Bed Closed): 72"

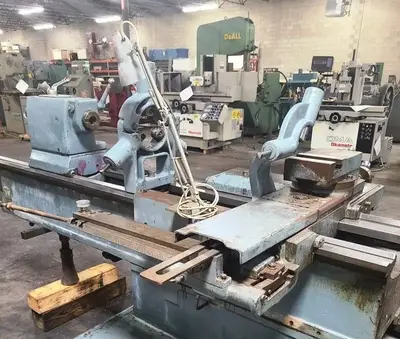

Distance Between Centers (Bed Open): 116"
Spindle Nose: L2
Spindle Speeds: (12) 27 to 1,080 RPM
Spindle Motor: 15 HP
Feeds: (48) 0.0036" to 0.205" per Revolution
Threads: (48) 2 to 112 TPI
Tailstock Quill Taper: #5 Morse
Tailstock Quill Diameter: 3-1/8"
Tailstock Quill Travel: 8"
Electrical: 3 Phase, 60 Hz, 230/460V
Approximate Overall Length (Bed Extended): 16'
Approximate Dimensions: 148" x 70" x 70"

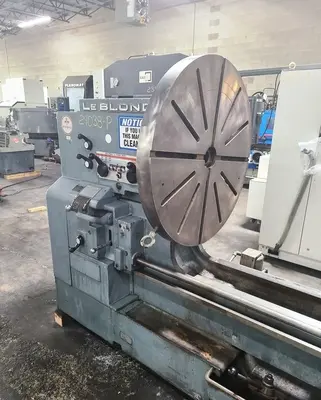

38" Diameter Faceplate

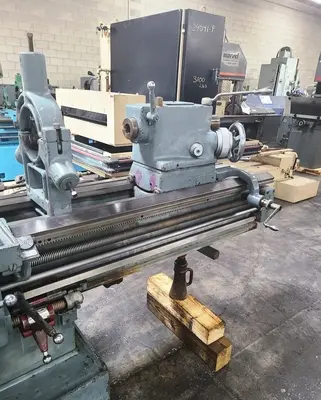

2-Speed Tailstock
Taper Attachment

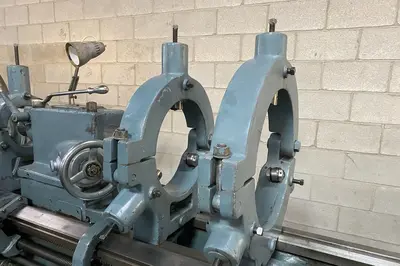

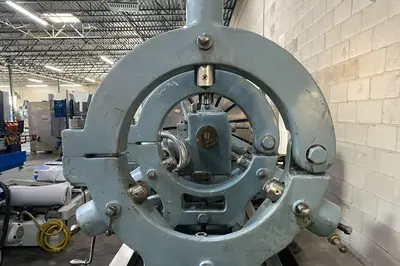

15" Roller Type Steady Rest
12" Roller Type Steady Rest
7" Roller Type Steady Rest
Follower Rest
Quick Change Tool Post
Removable Chip Pan
Hard Replaceable Bed Ways
Thread Chasing Dial
Inch Graduated Dials on Cross Slide and Top Components
Coolant Pump
This 1962 LeBlond 24" Regal gap bed engine lathe comes with three roller-type steady rests, a follower rest, a taper attachment, and a 38" faceplate. It offers 26-1/4" of swing over the ways, 52-1/2" in the gap, and up to 116" between centers with the bed open, driven by a 15 HP spindle motor with 12 speeds from 27 to 1,080 RPM.
Imperial
| Swing | 26" |
| Centers | 96" |
| Spindle Bore | 0" |
| Power | 20 hp |
| RPM | 1,080 RPM |
Swing Over Ways (Bed Closed): 26-1/4"
Swing in Gap: 52-1/2" Maximum
Swing Over Cross Slide: 18-1/4"
Distance Between Centers (Bed Closed): 72"
Distance Between Centers (Bed Open): 116"
Spindle Nose: L2
Spindle Speeds: (12) 27 to 1,080 RPM
Spindle Motor: 15 HP
Feeds: (48) 0.0036" to 0.205" per Revolution
Threads: (48) 2 to 112 TPI
Tailstock Quill Taper: #5 Morse
Tailstock Quill Diameter: 3-1/8"
Tailstock Quill Travel: 8"
Electrical: 3 Phase, 60 Hz, 230/460V
Approximate Overall Length (Bed Extended): 16'
Approximate Dimensions: 148" x 70" x 70"
38" Diameter Faceplate
2-Speed Tailstock
Taper Attachment
15" Roller Type Steady Rest
12" Roller Type Steady Rest
7" Roller Type Steady Rest
Follower Rest
Quick Change Tool Post
Removable Chip Pan
Hard Replaceable Bed Ways
Thread Chasing Dial
Inch Graduated Dials on Cross Slide and Top Components
Coolant Pump
