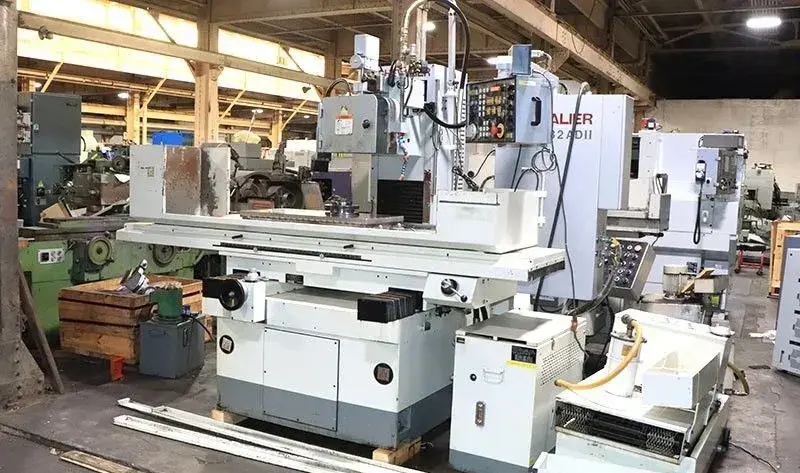

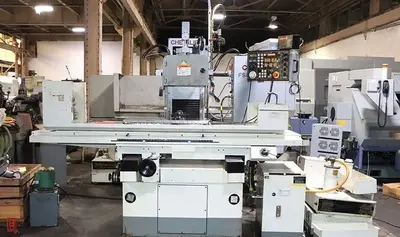

2006 Chevalier FSG-1632-ADII Surface Grinder
Have one to sell?
ConditionUsed
1 available
This 2006 Chevalier FSG-1632-ADII surface grinder has a 15.75" x 31.5" table with a 16" x 32" max grinding capacity, an electro-magnetic chuck with variable holding power, and a power over-the-wheel dresser. It runs a 5 HP spindle motor with a 14" x 2" grinding wheel, 24-3/8" from spindle center to table, and automatic incremental downfeed from 0.00005" to 0.002".
Max Grinding Capacity: 16" x 32"
Spindle Orientation: Horizontal
Standard Grinding Wheel: 14" Dia. x 2" W x 5" Bore
Max Longitudinal Table Travel (Hydraulic): 32-5/8"
Max Longitudinal Table Travel (Manual): 33-3/8"
Max Crossfeed Travel (Automatic): 16"
Max Crossfeed Travel (Manual): 18"
Distance from Spindle Center to Table: 24-3/8"
Variable Table Speed (Hydraulic): 16 to 82 FPM
Automatic Crossfeed Increment: 1/8" to 2"

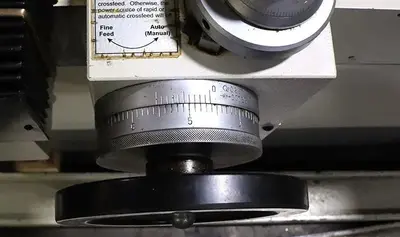

Crossfeed Handwheel per Graduation: 0.0025"
Crossfeed Handwheel per Revolution: 0.25"
Crossfeed Microfeed per Revolution: 0.005"
Crossfeed Microfeed per Graduation: 0.00005"
Automatic Incremental Downfeed: 0.00005" to 0.002"
Auto Downfeed Dial per Graduation: 0.0005"
Auto Downfeed Dial per Revolution: 0.05"
Downfeed Microfeed: 0.00005" / 0.0001"
Rapid Traverse Rate: 8 IPM
Spindle Motor: 5 HP, 3/60/230-460V
Currently Wired For: 3/60/230V
Approximate Weight: 6,400 lbs
Approximate Dimensions: 102" x 69" x 75"H
Hydraulically Actuated Longitudinal Table Feed
Electromechanically Actuated Saddle Feed
AC Servo Vertical Drive

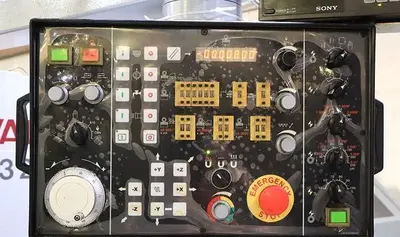

Pendant-Mounted, Microprocessor-Controlled Automatic Incremental Downfeed of Grinding Wheelhead (Surface or Plunge Modes)
Fully Automatic Grinding Cycle with Rapid Wheelhead Advance, 0 to 7 Sparkout Passes, and Wheelhead Retraction to a Preset Distance
Table and Saddle Guideways with Special Steel Rails and Steel Rollers
Needle Roller Bearings on Elevating Guideways
Fine (Micro) Feeds Graduated to 0.00005" for Vertical and Cross Feeds

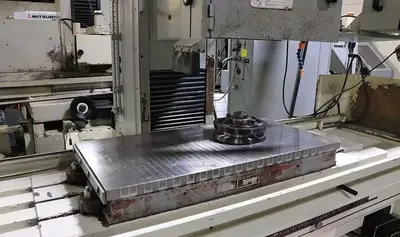

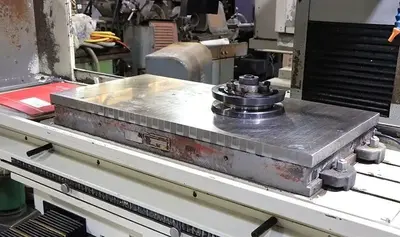

Kanetsu “Cross Pole” 15-3/4" x 31-1/2" Electro-Magnetic Chuck with Pendant-Mounted Potentiometer for Variable Holding Power and Automatic Demagnetization Selector Switch

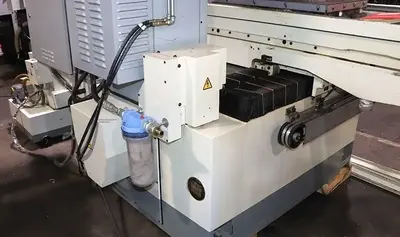

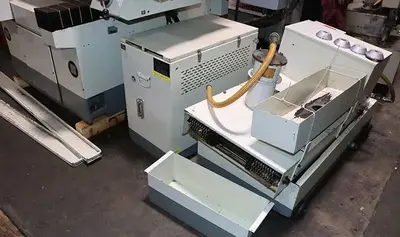

Coolant System with Paper Filtration

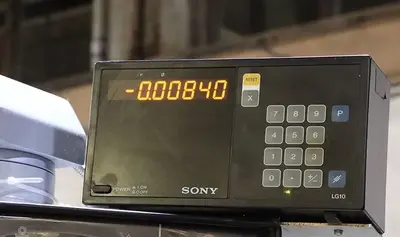

Sony 1-Axis Digital Readout

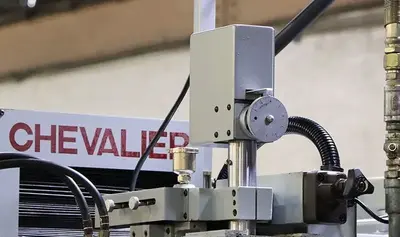

Power Over-the-Wheel Dresser (0.00025" Graduation)

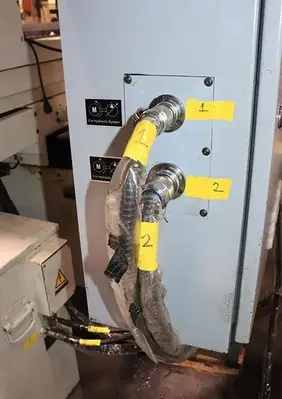

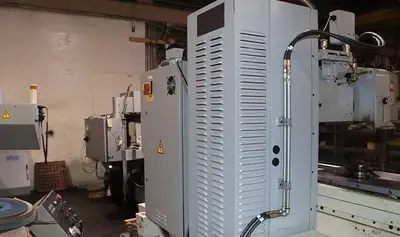

External Hydraulic Pump and Tank
This 2006 Chevalier FSG-1632-ADII surface grinder has a 15.75" x 31.5" table with a 16" x 32" max grinding capacity, an electro-magnetic chuck with variable holding power, and a power over-the-wheel dresser. It runs a 5 HP spindle motor with a 14" x 2" grinding wheel, 24-3/8" from spindle center to table, and automatic incremental downfeed from 0.00005" to 0.002".
Imperial
| Table-W | 15.75" |
| Table-L | 31.5" |
| Horz/Vert | Horz |
| Power | 5 hp |
| Grinding Wheel Width | 2" |
| Grinding Wheel Dia. | 14" |
Max Grinding Capacity: 16" x 32"
Spindle Orientation: Horizontal
Standard Grinding Wheel: 14" Dia. x 2" W x 5" Bore
Max Longitudinal Table Travel (Hydraulic): 32-5/8"
Max Longitudinal Table Travel (Manual): 33-3/8"
Max Crossfeed Travel (Automatic): 16"
Max Crossfeed Travel (Manual): 18"
Distance from Spindle Center to Table: 24-3/8"
Variable Table Speed (Hydraulic): 16 to 82 FPM
Automatic Crossfeed Increment: 1/8" to 2"
Crossfeed Handwheel per Graduation: 0.0025"
Crossfeed Handwheel per Revolution: 0.25"
Crossfeed Microfeed per Revolution: 0.005"
Crossfeed Microfeed per Graduation: 0.00005"
Automatic Incremental Downfeed: 0.00005" to 0.002"
Auto Downfeed Dial per Graduation: 0.0005"
Auto Downfeed Dial per Revolution: 0.05"
Downfeed Microfeed: 0.00005" / 0.0001"
Rapid Traverse Rate: 8 IPM
Spindle Motor: 5 HP, 3/60/230-460V
Currently Wired For: 3/60/230V
Approximate Weight: 6,400 lbs
Approximate Dimensions: 102" x 69" x 75"H
Hydraulically Actuated Longitudinal Table Feed
Electromechanically Actuated Saddle Feed
AC Servo Vertical Drive
Pendant-Mounted, Microprocessor-Controlled Automatic Incremental Downfeed of Grinding Wheelhead (Surface or Plunge Modes)
Fully Automatic Grinding Cycle with Rapid Wheelhead Advance, 0 to 7 Sparkout Passes, and Wheelhead Retraction to a Preset Distance
Table and Saddle Guideways with Special Steel Rails and Steel Rollers
Needle Roller Bearings on Elevating Guideways
Fine (Micro) Feeds Graduated to 0.00005" for Vertical and Cross Feeds
Kanetsu “Cross Pole” 15-3/4" x 31-1/2" Electro-Magnetic Chuck with Pendant-Mounted Potentiometer for Variable Holding Power and Automatic Demagnetization Selector Switch
Coolant System with Paper Filtration
Sony 1-Axis Digital Readout
Power Over-the-Wheel Dresser (0.00025" Graduation)
External Hydraulic Pump and Tank
