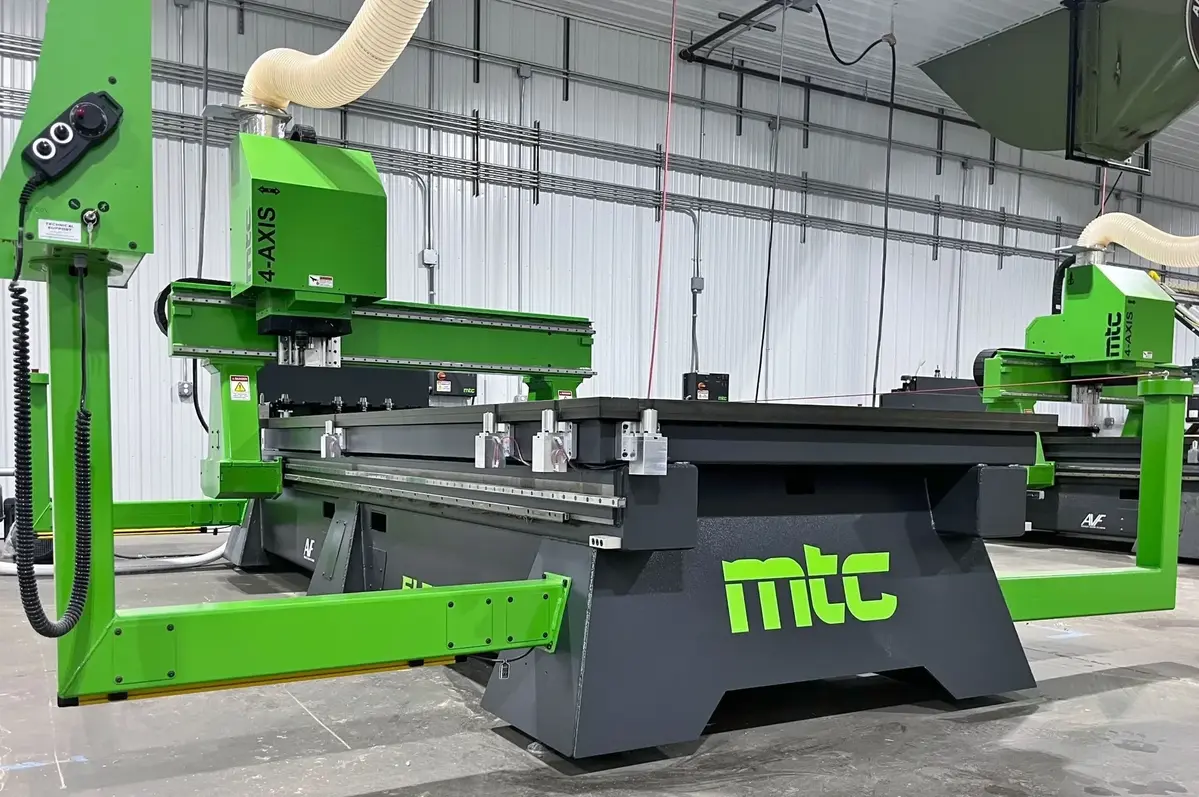

2024 MTC VR510 FLEX CNC Router with 4th Axis
Have one to sell?
ConditionUsed
1 available

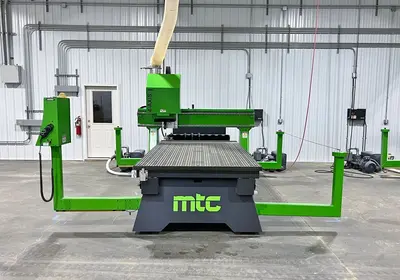

This 2024 MTC VR510 FLEX CNC router runs 4 axes, including a rotary C-axis for full 360-degree aggregate rotation, over a 60" x 120" vacuum matrix table with 9 independent vacuum areas. Power comes from an 18,000 RPM, 13 HP HSK-F63 spindle paired with a 9-pocket tool changer, with 12" of Z-axis clearance and X/Y trajectory speeds over 5,600 IPM.
Rapid Traverse Rate: 5,600 IPM
ATC Capacity: 9

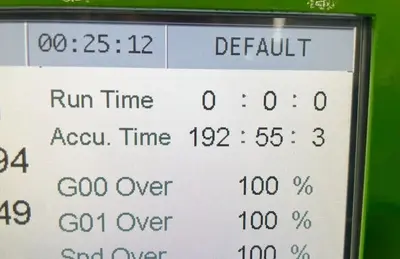

Approximately 192 Hours (Accumulated Time as of August 2026)

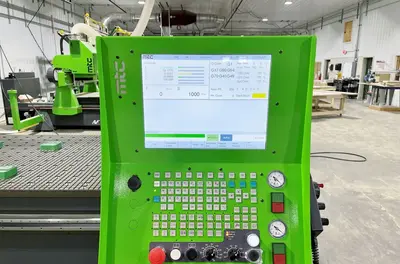

Industrial CNC Motion Control System (22 Series with 15" Touchscreen Monitor)
Rotary C-Axis Device for Full 360° Rotation of an Aggregate Tool About the Z-Axis

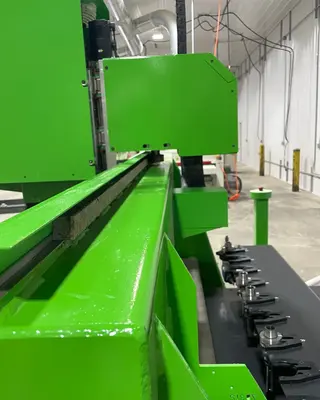

9-Pocket Tool Changer (Mounted at End of Table)
Automatic Tool Length Touch-Off Device
Part Location Pins
On-Board Continuous Long-Term Lubrication Bearing Technology
Hiteco Dual Outlet Horizontal Machining Aggregate (for Edge Predrill and Other Tool)
Hiteco Dual Outlet Horizontal Machining Aggregate (for Long 3/4" Edge Tool and Short 1/2" Edge Tool)
Vacuum Matrix Table
Advanced Vacuum Following (AVF)
9 Independent Vacuum Areas, Each Served by Two Vacuum Valves (One Full-Time Vacuum, One AVF)
Vacuum Plenum Table (Vacuum at Any Pod Location with 1.18" Grid)
(4) Better Vacuum Cups (BVC) for Component Elevation

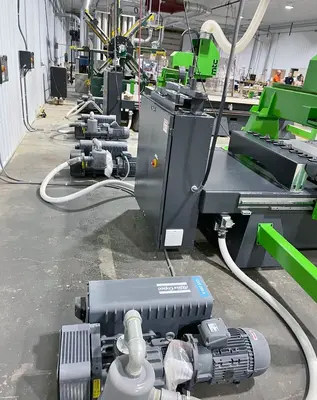

High-Performance Vacuum Pump
High-Performance Upgrade Package:
X/Y Trajectory Speeds of Over 5,600 IPM
Absolute Encoders (No Homing Required) with Forever Square Bridge Technology
High-Output VFD for Faster Spindle Acceleration/Deceleration
Manual Pulse Generator (MPG) Hand-Wheel for Remote Operation and Simulation
MPG Simulation for Play and Rewind of Programs via Hand-Wheel
External-Shift Spoil-Board Thickness Management
“See-It Before You Cut-It” CNC Program Simulation
Automated Pins Up/Down, Vacuum On/Off, and Dust Brush Up/Down Control
This 2024 MTC VR510 FLEX CNC router runs 4 axes, including a rotary C-axis for full 360-degree aggregate rotation, over a 60" x 120" vacuum matrix table with 9 independent vacuum areas. Power comes from an 18,000 RPM, 13 HP HSK-F63 spindle paired with a 9-pocket tool changer, with 12" of Z-axis clearance and X/Y trajectory speeds over 5,600 IPM.
Imperial
| Table-W | 60" |
| Table-L | 120" |
| Power | 13 hp |
| RPM | 18,000 RPM |
| Taper | HSK-F63 |
| # Axis | 4 |
| Z | 12" |
Rapid Traverse Rate: 5,600 IPM
ATC Capacity: 9
Approximately 192 Hours (Accumulated Time as of August 2026)
Industrial CNC Motion Control System (22 Series with 15" Touchscreen Monitor)
Rotary C-Axis Device for Full 360° Rotation of an Aggregate Tool About the Z-Axis
9-Pocket Tool Changer (Mounted at End of Table)
Automatic Tool Length Touch-Off Device
Part Location Pins
On-Board Continuous Long-Term Lubrication Bearing Technology
Hiteco Dual Outlet Horizontal Machining Aggregate (for Edge Predrill and Other Tool)
Hiteco Dual Outlet Horizontal Machining Aggregate (for Long 3/4" Edge Tool and Short 1/2" Edge Tool)
Vacuum Matrix Table
Advanced Vacuum Following (AVF)
9 Independent Vacuum Areas, Each Served by Two Vacuum Valves (One Full-Time Vacuum, One AVF)
Vacuum Plenum Table (Vacuum at Any Pod Location with 1.18" Grid)
(4) Better Vacuum Cups (BVC) for Component Elevation
High-Performance Vacuum Pump
High-Performance Upgrade Package:
X/Y Trajectory Speeds of Over 5,600 IPM
Absolute Encoders (No Homing Required) with Forever Square Bridge Technology
High-Output VFD for Faster Spindle Acceleration/Deceleration
Manual Pulse Generator (MPG) Hand-Wheel for Remote Operation and Simulation
MPG Simulation for Play and Rewind of Programs via Hand-Wheel
External-Shift Spoil-Board Thickness Management
“See-It Before You Cut-It” CNC Program Simulation
Automated Pins Up/Down, Vacuum On/Off, and Dust Brush Up/Down Control
