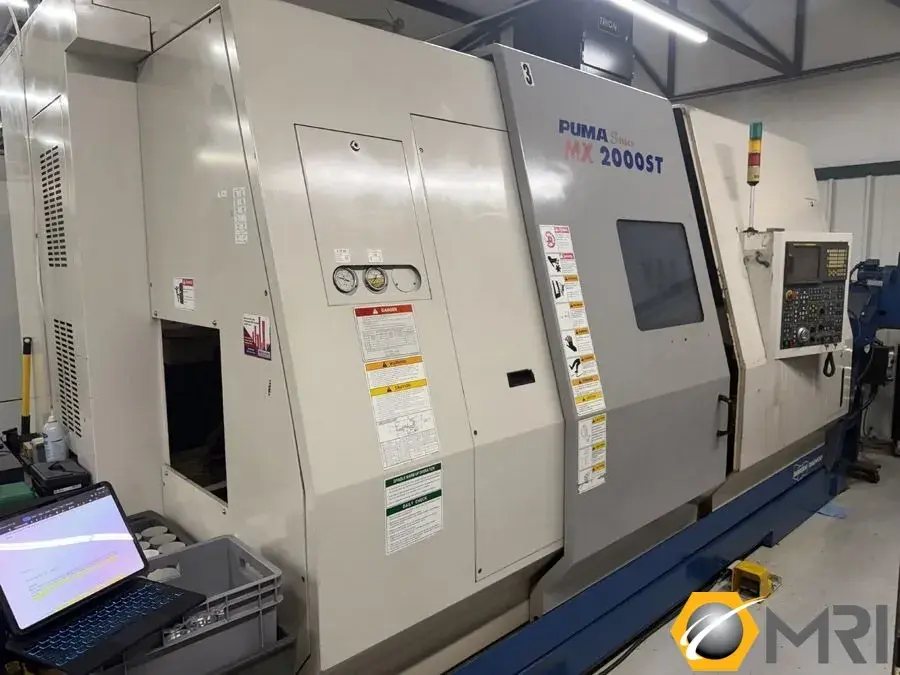

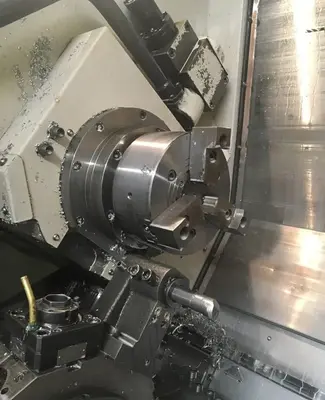

2005 Doosan Puma MX2000ST 5-Axis CNC Lathe with Bar Feeder
Have one to sell?
ConditionUsed
1 available
This 2005 Doosan Puma MX2000ST pairs a B-axis Capto C6 milling spindle rated to 10,000 RPM and a 24-tool ATC with a Y-axis, sub spindle, 12-station lower turret, and an LNS Quick Load Servo S3 bar feeder. It has 29.52" of swing over the bed, a 21.65" max turning diameter, and 40.15" of working length, with an 8" chuck, 2.55" bar capacity, and a 5,000 RPM main spindle.
Swing Over Saddle: 23.62"
Recommended Turning Diameter: 8.26"
Spindle Nose: A2-6
Spindle Diameter: 4.33"
Spindle Through Hole: 2.99"
Draw Tube Bore: 2.59"
C-Axis Indexing: 0.001°
Milling Spindle Taper: Capto C6
Milling Spindle Diameter: 2.75"
Milling Spindle Motor: 20 HP / 15 HP
Max Milling Spindle Speed: 10,000 RPM
Milling Spindle Index: 360° in 30° Increments

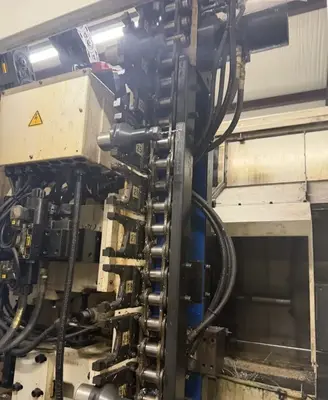

Tool Changer Capacity: 24
Tool Changer Arm: Swing Arm
Tool Change Time: 1.5 sec
X1 Axis Travel: 21.85"
X2 Axis Travel: 7.28"
Z1 Axis Travel: 43.11"
Z2 Axis Travel: 44.88"
Y Axis Travel: 6.29" (±3.14")
A-Axis Travel: 41.92"
C1, C2 Axis Travel: 360° (0.001°)
B-Axis: 240° (±120°)
B-Axis Coupling Clamp: 15°
Slant Angle: 45°
Bed (Z1 Axis): 21.25"
Saddle (X1 Axis): 11.22"
Saddle (X2 Axis): 9.44"
Right Spindle Base: 17.51"

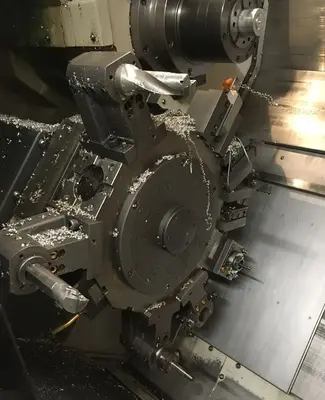

Lower Turret Tool Stations: 12
Lower Turret Boring Bar Size: 1.57"
Lower Turret Rotary Tool Speed: 4,000 RPM
Lower Turret Rotary Tool Motor: 7.5 HP
Approximate Weight: 27,557.75 lbs
Approximate Dimensions: 177.95" x 98.22" x 102.36"

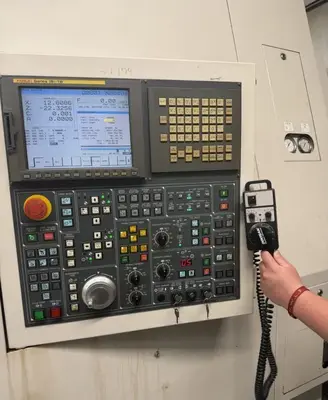

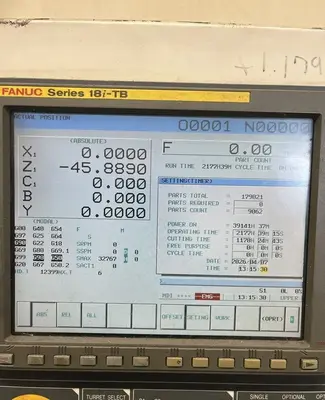

Fanuc Series 18i-TB Control

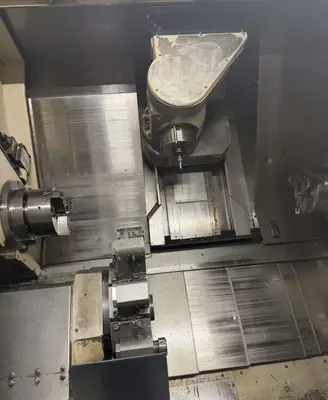

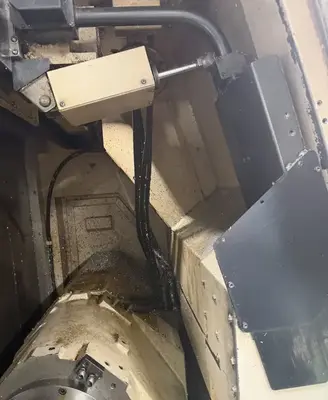

B-Axis Milling Spindle
Y-Axis

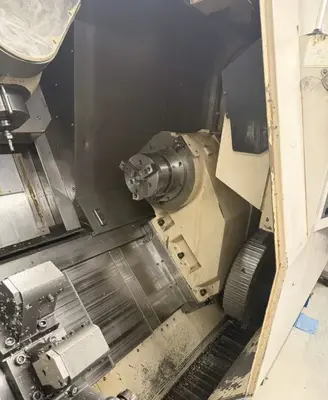

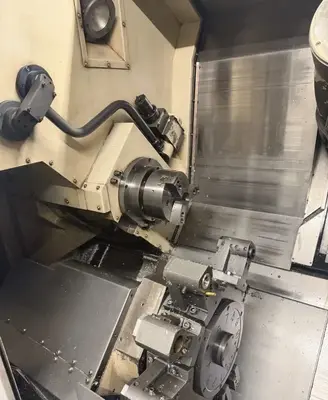

Sub Spindle
Live Tooling on Lower Turret

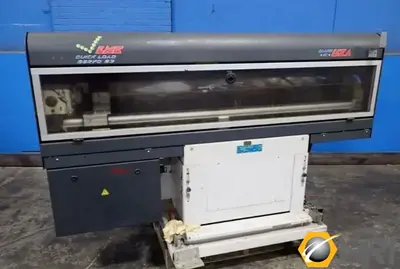

LNS Quick Load Servo S3 Bar Feeder
Bolt-On Holders for Lower Turret
Capto C6 Tooling (60 Pieces)

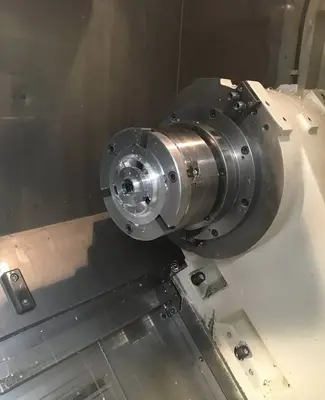

(2) 8" Kitagawa 3-Jaw Chucks
