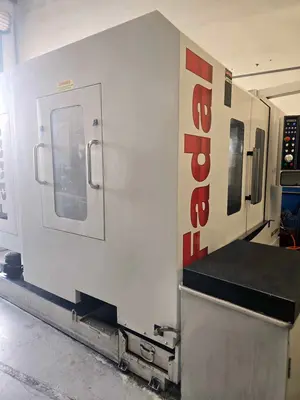

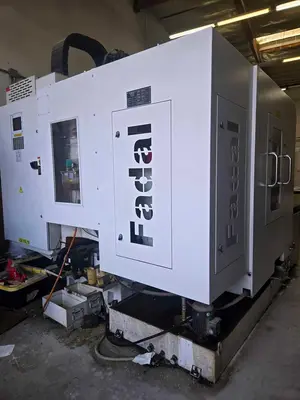

2017 Fadal VMC 3320 R-II Vertical Machining Center
Have one to sell?
ConditionUsed
1 available

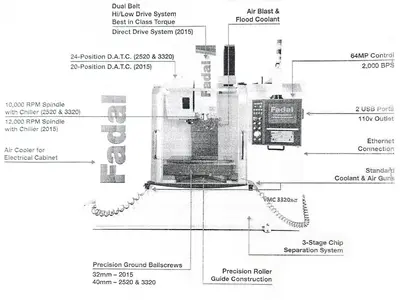

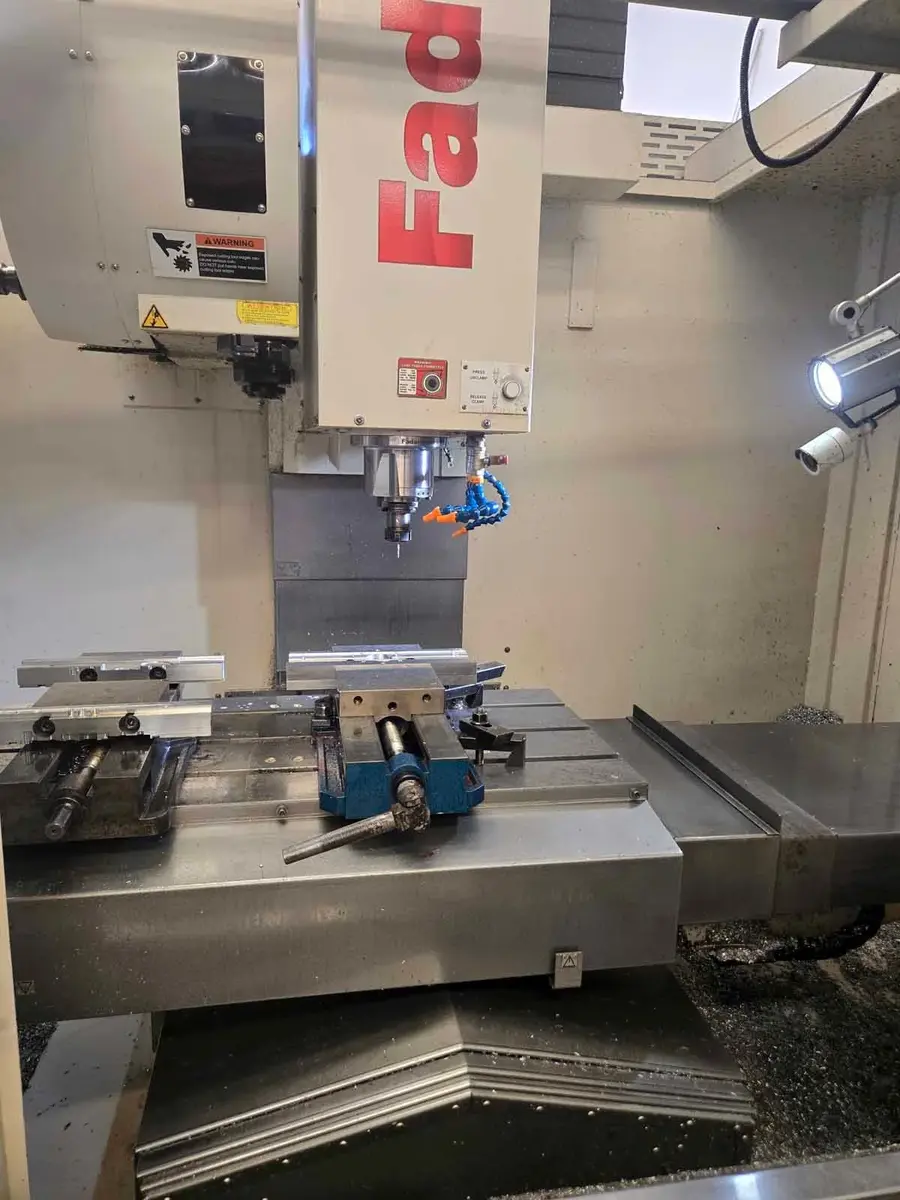

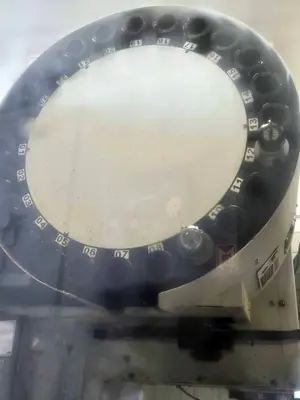

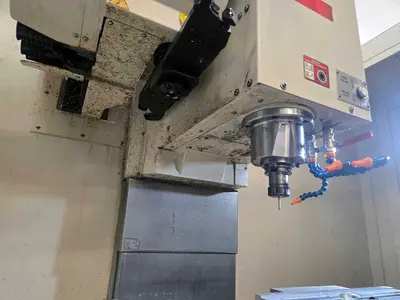

This 2017 Fadal VMC 3320 R-II vertical machining center has 33" x 20" x 20" of X, Y, and Z travel over a 39.38" x 17.75" table. Its 15 HP CT-40 spindle runs to 10,000 RPM with a 24-tool ATC, cross roller ways, and X/Y rapids of 1,410 IPM.
Max Table Load: 1,100 lbs
Spindle Nose to Table: 5" to 25"
Spindle Center to Column: 21.25"

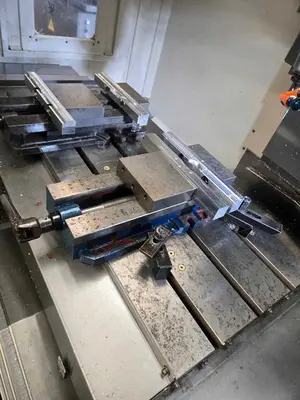

T-Slots: (3) 5" x .709" x 1.25"
Way Construction: Cross Roller
Cutting Feed Rate: 790 IPM
Rapid Traverse X/Y: 1,410 IPM
Rapid Traverse Z: 1,187 IPM
Axis Drive Motors X/Y/Z: 3.0 HP
Ball Screw Size: 1.57"
Max Tool Diameter: 4.9"
Air Pressure Required: 90 PSI
Power Requirement: 208V - 235V, 3-Phase, 15 kVA
Approximate Dimensions: 109" x 87" x 110"
Approximate Weight: 11,330 lbs
Rigid Tap
256MB Program Memory
2,000 Blocks per Second Execution

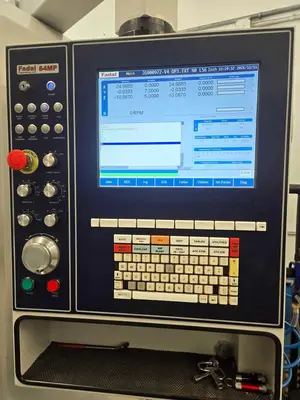

15" Color Monitor
Ethernet Port
USB Port
Spindle Orientation
High Speed Software
Mirror Imaging
Mid Program Start
Coordinate Rotation and Scaling
Jog Away
Conversational Programming
Engraving
Serialization
Custom Macros
2nd Home Position
Rheostat Feed Rate and Spindle Override Dials
Spare "M" Functions
This 2017 Fadal VMC 3320 R-II vertical machining center has 33" x 20" x 20" of X, Y, and Z travel over a 39.38" x 17.75" table. Its 15 HP CT-40 spindle runs to 10,000 RPM with a 24-tool ATC, cross roller ways, and X/Y rapids of 1,410 IPM.
Imperial
| X | 33" |
| Y | 20" |
| Z | 20" |
| Power | 15 hp |
| RPM | 10,000 RPM |
| # ATC | 24 |
| Taper | CT 40 |
| Table-W | 17.75" |
| Table-L | 39.38" |
| # Axis | 3 |
| Control | CNC (Fadal) |
| Dimensions | 109" x 87" x 110" |
| Weight | 11,300 lbs |
Max Table Load: 1,100 lbs
Spindle Nose to Table: 5" to 25"
Spindle Center to Column: 21.25"
T-Slots: (3) 5" x .709" x 1.25"
Way Construction: Cross Roller
Cutting Feed Rate: 790 IPM
Rapid Traverse X/Y: 1,410 IPM
Rapid Traverse Z: 1,187 IPM
Axis Drive Motors X/Y/Z: 3.0 HP
Ball Screw Size: 1.57"
Max Tool Diameter: 4.9"
Air Pressure Required: 90 PSI
Power Requirement: 208V - 235V, 3-Phase, 15 kVA
Approximate Dimensions: 109" x 87" x 110"
Approximate Weight: 11,330 lbs
Rigid Tap
256MB Program Memory
2,000 Blocks per Second Execution
15" Color Monitor
Ethernet Port
USB Port
Spindle Orientation
High Speed Software
Mirror Imaging
Mid Program Start
Coordinate Rotation and Scaling
Jog Away
Conversational Programming
Engraving
Serialization
Custom Macros
2nd Home Position
Rheostat Feed Rate and Spindle Override Dials
Spare "M" Functions
