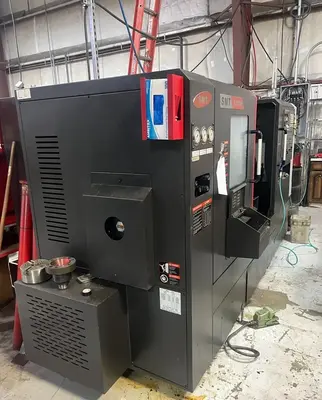

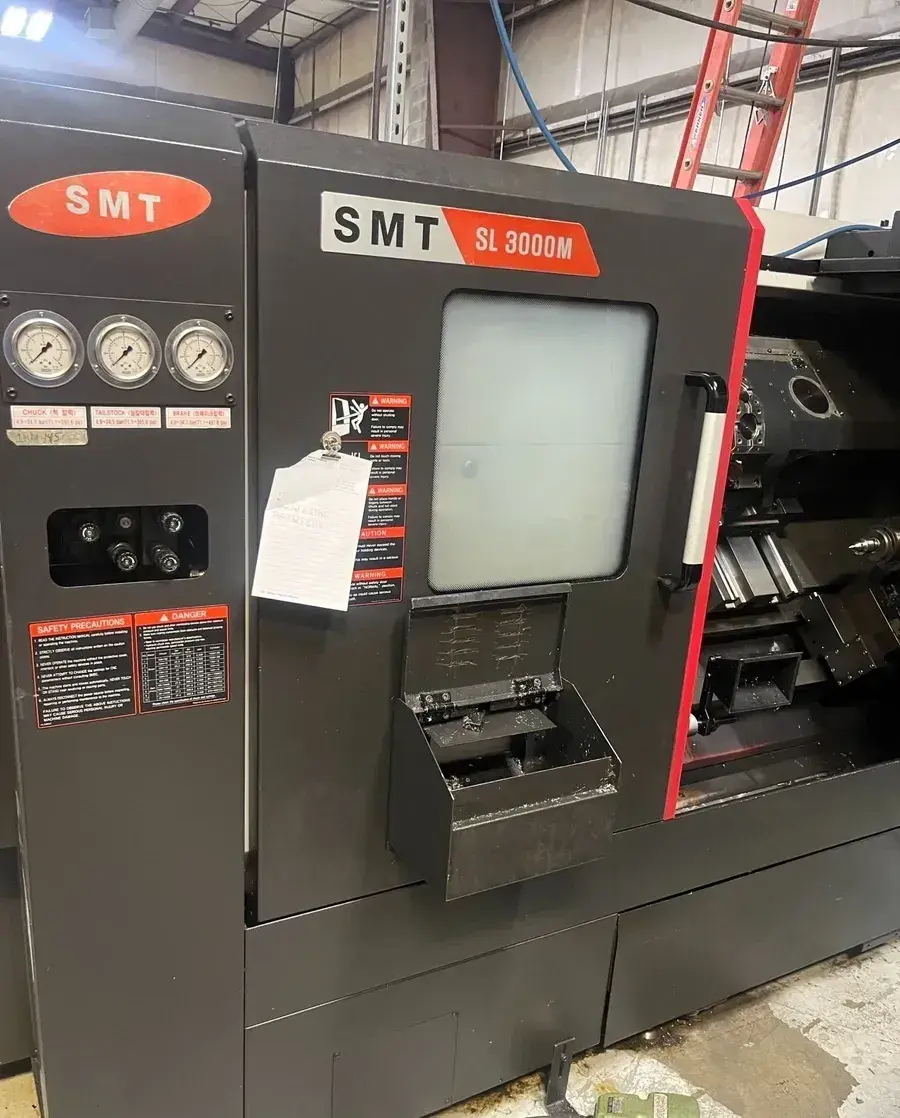

2016 Samsung SL-3000M CNC Lathe with Live Tooling
Have one to sell?
ConditionUsed
1 available
This 2016 Samsung SL-3000M CNC lathe has live tooling, a full C-axis, and a programmable tailstock, with 25.6" of swing over a 29.33" machining length. A 12" hydraulic chuck runs on a 35 HP, 3,000 RPM spindle with 3.5" bar capacity and a 15.94" max turning diameter.
X Travel: 9.65"
Z Travel: 35.43"
Swing Over Cross Slide: 18.9"
Max Milling Diameter: 15.31"
Spindle Nose: A2-8
Spindle Bore: 4.13"
Draw Tube ID: 3.58"
Spindle Torque: 633 ft-lbs
Spindle Drive: Belt
Rapids (X/Z): 945 / 1,181 IPM
Guideways: Box Way
Bed: 45° Slant Bed

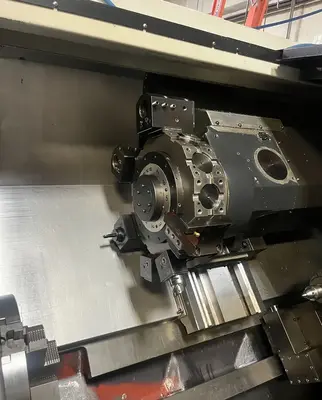

Turret: 12 Station BMT65
Turret Index Time: 0.15 Sec
Live Tool Max RPM: 5,000
Live Tool Motor: 7.5 HP
Live Tool Torque: 25.8 ft-lbs
Tailstock Taper: MT4 (Built In)
Tailstock Quill Diameter: 4.33"
Tailstock Quill Travel: 3.94"
Max Quill Thrust: 1,586 lbs
Approximate Weight: 15,400 lbs

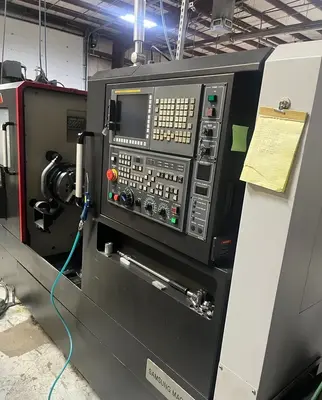

Fanuc 0i-TF Control
Full C-Axis
Programmable Tailstock

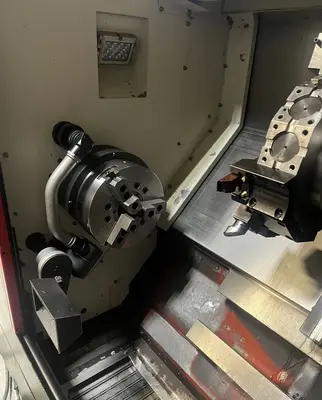

Hydraulic Chuck
(3) Radial Live Tool Holders
(3) Axial Live Tool Holders
Additional Tool Holders
Tool Presetter
Parts Catcher

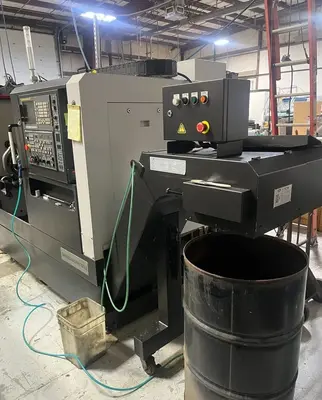

Chip Conveyor
This 2016 Samsung SL-3000M CNC lathe has live tooling, a full C-axis, and a programmable tailstock, with 25.6" of swing over a 29.33" machining length. A 12" hydraulic chuck runs on a 35 HP, 3,000 RPM spindle with 3.5" bar capacity and a 15.94" max turning diameter.
Imperial
| Swing | 25.6" |
| Machining Length | 29.33" |
| # Axis | 3 |
| Chuck Size | 12" |
| Bar Capacity | 3.5" |
| Power | 35 hp |
| Max RPM | 3,000 RPM |
| Turning Dia | 15.94" |
| Tailstock | 'Yes' |
| Live Tooling | 'Yes' |
| Sub Spindle | 'No' |
| Control | CNC (Fanuc) |
X Travel: 9.65"
Z Travel: 35.43"
Swing Over Cross Slide: 18.9"
Max Milling Diameter: 15.31"
Spindle Nose: A2-8
Spindle Bore: 4.13"
Draw Tube ID: 3.58"
Spindle Torque: 633 ft-lbs
Spindle Drive: Belt
Rapids (X/Z): 945 / 1,181 IPM
Guideways: Box Way
Bed: 45° Slant Bed
Turret: 12 Station BMT65
Turret Index Time: 0.15 Sec
Live Tool Max RPM: 5,000
Live Tool Motor: 7.5 HP
Live Tool Torque: 25.8 ft-lbs
Tailstock Taper: MT4 (Built In)
Tailstock Quill Diameter: 4.33"
Tailstock Quill Travel: 3.94"
Max Quill Thrust: 1,586 lbs
Approximate Weight: 15,400 lbs
Fanuc 0i-TF Control
Full C-Axis
Programmable Tailstock
Hydraulic Chuck
(3) Radial Live Tool Holders
(3) Axial Live Tool Holders
Additional Tool Holders
Tool Presetter
Parts Catcher
Chip Conveyor
