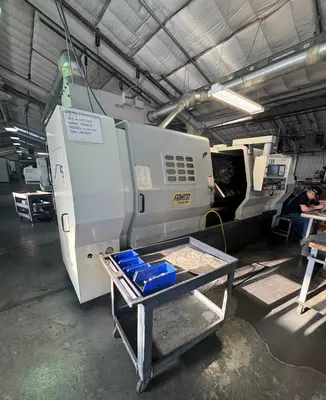

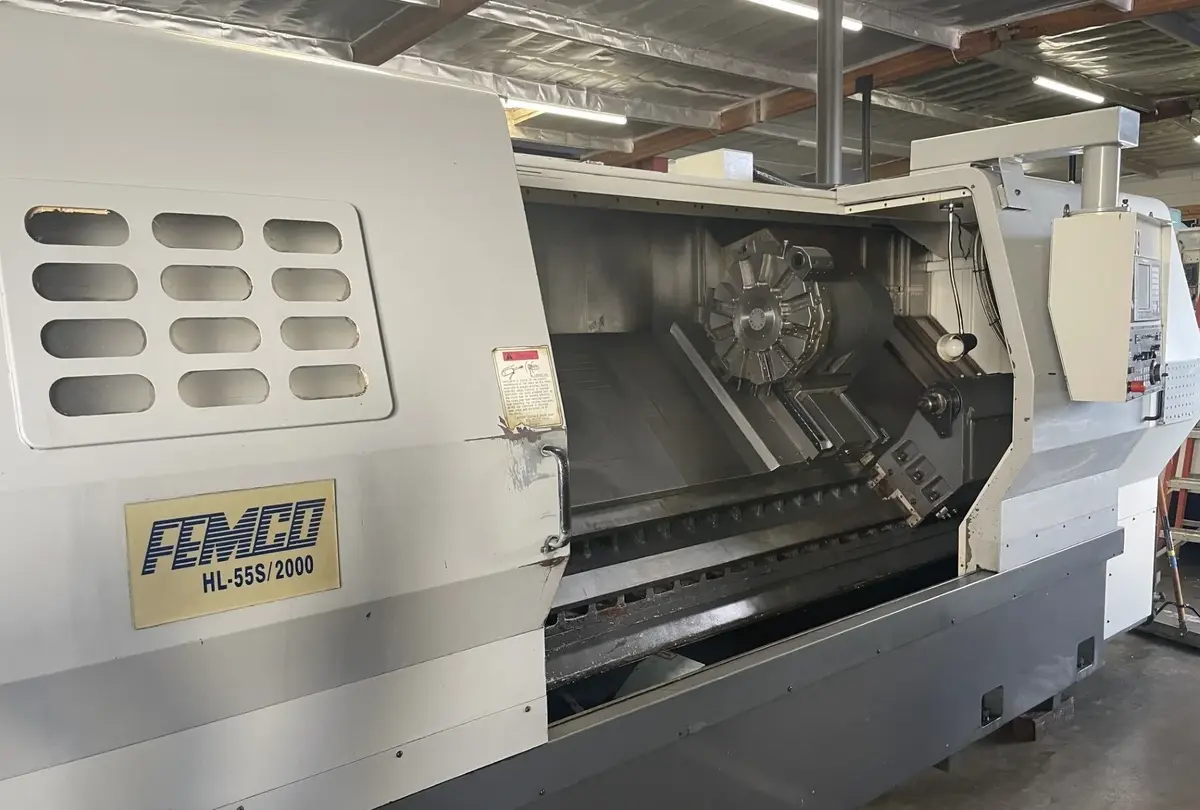

2009 Femco HL-55/2000 CNC Lathe
Have one to sell?
ConditionUsed
1 available

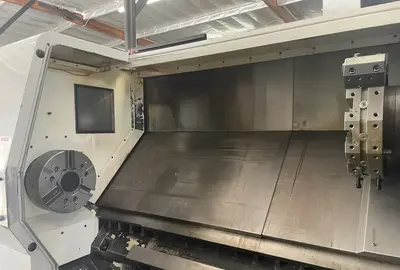

This 2009 Femco HL-55/2000 CNC lathe has a 15" hydraulic chuck, a 12-station turret, and a hydraulic tailstock with power quill on box way construction. It offers 27.95" of swing, a 75.5" machining length, and a 5.2" spindle bore, with a 35 HP spindle motor reaching 2,500 RPM.
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Z Axis: 591 IPM
Spindle Nose: A2-11
Spindle Bore: 5.2"
Turret Index Time: 1 Sec
Tailstock Body Travel: 14.3"
Tailstock Quill Diameter: 3.54"
Tailstock Quill Stroke: 4.72"
Tailstock Taper: MT-5
Electrical: 220V, 3 Phase, 60 Hz

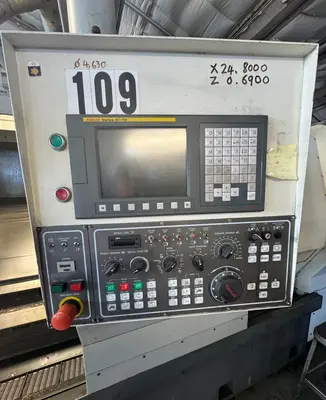

Fanuc 0i-TD Control

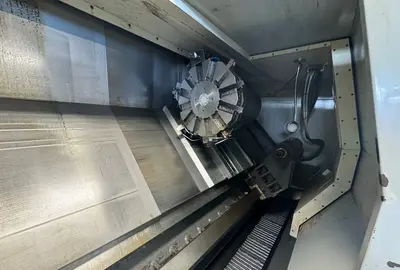

12-Station Turret
Hydraulic Chuck
Hydraulic Tailstock with Power Quill
Foot Operated Control for Chuck and Tailstock
Box Way Construction
Coolant System
Chip Pan
Automatic Lubrication System
This 2009 Femco HL-55/2000 CNC lathe has a 15" hydraulic chuck, a 12-station turret, and a hydraulic tailstock with power quill on box way construction. It offers 27.95" of swing, a 75.5" machining length, and a 5.2" spindle bore, with a 35 HP spindle motor reaching 2,500 RPM.
Imperial
| Swing | 27.95" |
| Machining Length | 75.5" |
| # Axis | 2 |
| Chuck Size | 15" |
| Bar Capacity | 4.53" |
| Power | 35 hp |
| Max RPM | 2,500 RPM |
| Turning Dia | 24.4" |
| Tailstock | 'Yes' |
| Control | CNC (Fanuc) |
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Z Axis: 591 IPM
Spindle Nose: A2-11
Spindle Bore: 5.2"
Turret Index Time: 1 Sec
Tailstock Body Travel: 14.3"
Tailstock Quill Diameter: 3.54"
Tailstock Quill Stroke: 4.72"
Tailstock Taper: MT-5
Electrical: 220V, 3 Phase, 60 Hz
Fanuc 0i-TD Control
12-Station Turret
Hydraulic Chuck
Hydraulic Tailstock with Power Quill
Foot Operated Control for Chuck and Tailstock
Box Way Construction
Coolant System
Chip Pan
Automatic Lubrication System
