2013 Ganesh Cyclone NCY-32 CNC Lathe with Live Tooling
Have one to sell?
ConditionUsed
1 available

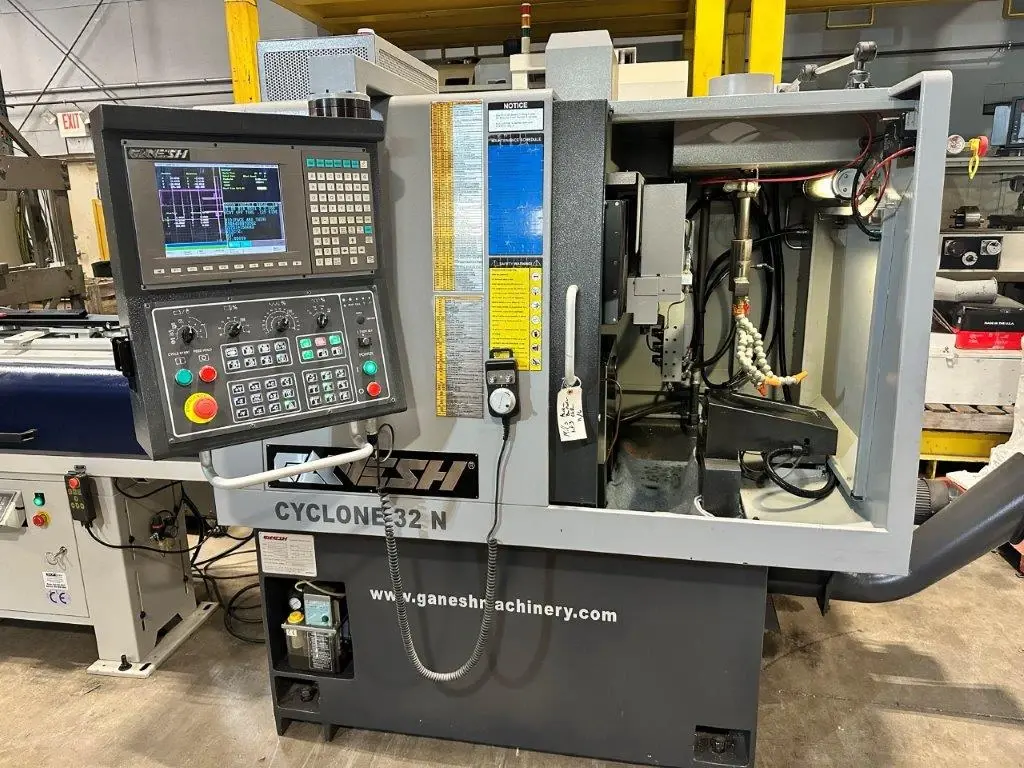

This 2013 Ganesh Cyclone NCY-32 is a 4-axis (X, Y, Z, C) sliding headstock CNC lathe with 4 cross and 3 axial driven tools, an Edge Rebel V65 magazine bar loader, and 1,000 PSI high pressure coolant. Its 10 HP spindle reaches 6,000 RPM with 1.25" Traub A-32 collet capacity, while the driven tools run up to 4,000 RPM at 2 HP.
X Axis Travel: 7.5" (Linear Ways)
Y Axis Travel: 19.3" (Linear Ways)
Z Axis Travel: 6.5" (Sliding Headstock, Linear Ways)
C Axis Travel: 360 Degrees
C Axis Resolution: 0.001 Degrees
Collet System: Traub A-32
Draw Tube ID: 1.456"
Spindle Center Height: 38"
Tooling Stations: 6 Tools of 1/2"
Internal Static Tools: 5 ID Tool Stations
ID Tool Bores: 0.98" Bore for ER-20

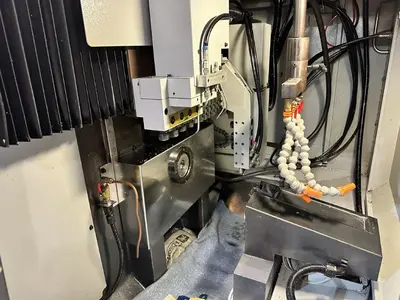

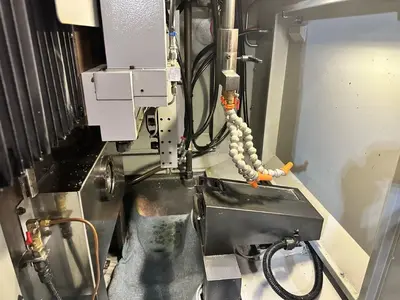

Cross Working Driven Tools: 4
End Working Driven Tools: 3
Driven Tool Size: ER-20, 1/16" to 1/2"
Driven Tool Speed Range: 0 to 4,000 RPM
Driven Tool Power: 2 HP (Radial)
Rapid Traverse X, Y, Z: 1,181 IPM
Electrical Requirements: 16 KVA, 42 Amps
Approximate Dimensions: 86" x 74" x 76"
Approximate Weight: 6,175 lbs

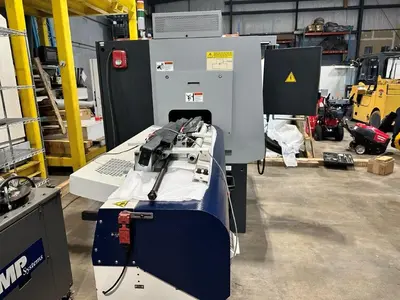

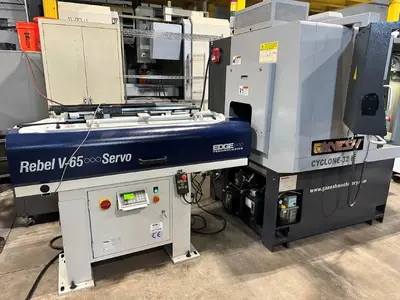

Edge Rebel V65 Magazine Bar Loader

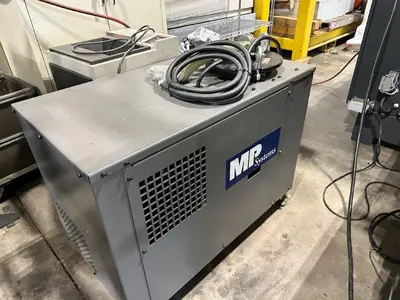

MP 1,000 PSI High Pressure Coolant
Parts Catcher
Rigid Tapping on Main Spindle
Rigid Tapping with Driven Tools
This 2013 Ganesh Cyclone NCY-32 is a 4-axis (X, Y, Z, C) sliding headstock CNC lathe with 4 cross and 3 axial driven tools, an Edge Rebel V65 magazine bar loader, and 1,000 PSI high pressure coolant. Its 10 HP spindle reaches 6,000 RPM with 1.25" Traub A-32 collet capacity, while the driven tools run up to 4,000 RPM at 2 HP.
Imperial
| # Axis | 4 |
| Bar Capacity | 1.25" |
| Power | 10 hp |
| Max RPM | 6,000 RPM |
| Live Tooling | 'Yes' |
| Control | CNC (Mitsubishi) |
X Axis Travel: 7.5" (Linear Ways)
Y Axis Travel: 19.3" (Linear Ways)
Z Axis Travel: 6.5" (Sliding Headstock, Linear Ways)
C Axis Travel: 360 Degrees
C Axis Resolution: 0.001 Degrees
Collet System: Traub A-32
Draw Tube ID: 1.456"
Spindle Center Height: 38"
Tooling Stations: 6 Tools of 1/2"
Internal Static Tools: 5 ID Tool Stations
ID Tool Bores: 0.98" Bore for ER-20
Cross Working Driven Tools: 4
End Working Driven Tools: 3
Driven Tool Size: ER-20, 1/16" to 1/2"
Driven Tool Speed Range: 0 to 4,000 RPM
Driven Tool Power: 2 HP (Radial)
Rapid Traverse X, Y, Z: 1,181 IPM
Electrical Requirements: 16 KVA, 42 Amps
Approximate Dimensions: 86" x 74" x 76"
Approximate Weight: 6,175 lbs
Edge Rebel V65 Magazine Bar Loader
MP 1,000 PSI High Pressure Coolant
Parts Catcher
Rigid Tapping on Main Spindle
Rigid Tapping with Driven Tools
