2014 Haas ST-40 CNC Lathe with 55 HP Spindle
Have one to sell?
ConditionUsed
1 available

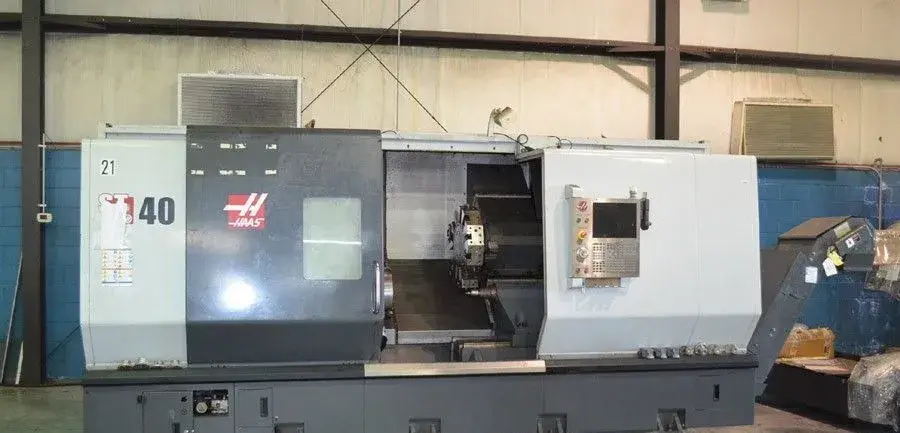

This 2014 Haas ST-40 CNC lathe has the 55 HP Extra Performance spindle drive with a 2-speed gearbox, reaching 2,400 RPM and producing 2,100 ft-lbs of torque at 150 RPM. It carries a 15" Kitagawa hydraulic chuck with 4" bar capacity, 34.5" of swing, a 44" machining length, and a programmable servo tailstock.
Swing Over Cross Slide: 25.5"
Swing Over Tailstock: 25.5"
X Axis Travel: 17"
Z Axis Travel: 44"
Rapid Traverse X Axis: 710 IPM
Rapid Traverse Z Axis: 710 IPM
Max Thrust X: 5,500 lbs
Max Thrust Z: 9,000 lbs
Max Torque: 2,100 ft-lbs @ 150 RPM
Spindle Nose: A2-8
Spindle Bore: 4.62"
Boring Bar Rear Clearance: 4.37"
Air Required: 4 SCFM @ 100 PSI
Approximately 1,176 Spindle Hours

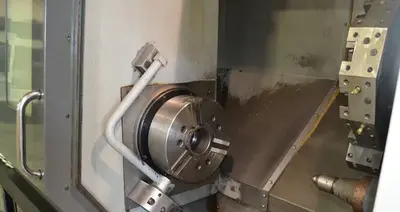

Kitagawa B-15 3-Jaw Hydraulic Chuck
Programmable Servo MT5 Tailstock
Extra Performance Option Spindle Drive
2-Speed Gearbox

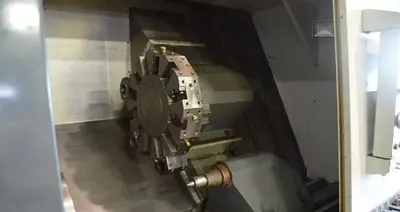

12-Station Bolt-On Style Turret
Extended Tool Pocket up to 33" (ETP-40)
Tool Presetter
Rigid Tapping
Chip Conveyor
Remote Jog Handle
This 2014 Haas ST-40 CNC lathe has the 55 HP Extra Performance spindle drive with a 2-speed gearbox, reaching 2,400 RPM and producing 2,100 ft-lbs of torque at 150 RPM. It carries a 15" Kitagawa hydraulic chuck with 4" bar capacity, 34.5" of swing, a 44" machining length, and a programmable servo tailstock.
Imperial
| Swing | 34.5" |
| Machining Length | 44" |
| # Axis | 2 |
| Chuck Size | 15" |
| Bar Capacity | 4" |
| Power | 55 hp |
| Max RPM | 2,400 RPM |
| Turning Dia | 25.5" |
| Tailstock | Yes |

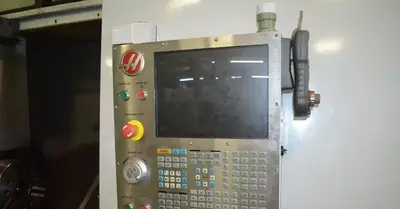

| Control | CNC (HAAS) |
Swing Over Cross Slide: 25.5"
Swing Over Tailstock: 25.5"
X Axis Travel: 17"
Z Axis Travel: 44"
Rapid Traverse X Axis: 710 IPM
Rapid Traverse Z Axis: 710 IPM
Max Thrust X: 5,500 lbs
Max Thrust Z: 9,000 lbs
Max Torque: 2,100 ft-lbs @ 150 RPM
Spindle Nose: A2-8
Spindle Bore: 4.62"
Boring Bar Rear Clearance: 4.37"
Air Required: 4 SCFM @ 100 PSI
Approximately 1,176 Spindle Hours
Kitagawa B-15 3-Jaw Hydraulic Chuck
Programmable Servo MT5 Tailstock
Extra Performance Option Spindle Drive
2-Speed Gearbox
12-Station Bolt-On Style Turret
Extended Tool Pocket up to 33" (ETP-40)
Tool Presetter
Rigid Tapping
Chip Conveyor
Remote Jog Handle
