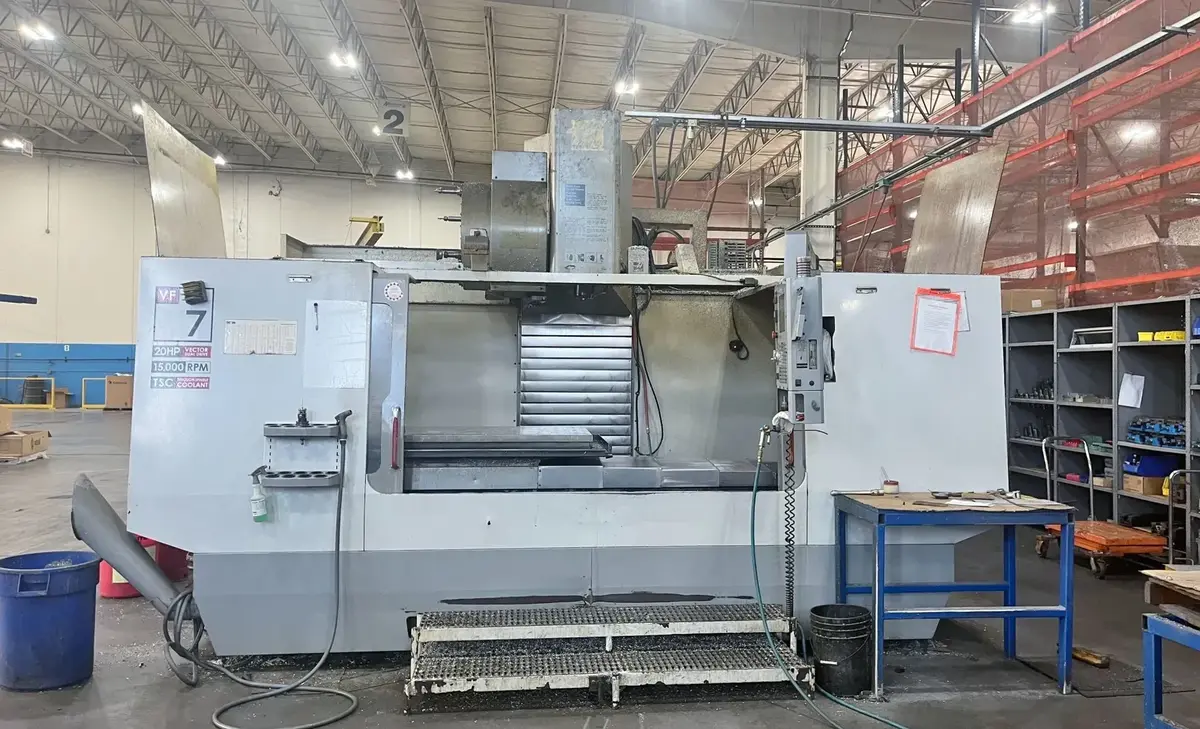

2003 Haas VF-7/40 Vertical Machining Center with 15,000 RPM
Have one to sell?
ConditionUsed
1 available
This 2003 Haas VF-7/40 vertical machining center runs a 15,000 RPM, 20 HP CT-40 spindle fed by a 24 station side mount tool changer, with a spindle probe and programmable coolant. Travels are 84" x 32" x 30" over an 84" x 28" table, and a chip auger and auxiliary coolant filtration system are included.
Side Mount Tool Changer
Spindle Probe and Receiver
Through Spindle Coolant Ready
Programmable Coolant
Auxiliary Coolant Filtration System
Chip Auger
Coordinate Rotation and Scaling
Spindle Orientation
Rigid Tapping
Macros
Internal High Voltage Isolated Transformer (Set Up for 360 to 480V)
This 2003 Haas VF-7/40 vertical machining center runs a 15,000 RPM, 20 HP CT-40 spindle fed by a 24 station side mount tool changer, with a spindle probe and programmable coolant. Travels are 84" x 32" x 30" over an 84" x 28" table, and a chip auger and auxiliary coolant filtration system are included.
Imperial
| X | 84" |
| Y | 32" |
| Z | 30" |
| Power | 20 hp |
| RPM | 15,000 RPM |
| # ATC | 24 |
| Taper | CT-40 |
| Table-W | 28" |
| Table-L | 84" |
| # Axis | 3 |
| Control | CNC (HAAS) |
Side Mount Tool Changer
Spindle Probe and Receiver
Through Spindle Coolant Ready
Programmable Coolant
Auxiliary Coolant Filtration System
Chip Auger
Coordinate Rotation and Scaling
Spindle Orientation
Rigid Tapping
Macros
Internal High Voltage Isolated Transformer (Set Up for 360 to 480V)
