2015 Doosan Puma 5100LC CNC Lathe with 10.82" Through Hole
Have one to sell?
ConditionUsed
1 available

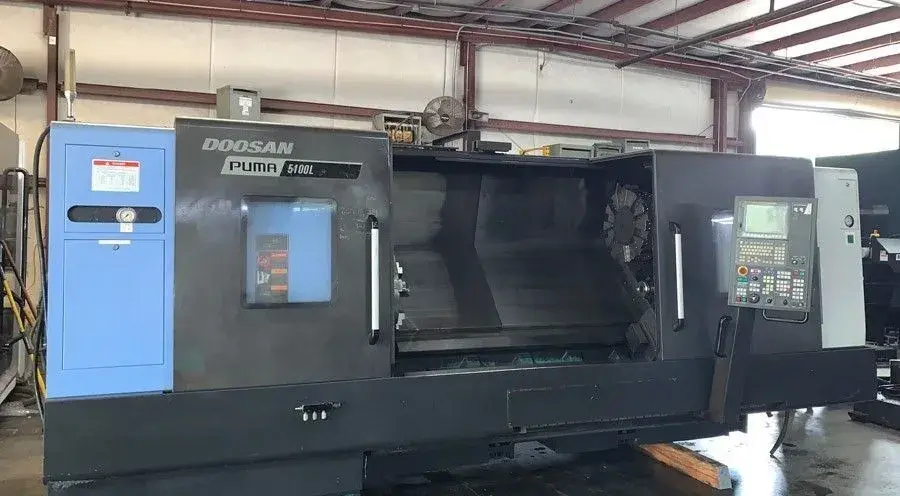

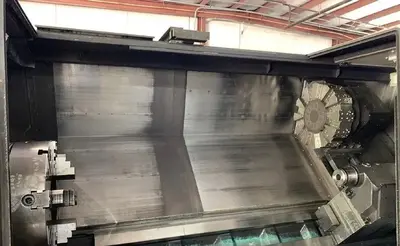

This 2015 Doosan Puma 5100LC CNC lathe pairs a 10.82" bar working diameter with a 24" 4-jaw manual chuck, a 12-station turret, and a tailstock. It offers 35" of swing over an 84" machining length, a 25.6" max turning diameter, and a max spindle speed of 1,000 RPM.
Swing Over Saddle: 27.2"
Recommended Turning Diameter: 15"
Max Turning Length: 80.4"
X Axis Travel: 14.3"
Z Axis Travel: 84.8"
Rapid Traverse X Axis: 629 IPM
Rapid Traverse Z Axis: 708 IPM
Spindle Nose: ISO 702-4 No. 20
Spindle Through Hole: 10.8"
Turret Indexing Time: 0.25 Sec (1 Station Swivel)
Tailstock Quill Diameter: 4.7"
Tailstock Quill Bore Taper: MT-6
Tailstock Quill Travel: 4.7"

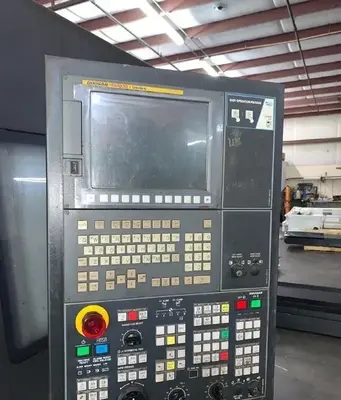

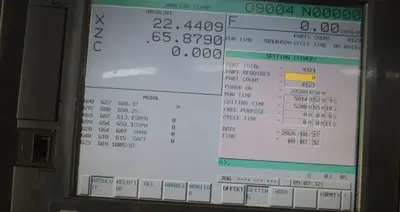

Doosan-Fanuc i Series Control

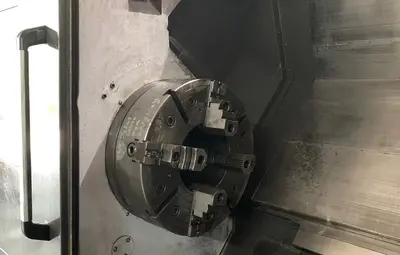

4-Jaw Manual Chuck

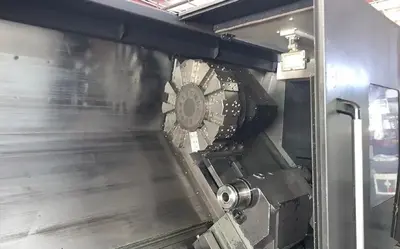

12-Station Turret
Chip Conveyor
This 2015 Doosan Puma 5100LC CNC lathe pairs a 10.82" bar working diameter with a 24" 4-jaw manual chuck, a 12-station turret, and a tailstock. It offers 35" of swing over an 84" machining length, a 25.6" max turning diameter, and a max spindle speed of 1,000 RPM.
Imperial
| Swing | 35" |
| Machining Length | 84" |
| Chuck Size | 24" |
| Bar Capacity | 10.82" |
| Max RPM | 1,000 RPM |
| Turning Dia | 25.6" |
| Tailstock | Yes |
| Control | CNC (Fanuc) |
Swing Over Saddle: 27.2"
Recommended Turning Diameter: 15"
Max Turning Length: 80.4"
X Axis Travel: 14.3"
Z Axis Travel: 84.8"
Rapid Traverse X Axis: 629 IPM
Rapid Traverse Z Axis: 708 IPM
Spindle Nose: ISO 702-4 No. 20
Spindle Through Hole: 10.8"
Turret Indexing Time: 0.25 Sec (1 Station Swivel)
Tailstock Quill Diameter: 4.7"
Tailstock Quill Bore Taper: MT-6
Tailstock Quill Travel: 4.7"
Doosan-Fanuc i Series Control
4-Jaw Manual Chuck
12-Station Turret
Chip Conveyor
