2020 Haas TL-2 CNC Lathe with Tailstock

CNC Lathes
Manufacturer:
HAAS
Model:
TL-2
Year:
2020
Stock #:
X3X4817

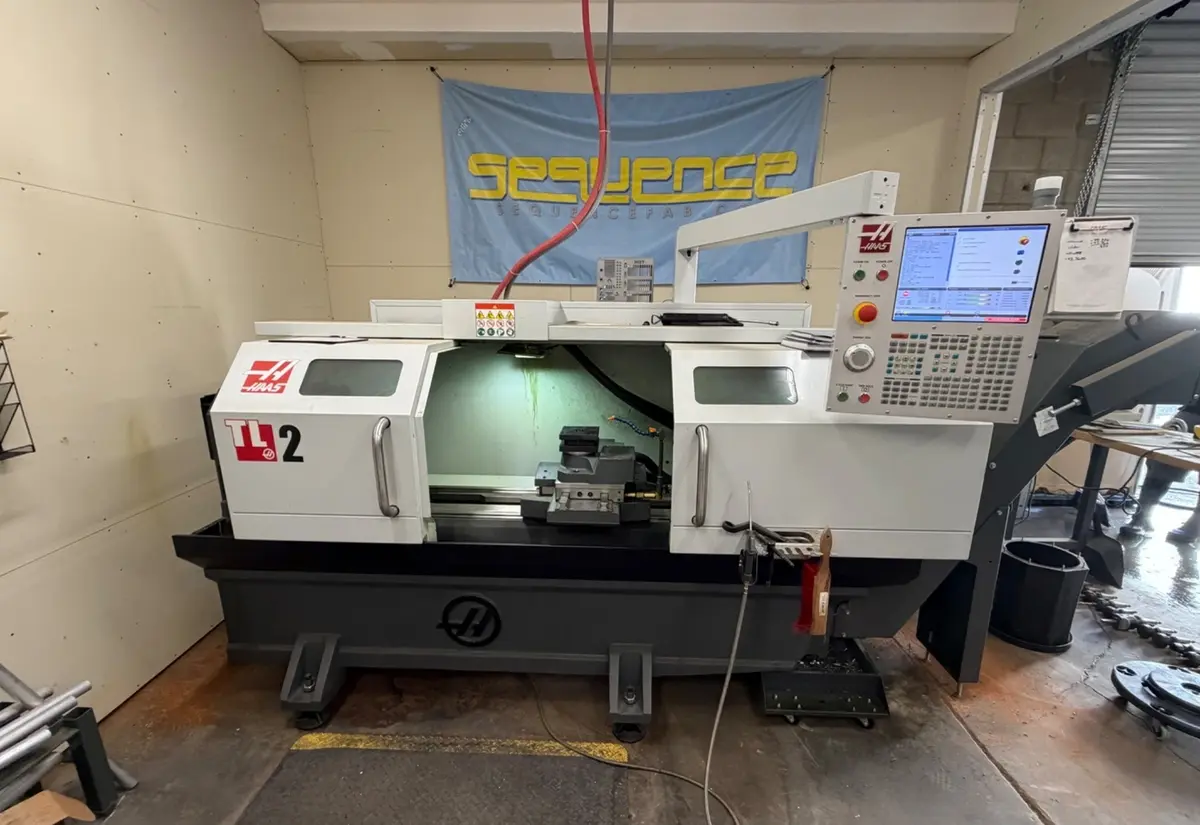

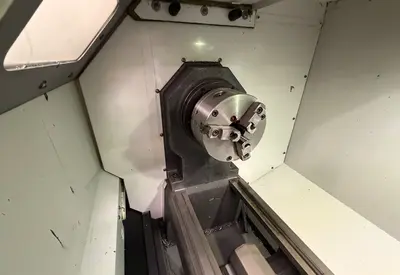

This 2020 Haas TL-2 CNC lathe comes with a tailstock and an 8" chuck, with 16" of swing over a 48" machining length. Its 10 HP spindle reaches 2,000 RPM and produces 108 ft-lbf of torque at 355 RPM, paired with 2" bar capacity and an A2-5 spindle nose.
Swing16"406.4 mm
Machining Length48"1,219.2 mm
# Axis22
Chuck Size8"203.2 mm
Bar Capacity2"50.8 mm
Power10 hp7.5 kW
Max RPM2,000 RPM2,000 RPM
Turning Dia16"406.4 mm
TailstockYesYes

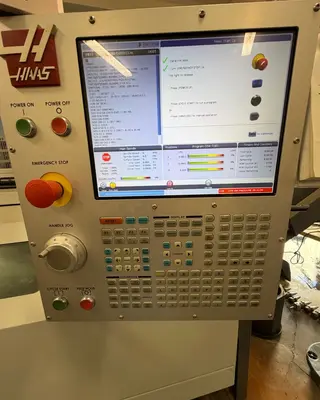

ControlCNC (HAAS)CNC (HAAS)

X Axis Travel: 8"
Z Axis Travel: 48"
Rapid Traverse X Axis: 450 IPM
Rapid Traverse Z Axis: 450 IPM
Spindle Nose: A2-5
Max Torque: 108 ft-lbf @ 355 RPM
Approximate Weight: 5,900 lbs

All specifications are approximate, provided for reference only, and not binding. Buyers are responsible for verifying all details. Inspection prior to purchase is welcome and encouraged.

Full Sheet Metal Enclosure
