2023 DN Solutions Puma 5100LC CNC Lathe with 10.8" Bore and Steady Rest
Have one to sell?
ConditionUsed
1 available

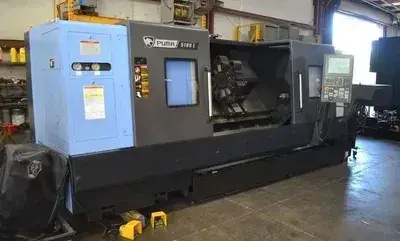

This 2023 DN Solutions Puma 5100LC CNC lathe has a 10.8" spindle through hole, front and rear 24" 4-jaw manual chucks, a tailstock, and a pass-thru manual steady rest. It offers 35.4" of swing over the bed, an 80.4" max turning length, and a 25.6" max turning diameter, driven by a 60 HP spindle with 3,293 ft-lbs of torque up to 1,000 RPM.
Swing Over Saddle: 27.2"
Recommended Turning Diameter: 15"
Max Chuck Work Weight (Including Chuck): 4,400 lbs
Max Shaft Work Weight (Including Chuck): 7,936 lbs
X-Axis Travel: 14.3"
Z-Axis Travel: 84.8"
X-Axis Rapid Traverse: 629 IPM
Z-Axis Rapid Traverse: 787 IPM
Max Spindle Torque: 3,293 ft-lbs
Spindle Nose: ASA-ISO 703-4 No. 20
Max Spindle Through Hole Diameter: 10.8"

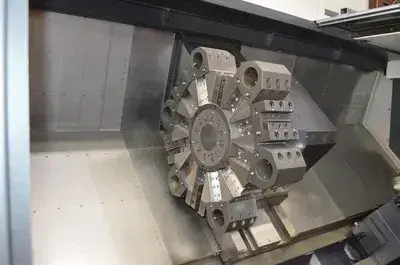

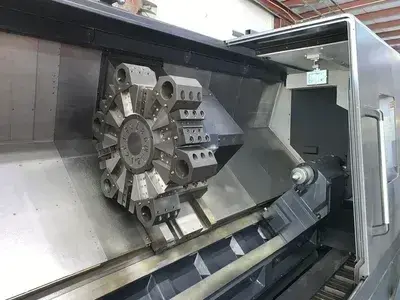

Tool Stations: 12
Tailstock Travel: 80.7"
Tailstock Quill Diameter: 4.7"
Tailstock Quill Travel: 4.7"
Tailstock Quill Bore Taper: MT6
Approximate Weight: 26,700 lbs
Approximate Dimensions: 232" x 89.6" x 89.4"

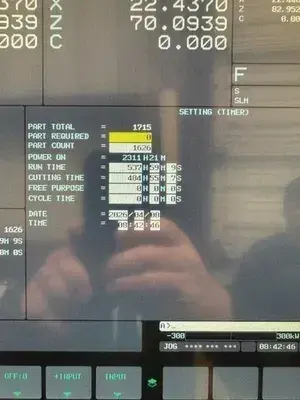

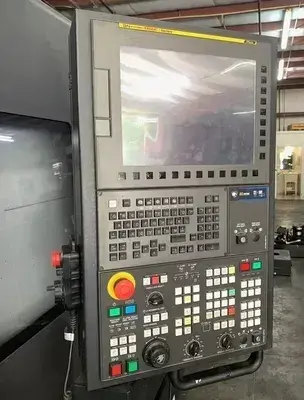

DN Solutions Fanuc i Series Plus Control
Turbo Side Discharge Chip Conveyor

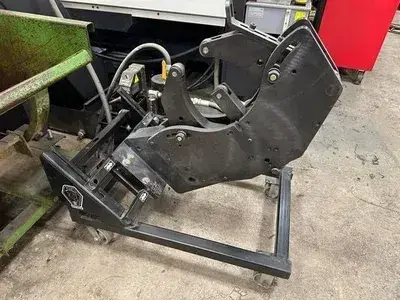

RIP-216 Pass-Thru Manual Steady Rest (0.5" to 16")

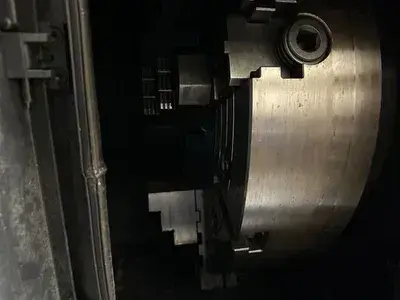

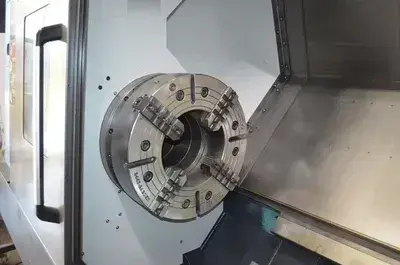

(2) King Bore 24" 4-Jaw Independent Manual Chucks, Front and Rear (2443-2A20EX)
This 2023 DN Solutions Puma 5100LC CNC lathe has a 10.8" spindle through hole, front and rear 24" 4-jaw manual chucks, a tailstock, and a pass-thru manual steady rest. It offers 35.4" of swing over the bed, an 80.4" max turning length, and a 25.6" max turning diameter, driven by a 60 HP spindle with 3,293 ft-lbs of torque up to 1,000 RPM.
Imperial
| Swing | 35.4" |
| Machining Length | 80.4" |
| # Axis | 2 |
| Chuck Size | 24" |
| Bar Capacity | 10.82" |
| Power | 60 hp |
| Max RPM | 1,000 RPM |
| Turning Dia | 25.6" |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
| Control | CNC (Fanuc) |
Swing Over Saddle: 27.2"
Recommended Turning Diameter: 15"
Max Chuck Work Weight (Including Chuck): 4,400 lbs
Max Shaft Work Weight (Including Chuck): 7,936 lbs
X-Axis Travel: 14.3"
Z-Axis Travel: 84.8"
X-Axis Rapid Traverse: 629 IPM
Z-Axis Rapid Traverse: 787 IPM
Max Spindle Torque: 3,293 ft-lbs
Spindle Nose: ASA-ISO 703-4 No. 20
Max Spindle Through Hole Diameter: 10.8"
Tool Stations: 12
Tailstock Travel: 80.7"
Tailstock Quill Diameter: 4.7"
Tailstock Quill Travel: 4.7"
Tailstock Quill Bore Taper: MT6
Approximate Weight: 26,700 lbs
Approximate Dimensions: 232" x 89.6" x 89.4"
DN Solutions Fanuc i Series Plus Control
Turbo Side Discharge Chip Conveyor
RIP-216 Pass-Thru Manual Steady Rest (0.5" to 16")
(2) King Bore 24" 4-Jaw Independent Manual Chucks, Front and Rear (2443-2A20EX)
