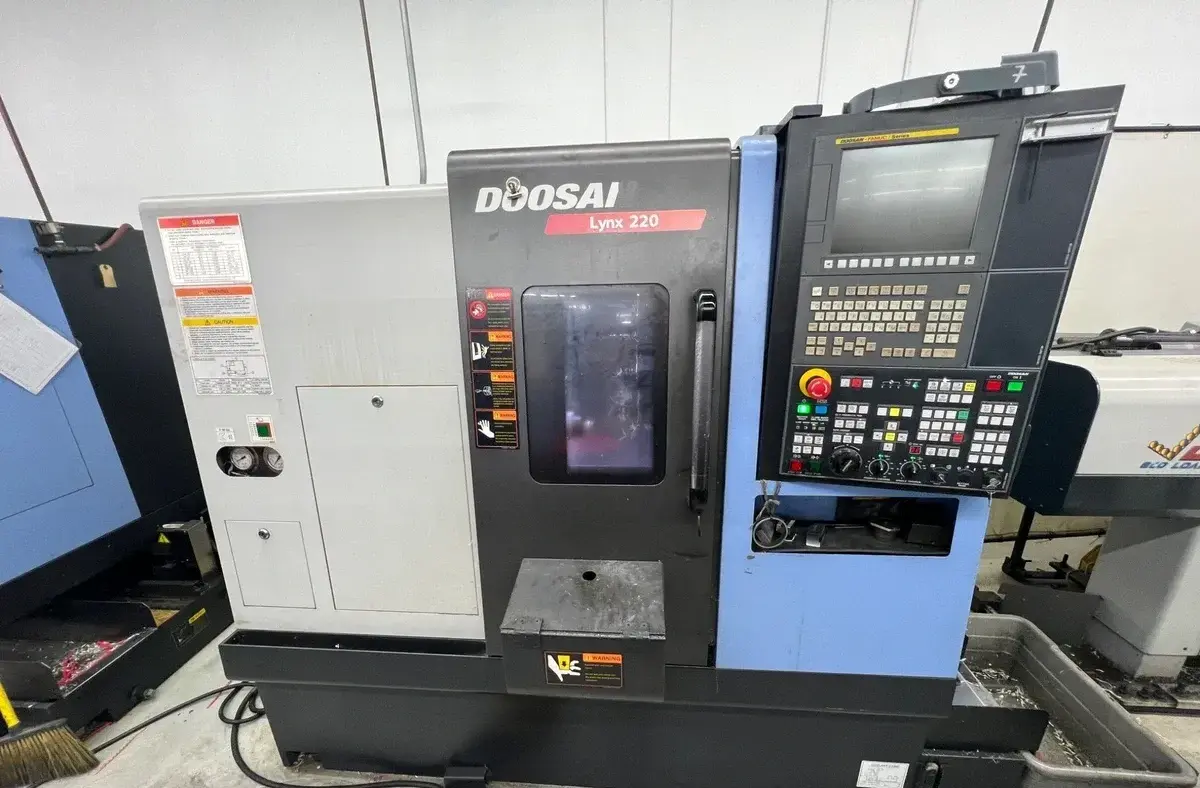

2014 Doosan Lynx 220A CNC Lathe
Have one to sell?
ConditionUsed
1 available
This 2014 Doosan Lynx 220A CNC lathe runs a Fanuc i Series control with a 12-station turret, 20.1" of swing over the bed, and a 12.7" max machining length. Its 20 HP spindle reaches 6,000 RPM through an A2-5 spindle nose, with a hydraulic 3-jaw chuck, 1.8" bar capacity, and a 12.6" max turning diameter.
X-Axis Travel: 6.9"
X-Axis Rapid Traverse: 1,181 IPM
Z-Axis Rapid Traverse: 1,417 IPM
Spindle Bore: 2.1" to 2.2"
Spindle Nose: A2-5
Turret Stations: 12
Turret Index Time: Approximately 0.15 Seconds (Single Step)
Electrical Requirements: 220V, 3-Phase, 50/60 Hz, 23.7 KVA, 62.15 Amps
Approximate Weight: 6,400 to 7,700 lbs
Approximate Dimensions: 91" to 101" L x 63" W x 63" to 65" H

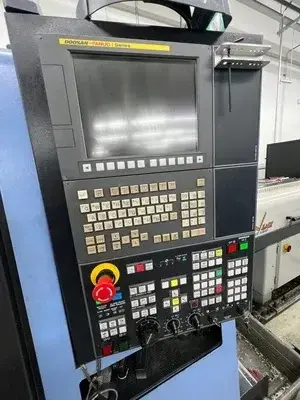

Fanuc i Series Control

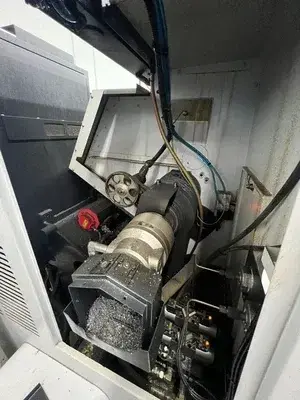

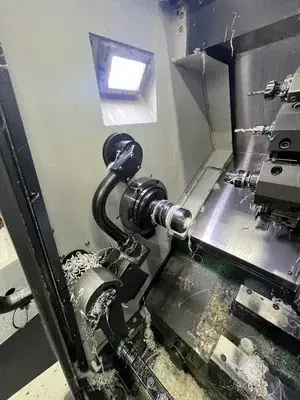

Hydraulic 3-Jaw Chuck
This 2014 Doosan Lynx 220A CNC lathe runs a Fanuc i Series control with a 12-station turret, 20.1" of swing over the bed, and a 12.7" max machining length. Its 20 HP spindle reaches 6,000 RPM through an A2-5 spindle nose, with a hydraulic 3-jaw chuck, 1.8" bar capacity, and a 12.6" max turning diameter.
Imperial
| Swing | 20.1" |
| Machining Length | 12.7" |
| Chuck Size | 6.5" |
| Bar Capacity | 1.81" |
| Power | 20 hp |
| Max RPM | 6,000 RPM |
| Turning Dia | 12.6" |
| Tailstock | Yes |
| Control | CNC (Fanuc) |
X-Axis Travel: 6.9"
X-Axis Rapid Traverse: 1,181 IPM
Z-Axis Rapid Traverse: 1,417 IPM
Spindle Bore: 2.1" to 2.2"
Spindle Nose: A2-5

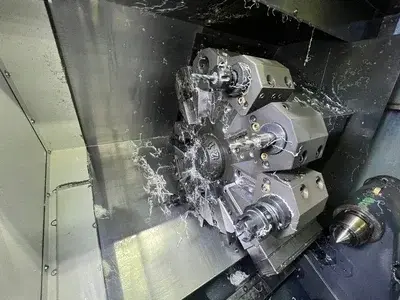

Turret Stations: 12
Turret Index Time: Approximately 0.15 Seconds (Single Step)
Electrical Requirements: 220V, 3-Phase, 50/60 Hz, 23.7 KVA, 62.15 Amps
Approximate Weight: 6,400 to 7,700 lbs
Approximate Dimensions: 91" to 101" L x 63" W x 63" to 65" H
Fanuc i Series Control
Hydraulic 3-Jaw Chuck
