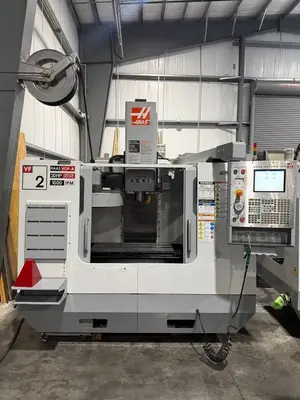

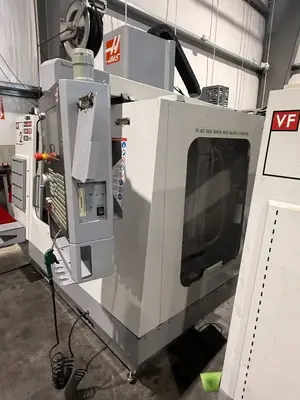

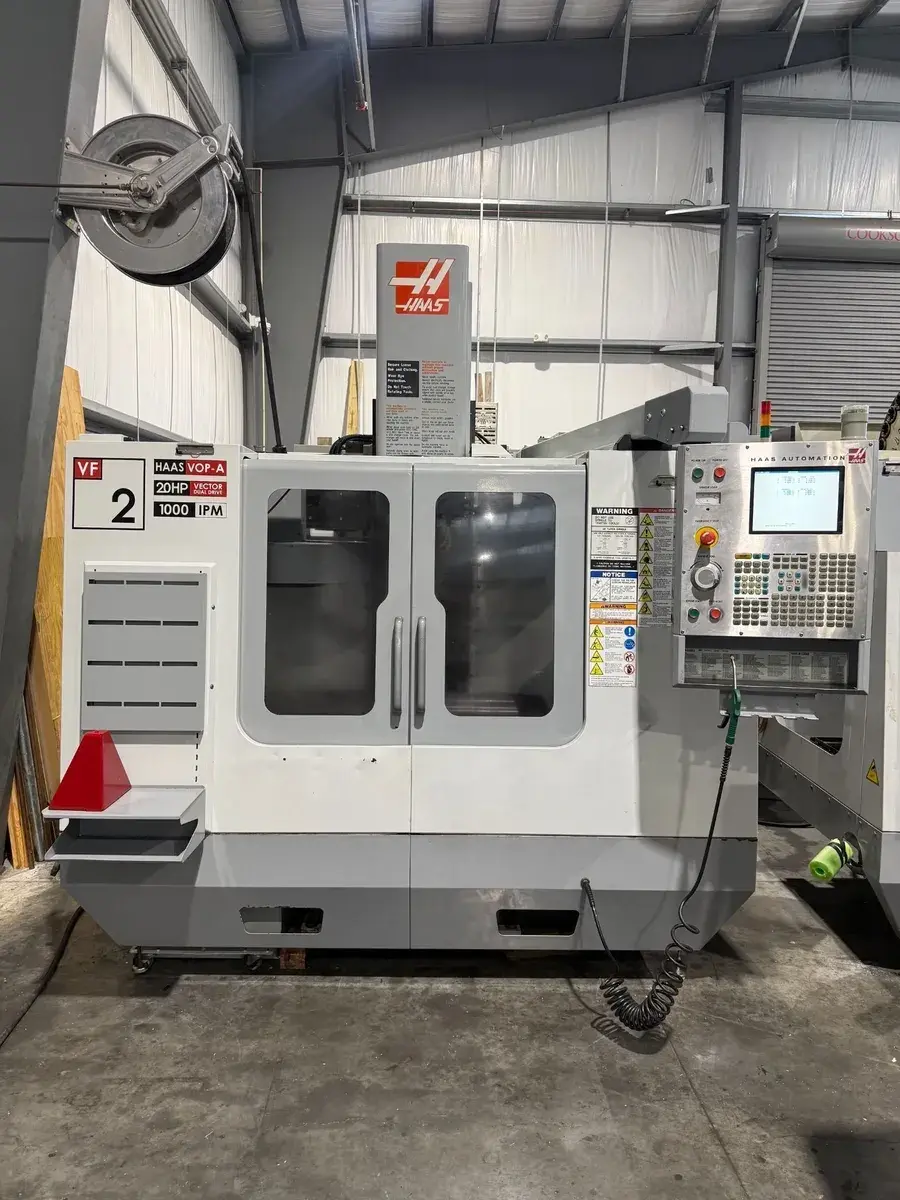

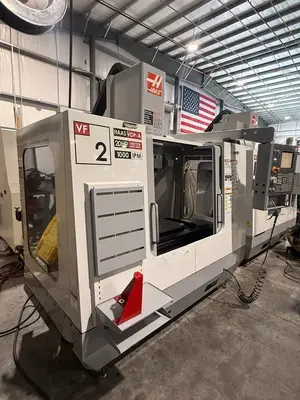

2005 HAAS VF-2D
Have one to sell?
ConditionUsed
1 available

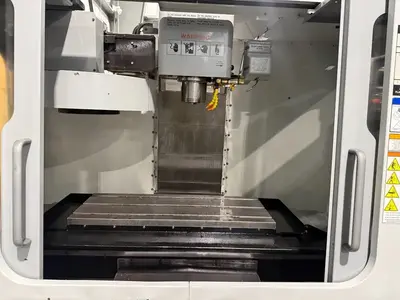

Used Vertical Machining Center equipped with HAAS CNC Control, brushless servos, programmable coolant nozzle, and chip auger. Features CAT-40 taper, 7,500 RPM spindle, 30"x16"x20" travel, and 20-tool ATC.
Minimum/Maximum distance, spindle nose to table- 4’’/24’’
Spindle speeds- 0 – 7500 R.P.M.
Maximum weight on table- 3,000 Lbs.
Rapid feed rate on X, Y, & Z axes- 1000 I.P.M.
Maximum cutting feed rate- 300 I.P.M.
Number of tools in changer- 20
Maximum tool diameter- 3.5”
Maximum tool weight- 12 Lbs.
Brushless servos on all axis
HAAS CNC Control
Control options- Rigid Tapping, DNC, M19 Spindle Orient, Quick Code,

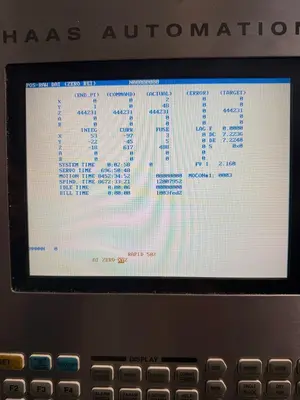

Machine hours -Servo Time 696 Motion Time 8,452 , Spindle Time 8,672
Programmable coolant nozzle

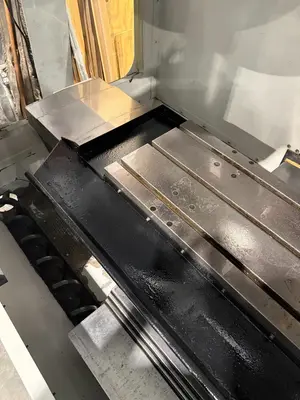

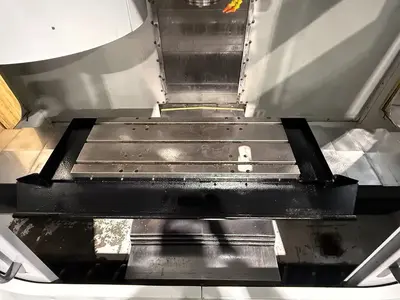

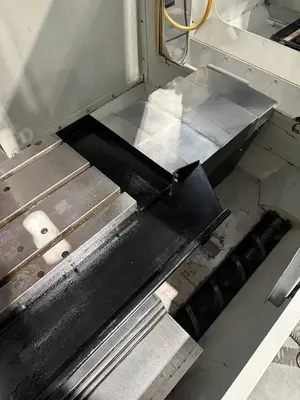

Telescopic way covers
Air gun
(6) Leveling pads
BIJUR automatic lubrication system
External coolant tank & Coolant pump

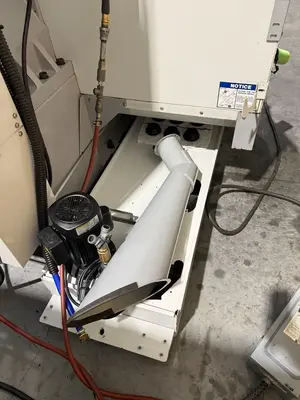

Chip auger

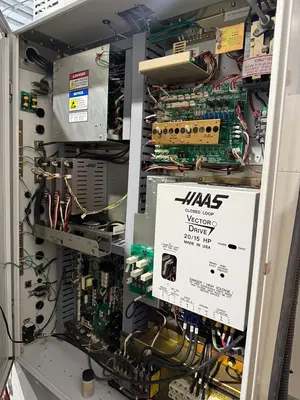

20 H.P. spindle drive motor
Machine is wired for 230 Volt / 3 phase / 60 HZ
Used Vertical Machining Center equipped with HAAS CNC Control, brushless servos, programmable coolant nozzle, and chip auger. Features CAT-40 taper, 7,500 RPM spindle, 30"x16"x20" travel, and 20-tool ATC.
Imperial
| X | 30" |
| Y | 16" |
| Z | 20" |
| Power | 20 hp |
| RPM | 7,500 RPM |
| # ATC | 20 |
| Taper | CAT-40 |

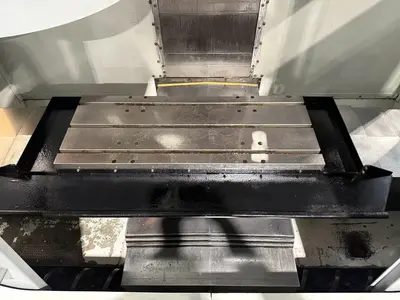

| Table-W | 14" |
| Table-L | 36" |
| # Axis | 3 |
| Control | CNC (HAAS) |
| Dimensions | 88" L-R x 90" F-B x 96" H |
| Weight | 7500 Lbs |
Minimum/Maximum distance, spindle nose to table- 4’’/24’’
Spindle speeds- 0 – 7500 R.P.M.
Maximum weight on table- 3,000 Lbs.
Rapid feed rate on X, Y, & Z axes- 1000 I.P.M.
Maximum cutting feed rate- 300 I.P.M.
Number of tools in changer- 20
Maximum tool diameter- 3.5”
Maximum tool weight- 12 Lbs.
Brushless servos on all axis
HAAS CNC Control
Control options- Rigid Tapping, DNC, M19 Spindle Orient, Quick Code,
Machine hours -Servo Time 696 Motion Time 8,452 , Spindle Time 8,672
Programmable coolant nozzle
Telescopic way covers
Air gun
(6) Leveling pads
BIJUR automatic lubrication system
External coolant tank & Coolant pump
Chip auger
20 H.P. spindle drive motor
Machine is wired for 230 Volt / 3 phase / 60 HZ
