2022 DOOSAN DNM 6700
Have one to sell?
ConditionUsed
1 available
2022 used DOOSAN DNM 6700 Vertical Machining Center features FANUC 0i-Plus control, 12,000 rpm spindle, 3,446 hours, Nikken 4th axis, and tool changer with 30 slots. Equipped with chip conveyor, spindle cooling, and Renishaw probing system.
Large Linear Roller Guides (X - 45 mm \ 1.772", Y - 45 mm \ 1.772", Z - 45 mm \ 1.772")
Servo motors mounted directly to the oversized and pre-tensioned ball screws (X - 40 mm \1.575", Y - 40 mm \ 1.575", Z - 40 mm \ 1.575")
Fast rapid traverse rate (X - 36 m/min \ 1,417 ipm, Y - 36 m/min \ 1,417 ipm, Z - 30 m/min \1,181 ipm)
X axis travel 1,300 mm (51.18")
Y axis travel 670 mm (26.38")
Z axis travel 625 mm (24.60")
Table loading area 1,500 mm x 670 mm, (59.05" x 26.37")
Allowable table load 1,300 kg (2,866 lbs)
Table T-slot spacing x width (5) - 125mm x 18H8,(5) - 4.92" x .71"

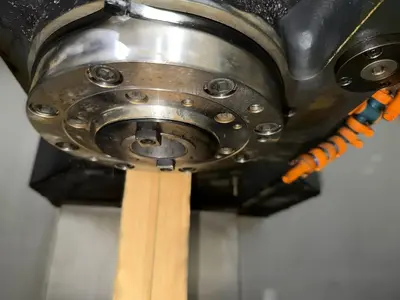

SPINDLE:
High precision, direct coupled spindle design with (11 / 18.5 kw \ 15 / 25 hp motor, 12,000 rpm)
Spindle nose to table top 150 mm to 775 mm (5.9" to 30.51")
Big Plus Spindle system CAT 40 Big Plus
Spindle speed 12,000 rpm
AC Spindle Motor (S3 15%) 11 / 18.5 kw (15 / 25 hp)
Spindle Torque (S3 15%) 118 nm (87 ft-lbs)
Spindle Acceleration \ Deceleration time 0 - 12k (2.06 sec) \ 12k - 0 (2.12 sec)
AUTOMATIC TOOL CHANGER:
Cam Type, Double Arm ATC
Number of Tools: 30
Tool Shank CAT 40
Pull Stud (Supply Company #) 711-23
Max. Tool Dia. \ Adjacent pots are empty (30) 80 mm \ 125 mm (3.15" \ 4.9")
Max. Tool Dia. \ Adjacent pots are empty (40\60) 76 mm \ 125 mm (2.99" \ 4.9")
Max. Tool Length 300 mm (11.8")
Max. Tool Weight 8 kg (17.6 lbs)

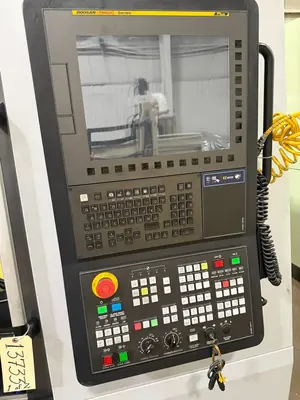

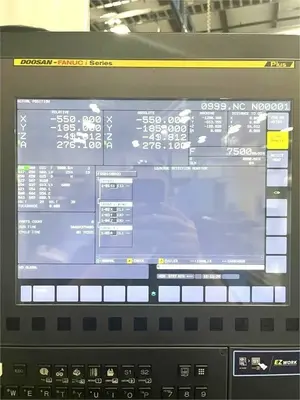

FANUC 0i-Plus control with iHMi touch screen interface

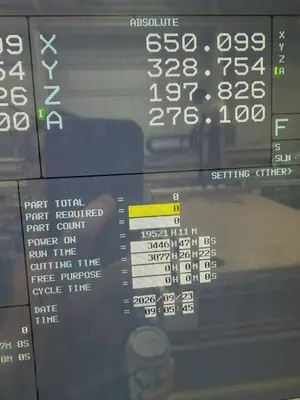

3,446 approximate hours
Thru spindle coolant

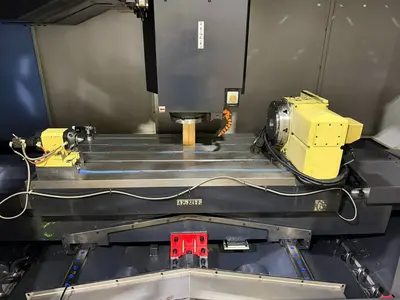

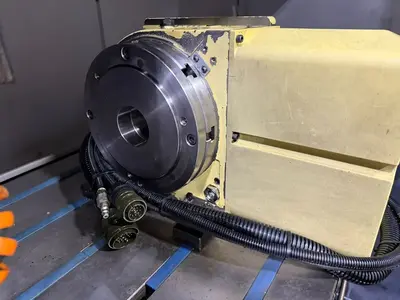

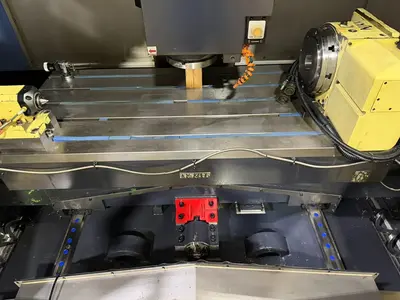

Nikken 4th axis
Chip conveyor
Sound enclosure
AICC II (200 block look ahead) + 1 gig data server
Renishaw OMI-2T optical receiver, Wireless Tool Touch Probe, GUI software
Doosan Tool Load Monitoring
Adaptive Feedrate Control
Doosan Smart Thermal Monitoring (Software algorithm based thermal compensation system)
Remote control pendant

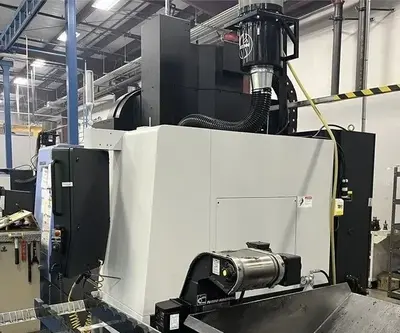

Spindle oil chiller
Spindle orientation
Load meter
Rigid tapping
2022 used DOOSAN DNM 6700 Vertical Machining Center features FANUC 0i-Plus control, 12,000 rpm spindle, 3,446 hours, Nikken 4th axis, and tool changer with 30 slots. Equipped with chip conveyor, spindle cooling, and Renishaw probing system.
Large Linear Roller Guides (X - 45 mm \ 1.772", Y - 45 mm \ 1.772", Z - 45 mm \ 1.772")
Servo motors mounted directly to the oversized and pre-tensioned ball screws (X - 40 mm \1.575", Y - 40 mm \ 1.575", Z - 40 mm \ 1.575")
Fast rapid traverse rate (X - 36 m/min \ 1,417 ipm, Y - 36 m/min \ 1,417 ipm, Z - 30 m/min \1,181 ipm)
X axis travel 1,300 mm (51.18")
Y axis travel 670 mm (26.38")
Z axis travel 625 mm (24.60")
Table loading area 1,500 mm x 670 mm, (59.05" x 26.37")
Allowable table load 1,300 kg (2,866 lbs)
Table T-slot spacing x width (5) - 125mm x 18H8,(5) - 4.92" x .71"
SPINDLE:
High precision, direct coupled spindle design with (11 / 18.5 kw \ 15 / 25 hp motor, 12,000 rpm)
Spindle nose to table top 150 mm to 775 mm (5.9" to 30.51")
Big Plus Spindle system CAT 40 Big Plus
Spindle speed 12,000 rpm
AC Spindle Motor (S3 15%) 11 / 18.5 kw (15 / 25 hp)
Spindle Torque (S3 15%) 118 nm (87 ft-lbs)
Spindle Acceleration \ Deceleration time 0 - 12k (2.06 sec) \ 12k - 0 (2.12 sec)
AUTOMATIC TOOL CHANGER:
Cam Type, Double Arm ATC
Number of Tools: 30
Tool Shank CAT 40
Pull Stud (Supply Company #) 711-23
Max. Tool Dia. \ Adjacent pots are empty (30) 80 mm \ 125 mm (3.15" \ 4.9")
Max. Tool Dia. \ Adjacent pots are empty (40\60) 76 mm \ 125 mm (2.99" \ 4.9")
Max. Tool Length 300 mm (11.8")
Max. Tool Weight 8 kg (17.6 lbs)
FANUC 0i-Plus control with iHMi touch screen interface
3,446 approximate hours
Thru spindle coolant
Nikken 4th axis
Chip conveyor
Sound enclosure
AICC II (200 block look ahead) + 1 gig data server
Renishaw OMI-2T optical receiver, Wireless Tool Touch Probe, GUI software
Doosan Tool Load Monitoring
Adaptive Feedrate Control
Doosan Smart Thermal Monitoring (Software algorithm based thermal compensation system)
Remote control pendant
Spindle oil chiller
Spindle orientation
Load meter
Rigid tapping
