X: 30"
Y: 16"
Z: 20"
Power: 20 HP
RPM: 0-7,500
ATC Size: 20
Taper: CT-40
Table-W: 14"
Table-L: 36"
Spindle Nose to Table: 4" to 24" (Min/Max)
Max Table Load: 3,000 lbs
Rapid Traverse (X, Y, Z): 1,000 IPM
Max Cutting Feed Rate: 300 IPM
Max Tool Diameter: 3.5"
Max Tool Weight: 12 lbs
Electrical: 230V / 3 Phase / 60 Hz
Approximate Weight: 7,500 lbs
Approximate Dimensions: 88" (L-R) x 90" (F-B) x 96" (H)
Prewired for 4th Axis
Rigid Tapping
Rotation and Scaling
DNC
M19 Spindle Orient
Macros
Quick Code
Pre-Orient Tapping
Advanced Tool Management
Intuitive Programming System
Programmable Coolant Nozzle

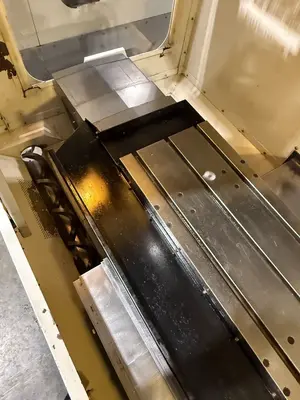

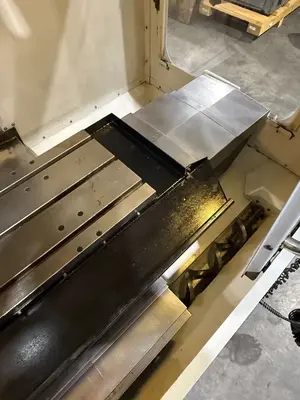

Telescopic Way Covers
Air Gun
(6) Leveling Pads
Bijur Automatic Lubrication System

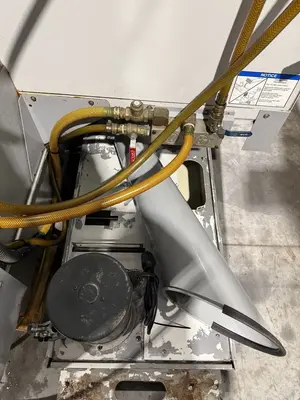

External Coolant Tank and Coolant Pump
Chip Auger

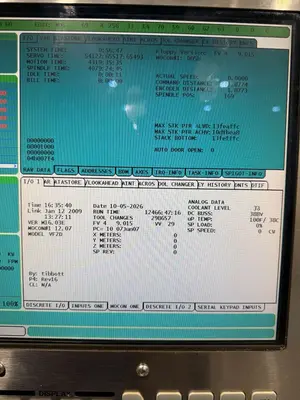

Approximately 4,079 Spindle Hours
Approximately 4,319 Motion Hours
Approximately 54,122 Servo Hours
Control: Haas
This equipment is currently unavailable. Similar equipment available now is shown below.
