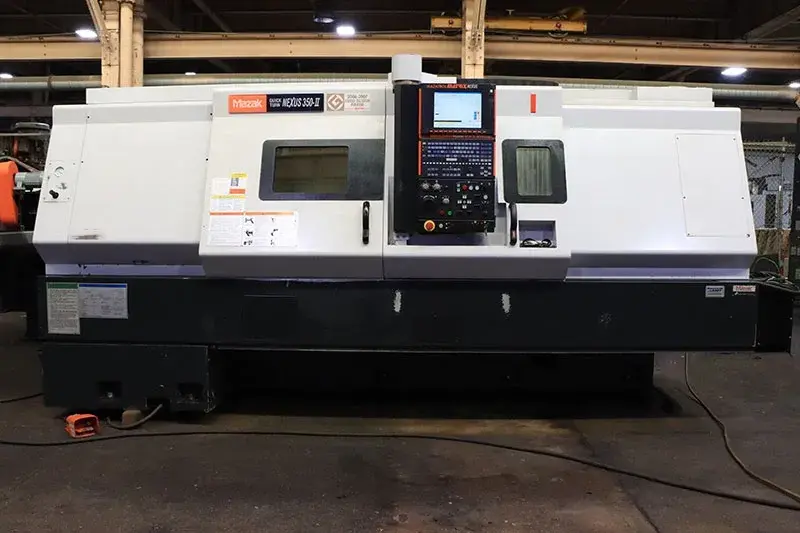

2008 Mazak Quick Turn Nexus 350-II CNC Lathe with 15" Chuck
Have one to sell?
ConditionUsed
1 available

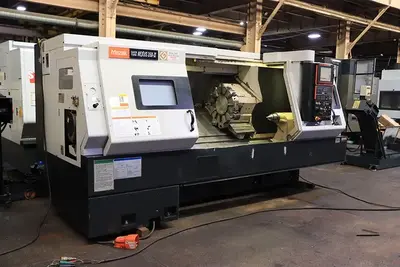

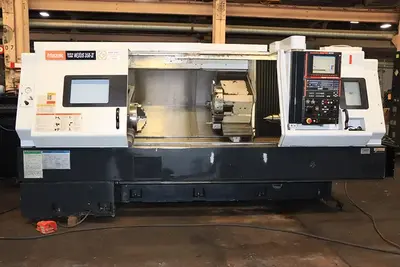

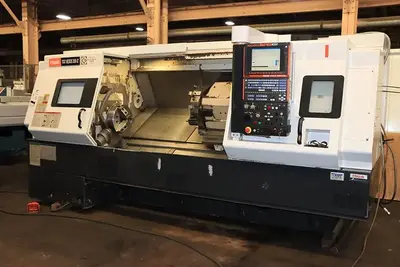

This 2008 Mazak Quick Turn Nexus 350-II CNC lathe carries a 15" 3-jaw hydraulic chuck, 4.0" bar capacity, and 26.77" of swing over 63.625" of Z-axis travel. Its 40/30 HP spindle turns up to 3,300 RPM through an A2-11 nose and 4.41" bore, paired with a 12 position drum turret, Tool Eye, and tailstock.
Swing Over Carriage: 16.54"
X-Axis Travel: 8.875"
Z-Axis Travel: 63.625"
Spindle Nose: A2-11
Spindle Bore: 4.41"

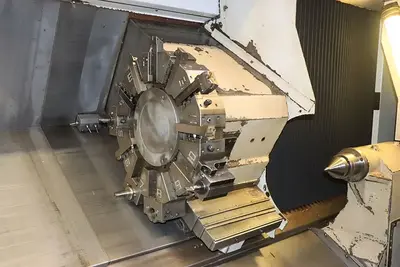

Turret: 12 Position Drum Type
Number of Tools: 12
Turning Tool Shank: 1"
Boring Bar Shank Diameter: 1-1/2"

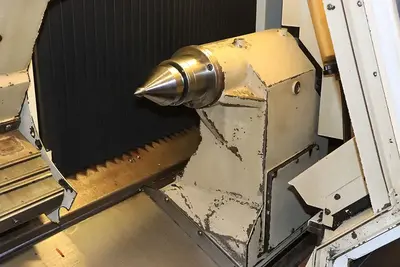

Tailstock Stroke: 62.375"
Tailstock Taper: MT#5
Approximate Weight: 17,000 lbs
Tool Eye

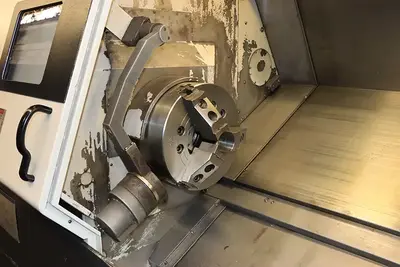

3-Jaw Hydraulic Chuck

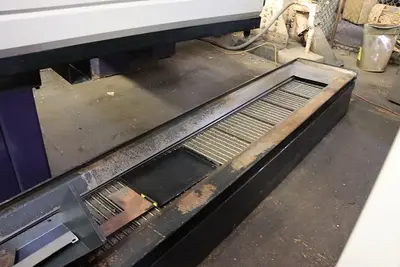

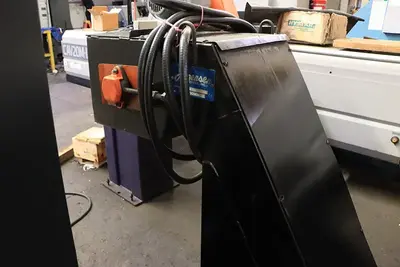

Chip Conveyor
All Available Toolholders
This 2008 Mazak Quick Turn Nexus 350-II CNC lathe carries a 15" 3-jaw hydraulic chuck, 4.0" bar capacity, and 26.77" of swing over 63.625" of Z-axis travel. Its 40/30 HP spindle turns up to 3,300 RPM through an A2-11 nose and 4.41" bore, paired with a 12 position drum turret, Tool Eye, and tailstock.
Imperial
| Swing | 26.77" |
| Machining Length | 60.7" |
| # Axis | 2 |
| Chuck Size | 15" |
| Bar Capacity | 4" |
| Power | 40 hp |
| Max RPM | 3,300 RPM |
| Turning Dia | 16.54" |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |

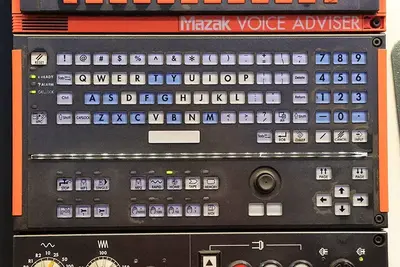

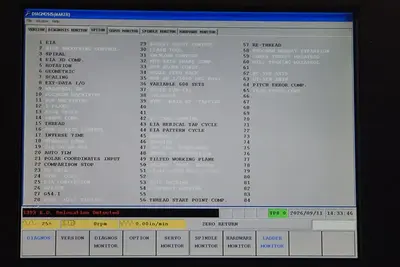

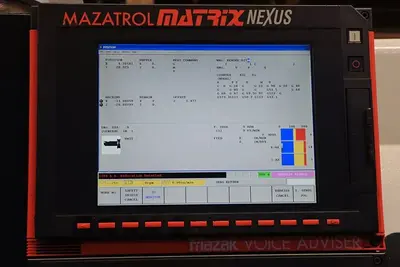

| Control | CNC (Mazatrol Nexus Matrix) |
Swing Over Carriage: 16.54"
X-Axis Travel: 8.875"
Z-Axis Travel: 63.625"
Spindle Nose: A2-11
Spindle Bore: 4.41"
Turret: 12 Position Drum Type
Number of Tools: 12
Turning Tool Shank: 1"
Boring Bar Shank Diameter: 1-1/2"
Tailstock Stroke: 62.375"
Tailstock Taper: MT#5
Approximate Weight: 17,000 lbs
Tool Eye
3-Jaw Hydraulic Chuck
Chip Conveyor
All Available Toolholders
