| X | 11.8" | 299.72 mm |
| Y | 10.24" | 260.1 mm |
| Z | 11.81" | 299.97 mm |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 16 | 16 |
| Taper | BT-30 | BT-30 |
| Table-W | 10.24" | 260.1 mm |
| Table-L | 22.05" | 560.07 mm |
| # Axis | 3 | 3 |
| Control | CNC (Siemmens) | CNC (Siemmens) |
Approximately 5 Hours of Runtime
Max Table Load: 330.69 lbs
T-Slots: 3 x 0.55" x 3.15"
Spindle Nose to Table: 5.91" to 17.72"
Spindle to Column: 12.99"
Rapid Traverse: 1,181.10 IPM
Cutting Feed: 393.70 IPM

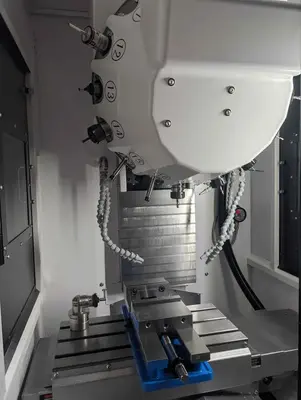

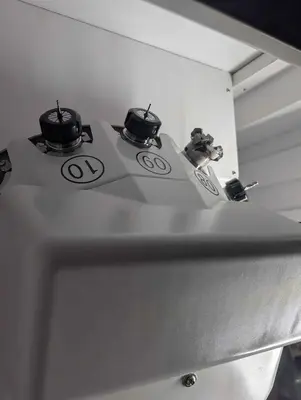

ATC Type: Wheel
Max Tool Diameter: 2.48"
Max Tool Length: 7.87"
Max Tool Weight: 6.61 lbs
Tool to Tool: 1 Second

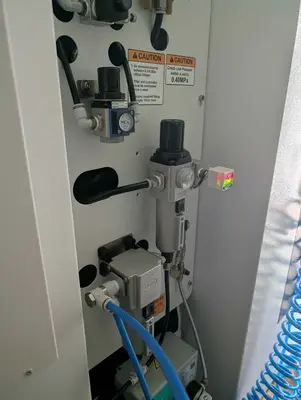

Air Pressure: 60 to 120 PSI
Coolant Tank Capacity: 21.13 Gallons
Approximate Weight: 4,806.07 lbs
Approximate Dimensions: 79.53" x 39.37" x 92.91"

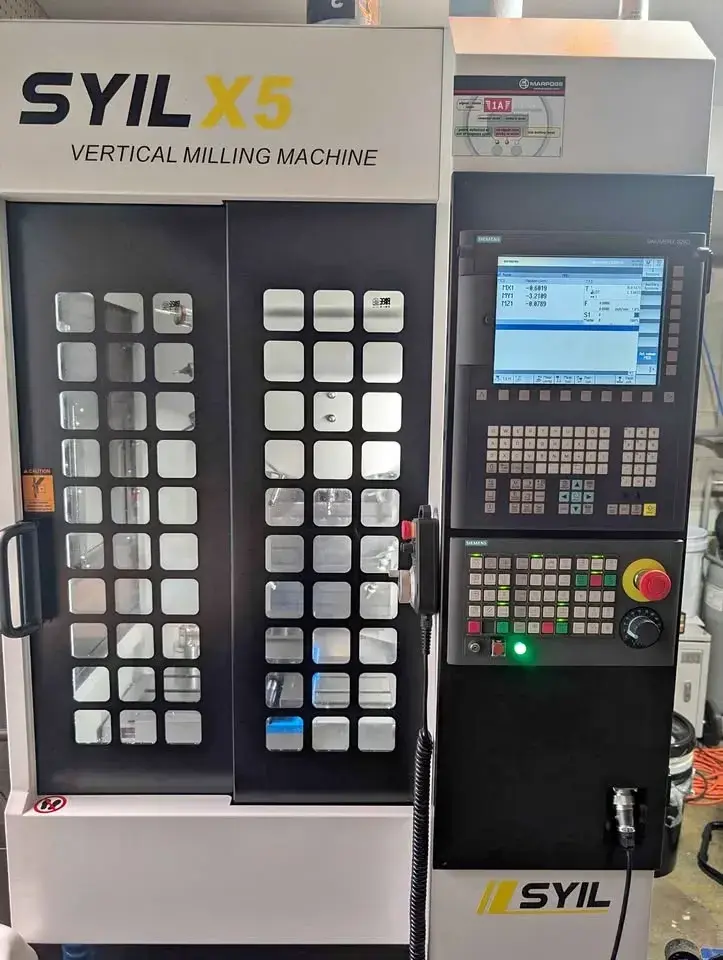

Siemens Sinumerik 828D Control
Direct-Drive Spindle

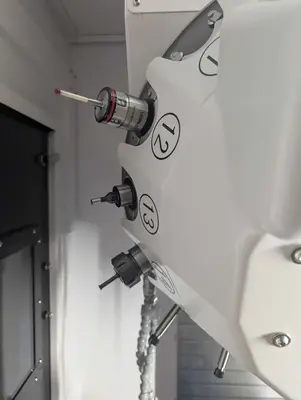

Marposs VOP40 Probe System
Siemens Extended Measuring Cycles

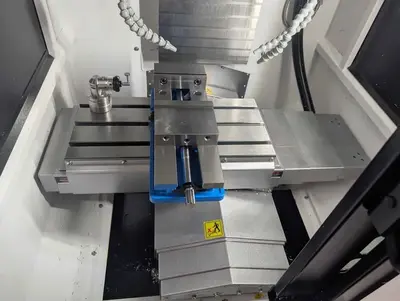

Mounted Vise
Integrated Coolant Lines
Tooling Included
This equipment is currently unavailable. Similar equipment available now is shown below.
