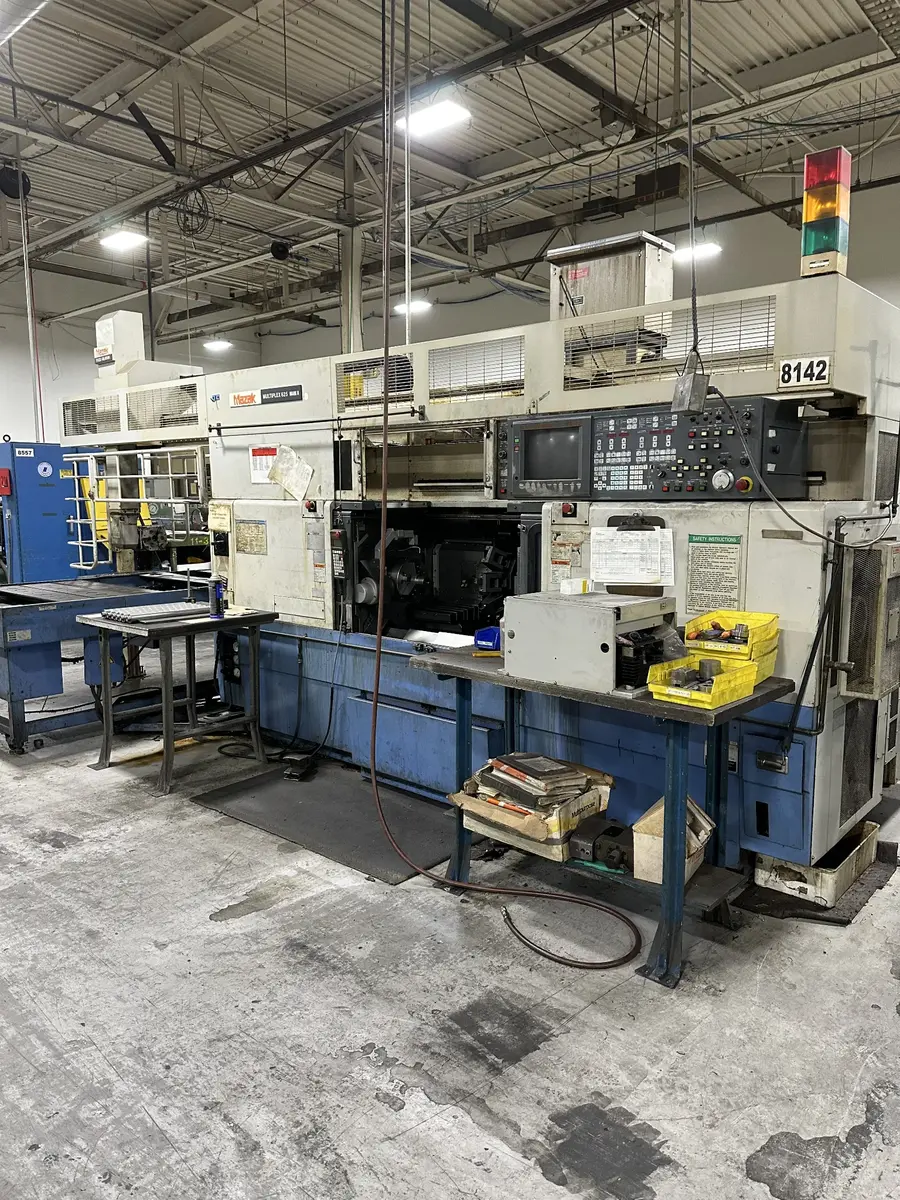

1998 MAZAK MULTIPLEX 625 MARK II with Gantry
Have one to sell?
ConditionUsed
1 available
1998 Mazak Multiplex 625 Mark II with Gantry: CNC Lathe, used condition. Featuring max swing diameter of 15.35", two spindles with speeds up to 5000 RPM, 20HP motor, and dual 12-capacity turrets for turning/milling.
MAX SWING DIAMETER: 15.35"
MAX DISTANCE BETWEEN SPINDLES: 46.45"
NO. OF SPINDLES: 2
SPINDLE NOSE/ SPINDLE BORE: A2-6/2.99"
SPINDLE SPEED: 35-5000 RPM
MAIN SPINDLE MOTOR: 20HP AC
SPINDLE INDEXING INCREMENTS: .001 DEGREE
TURRET TYPE: 12 DRUM TYPE, X 2/VDI
TURRET TOOL CAPACITY: 12 FOR TURNING
12 FOR MILLING
ROTARY TOOL SPEED: 120- 3000 RPM
ROTARY HORSEPOWER: 4 HP AC
1998 Mazak Multiplex 625 Mark II with Gantry: CNC Lathe, used condition. Featuring max swing diameter of 15.35", two spindles with speeds up to 5000 RPM, 20HP motor, and dual 12-capacity turrets for turning/milling.
MAX SWING DIAMETER: 15.35"
MAX DISTANCE BETWEEN SPINDLES: 46.45"
NO. OF SPINDLES: 2
SPINDLE NOSE/ SPINDLE BORE: A2-6/2.99"
SPINDLE SPEED: 35-5000 RPM
MAIN SPINDLE MOTOR: 20HP AC
SPINDLE INDEXING INCREMENTS: .001 DEGREE
TURRET TYPE: 12 DRUM TYPE, X 2/VDI
TURRET TOOL CAPACITY: 12 FOR TURNING
12 FOR MILLING
ROTARY TOOL SPEED: 120- 3000 RPM
ROTARY HORSEPOWER: 4 HP AC
