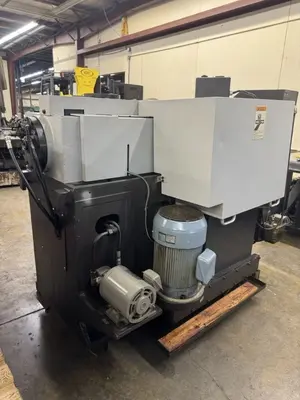

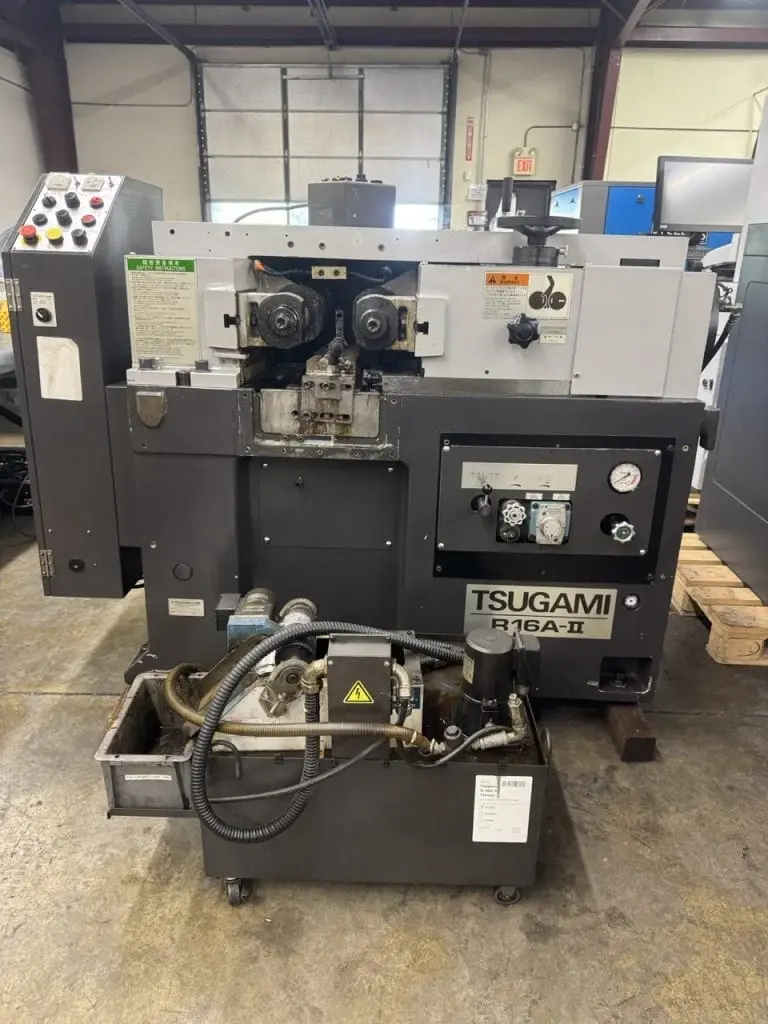

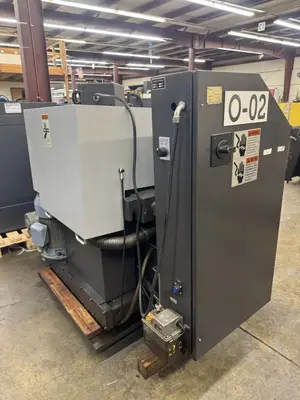

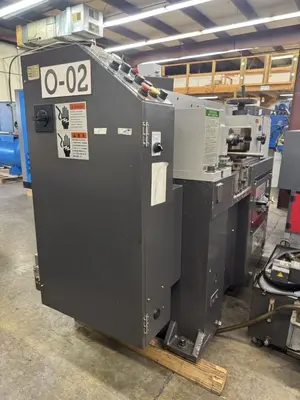

2015 Tsugami R16A-II Thread Rolling Machine with 16-Ton Force
Have one to sell?
ConditionUsed
1 available
Used 2015 Tsugami R16A-II two-die thread rolling machine delivers up to 16 tons of rolling force, with a 2.95" maximum in-feed rolling diameter and a 5.91" maximum rolling length. Its hydraulic system runs four selectable spindle speeds from 16 to 71 RPM and accepts rolling dies up to 7.87" OD.
Maximum Rolling Force: 16 Tons (35,969.72 lbf)
Maximum Rolling Diameter: 2.95"
Maximum In-Feed Thread Length: 5.91"
Maximum Thread Pitch: 0.20"
Rolling Method: In-Feed
Number of Rolling Dies: 2
Maximum Rolling Die OD: 7.87"
Rolling Die Bore / Spindle Diameter: 2.13"
Spindle Speeds: 16 / 30 / 48 / 71 RPM
Spindle Drive: Approximately 5 HP
Country of Manufacture: Japan
Approximate Weight: 5,700 to 5,950 lbs
Hydraulic Two-Die Thread Rolling System
Opposed Rolling Spindles
Adjustable Rolling Pressure
Adjustable Spindle Position
Center Workrest Capability
Compatible with R15A Tooling (Rolling Dies, Support Blades, Centers)
Used 2015 Tsugami R16A-II two-die thread rolling machine delivers up to 16 tons of rolling force, with a 2.95" maximum in-feed rolling diameter and a 5.91" maximum rolling length. Its hydraulic system runs four selectable spindle speeds from 16 to 71 RPM and accepts rolling dies up to 7.87" OD.
Imperial
| Max Diameter | 2.9" |
| Max Length of Thread | 5.91" |
| Control | CNC |
Maximum Rolling Force: 16 Tons (35,969.72 lbf)
Maximum Rolling Diameter: 2.95"
Maximum In-Feed Thread Length: 5.91"
Maximum Thread Pitch: 0.20"
Rolling Method: In-Feed
Number of Rolling Dies: 2
Maximum Rolling Die OD: 7.87"
Rolling Die Bore / Spindle Diameter: 2.13"
Spindle Speeds: 16 / 30 / 48 / 71 RPM
Spindle Drive: Approximately 5 HP
Country of Manufacture: Japan
Approximate Weight: 5,700 to 5,950 lbs
Hydraulic Two-Die Thread Rolling System
Opposed Rolling Spindles
Adjustable Rolling Pressure
Adjustable Spindle Position
Center Workrest Capability
Compatible with R15A Tooling (Rolling Dies, Support Blades, Centers)
