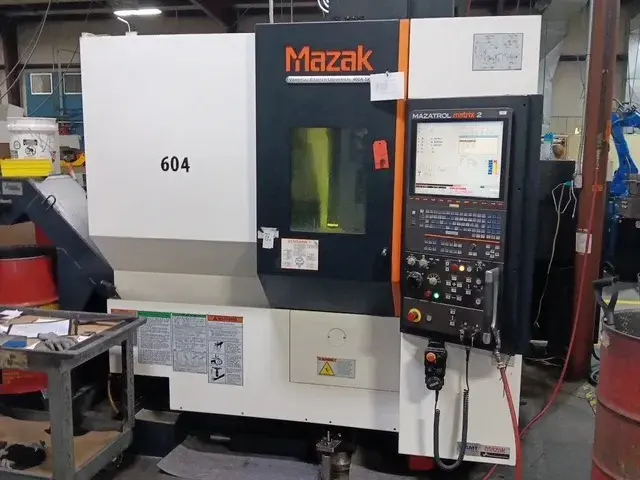

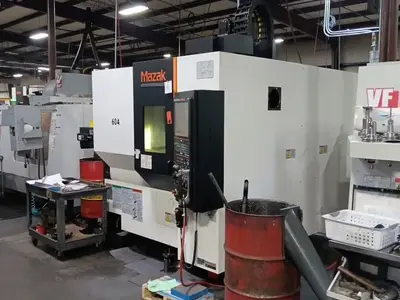

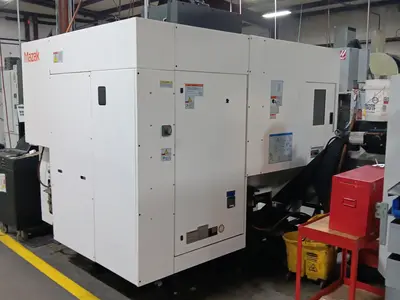

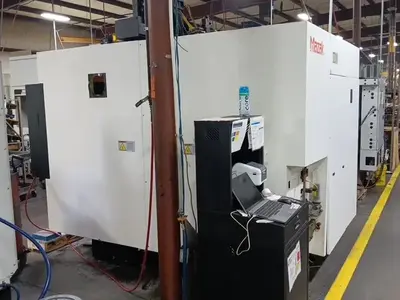

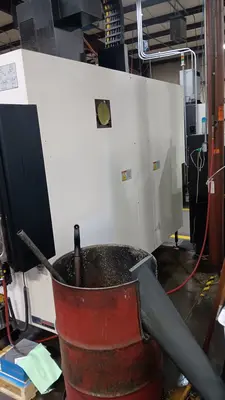

2013 Mazak VCU-400A 5X 5-Axis Vertical Machining Center with TSC
Have one to sell?
ConditionUsed
1 available
This 2013 Mazak VCU-400A 5X is a simultaneous 5-axis vertical machining center with a 15.74" trunnion rotary table, a 30-tool CAT 40 magazine, and 213 psi high-pressure through spindle coolant. It runs a Mazatrol Matrix 2 control and a 12,000 RPM spindle rated at 25 HP (5 min.), with 19.88" x 15.75" x 20.07" of X, Y, and Z travel.
Trunnion Rotary Table Diameter: 15.74"
Spindle Motor: 15 HP (40% ED), 25 HP (5 Min.)
Through Spindle Coolant Pressure: 213 psi
Guideways: Roller Guide
RDT-821 5-Axis Trunnion Rotary Table
High-Pressure Through Spindle Coolant
19" Color LCD
EIA/ISO Code Input Function
Additional EIA/ISO Functions
EIA/ISO Simultaneous 5-Axis Function
Tilted Working Plane (G68.2 / G68.3)
Tool Tip Point Control, Simultaneous 5 Axes (G43.4)
Tool Radius Compensation, 5-Axis (G41.5 / G42.5)
Shape Compensation for Rotary Axes (G61.1)
MAZACC-2D Shape Compensation Software (G61.1)
MAZACC-3D High-Speed Software Package (G61.1 and G05P2)
Synchronized Tapping (G84.2 / G84.3)
Magazine Door for Loading Tools
LAN Port in Electrical Cabinet (Data I/O Only)
2 USB Ports
MTConnect Preparation
Windows 7 Operating System
Jorgensen Hinge Chip Conveyor, Left Side Discharge (48" Discharge)
Full Coverage Chip and Coolant Guard Without Top Cover
Operator Door Interlock with Lock-Switch
LED Work Light
Power Transformer for North American Market
Relocation Device
This 2013 Mazak VCU-400A 5X is a simultaneous 5-axis vertical machining center with a 15.74" trunnion rotary table, a 30-tool CAT 40 magazine, and 213 psi high-pressure through spindle coolant. It runs a Mazatrol Matrix 2 control and a 12,000 RPM spindle rated at 25 HP (5 min.), with 19.88" x 15.75" x 20.07" of X, Y, and Z travel.
The Mazak VCU-400A 5X, also searched as Mazak Vertical Center Universal 400A 5X, VCU 400A 5X, VCU400A, or VCU-400, is a simultaneous 5-axis vertical machining center (5-axis VMC) with a trunnion rotary table.
This 2013 machine runs on roller guides and comes equipped with the MAZACC-3D high-speed software package, tool tip point control, 5-axis tool radius compensation, tilted working plane, and synchronized tapping. It also has a Jorgensen hinge chip conveyor, magazine door for tool loading, LAN and USB ports, and MTConnect preparation.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| X | 19.88" |
| Y | 15.75" |
| Z | 20.07" |
| # Axis | 5 |
| Power | 25 hp |
| RPM | 12,000 RPM |
| # ATC | 30 |
| Taper | CT-40 |
| Control | CNC (Mazatrol Matrix 2) |
Trunnion Rotary Table Diameter: 15.74"
Spindle Motor: 15 HP (40% ED), 25 HP (5 Min.)
Through Spindle Coolant Pressure: 213 psi
Guideways: Roller Guide
RDT-821 5-Axis Trunnion Rotary Table
High-Pressure Through Spindle Coolant
19" Color LCD
EIA/ISO Code Input Function
Additional EIA/ISO Functions
EIA/ISO Simultaneous 5-Axis Function
Tilted Working Plane (G68.2 / G68.3)
Tool Tip Point Control, Simultaneous 5 Axes (G43.4)
Tool Radius Compensation, 5-Axis (G41.5 / G42.5)
Shape Compensation for Rotary Axes (G61.1)
MAZACC-2D Shape Compensation Software (G61.1)
MAZACC-3D High-Speed Software Package (G61.1 and G05P2)
Synchronized Tapping (G84.2 / G84.3)
Magazine Door for Loading Tools
LAN Port in Electrical Cabinet (Data I/O Only)
2 USB Ports
MTConnect Preparation
Windows 7 Operating System
Jorgensen Hinge Chip Conveyor, Left Side Discharge (48" Discharge)
Full Coverage Chip and Coolant Guard Without Top Cover
Operator Door Interlock with Lock-Switch
LED Work Light
Power Transformer for North American Market
Relocation Device
