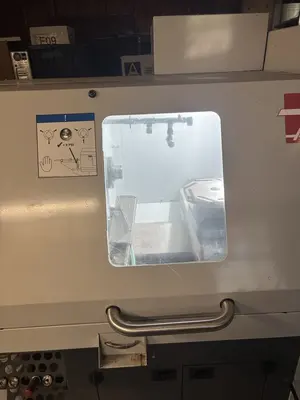

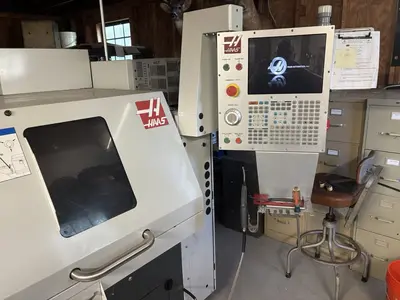

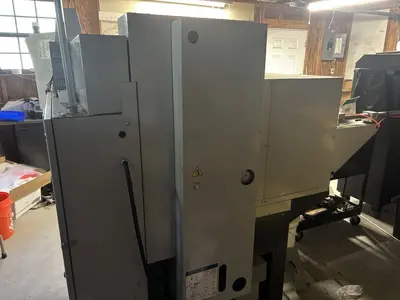

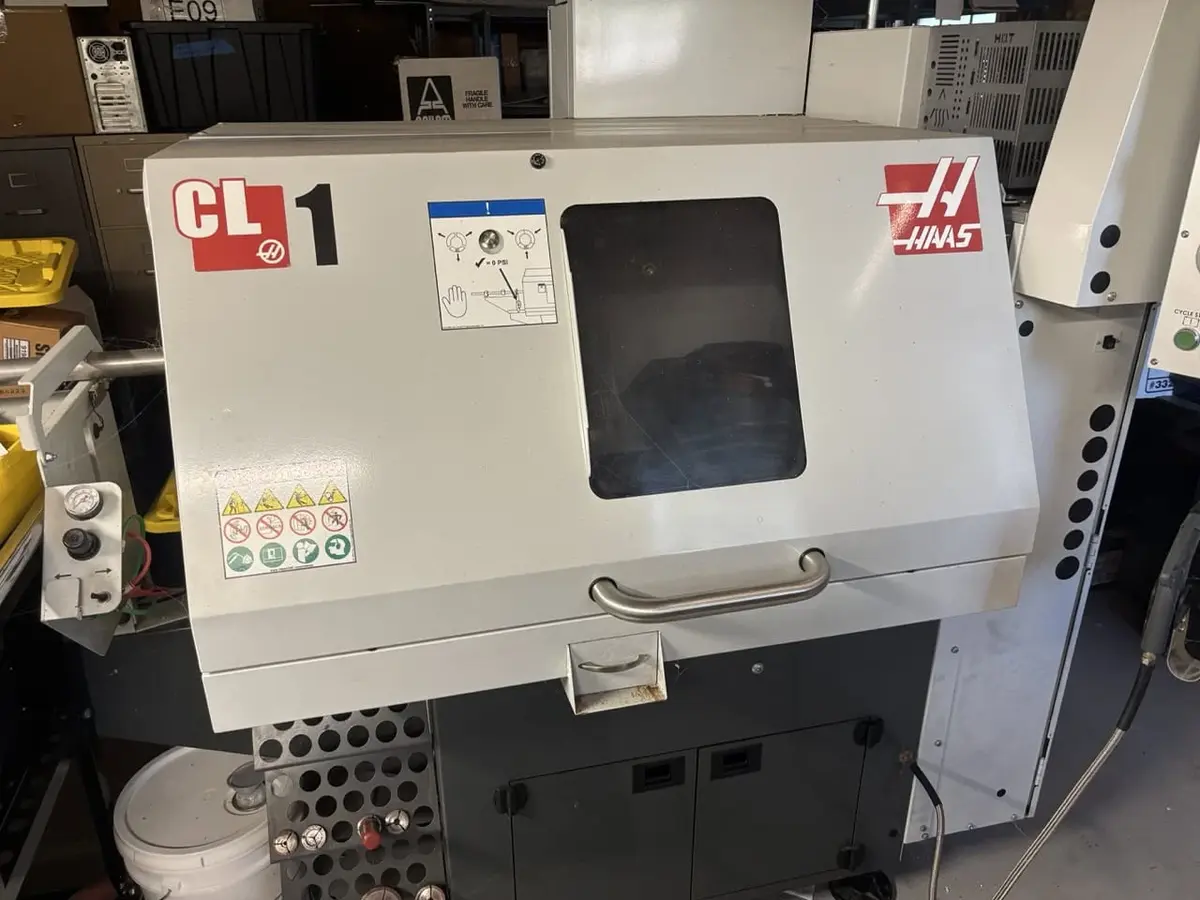

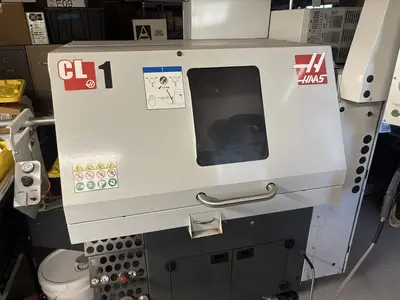

2023 HAAS CL-1
Have one to sell?
ConditionUsed
1 available
CNC Lathe in used condition. Features include 1" bar capacity, 6,000 RPM spindle, 5 HP motor, and equipped with a Haas CNC Controller and Pneumatic Bar Feeder.
Bar Capacity: 1″
Max Swing Over Cross Slide: 11″
Max Cutting Diameter: 5″
Max Cutting Length: 12″
Max Spindle Speed: 6,000 RPM
Spindle Motor Power: 5 HPSpindle Nose: 5C
Spindle Bore Diameter: 1.25″
X-Axis Travel: 12″
Z-Axis Travel: 8″
Rapid Traverse Rates: 757 IPM
Max Cutting Feedrate: 500 IPM
ATC: 8
Approximate Machine Weight: 1,940lbs
Approximate Machine Dimensions: 68″ x 54″ x 68″
Haas CNC Controller

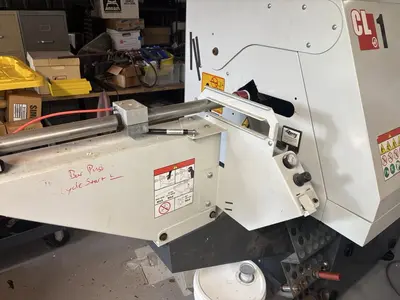

Haas Pneumatic Bar Feeder
CNC Lathe in used condition. Features include 1" bar capacity, 6,000 RPM spindle, 5 HP motor, and equipped with a Haas CNC Controller and Pneumatic Bar Feeder.
Bar Capacity: 1″
Max Swing Over Cross Slide: 11″
Max Cutting Diameter: 5″
Max Cutting Length: 12″
Max Spindle Speed: 6,000 RPM
Spindle Motor Power: 5 HPSpindle Nose: 5C
Spindle Bore Diameter: 1.25″
X-Axis Travel: 12″
Z-Axis Travel: 8″
Rapid Traverse Rates: 757 IPM
Max Cutting Feedrate: 500 IPM
ATC: 8
Approximate Machine Weight: 1,940lbs
Approximate Machine Dimensions: 68″ x 54″ x 68″
Haas CNC Controller
Haas Pneumatic Bar Feeder
