X-Axis Travel: 64″
Y-Axis Travel: 32″
Z-Axis Travel: 30″

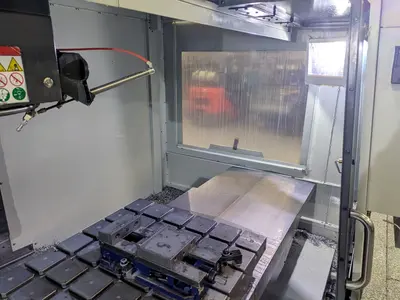

Table Size: 64″ × 28″
Table Capacity: 4,000 lbs
Spindle Speed: 12,000 RPM
Spindle Taper: CAT 40
Spindle Power: 30 HP
Spindle Nose to Table Max: 34″
Max Torque: 90 ft-lb @ 2,000 RPM

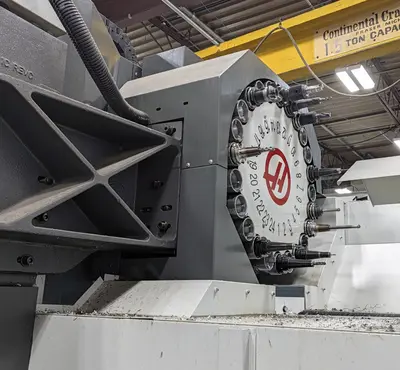

Auto Tool Changer: 24 Positions (SMTC)
Max cutting feed 500 IPM
X/Y/Z Rapids: 600 IPM
Coolant capacity 95 gal.

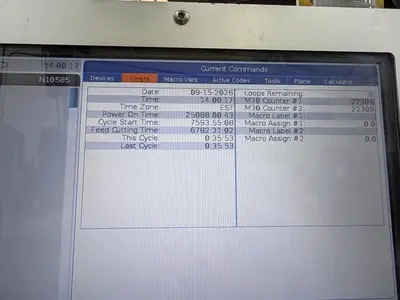

Approx Feed Cutting Time: 6783 Hours
Electrical Requirements: 220 V; 3 Ph; 50/60 Hz
Approx Dimensions: 195″ x 102″ x 129″
Approx Machine Weight: 24,000 lbs
Haas CNC Control
12K RPM Spindle
Rigid Tapping
Macros

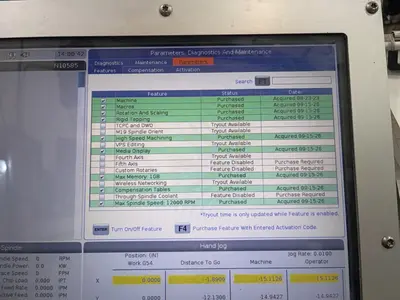

Rotation & Scaling
Media Display
Compensation Tables
Chip Auger
This equipment is currently unavailable. Similar equipment available now is shown below.
