2022 HAAS ST-35
Have one to sell?
ConditionUsed
1 available

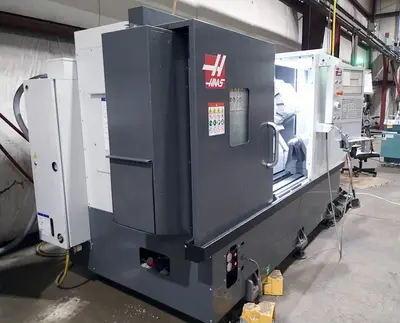

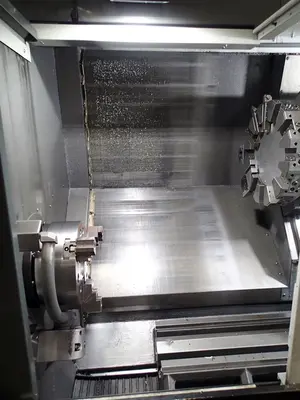

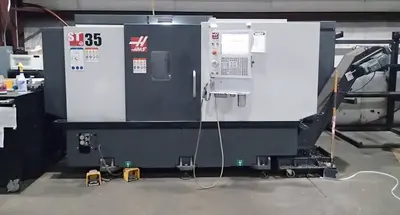

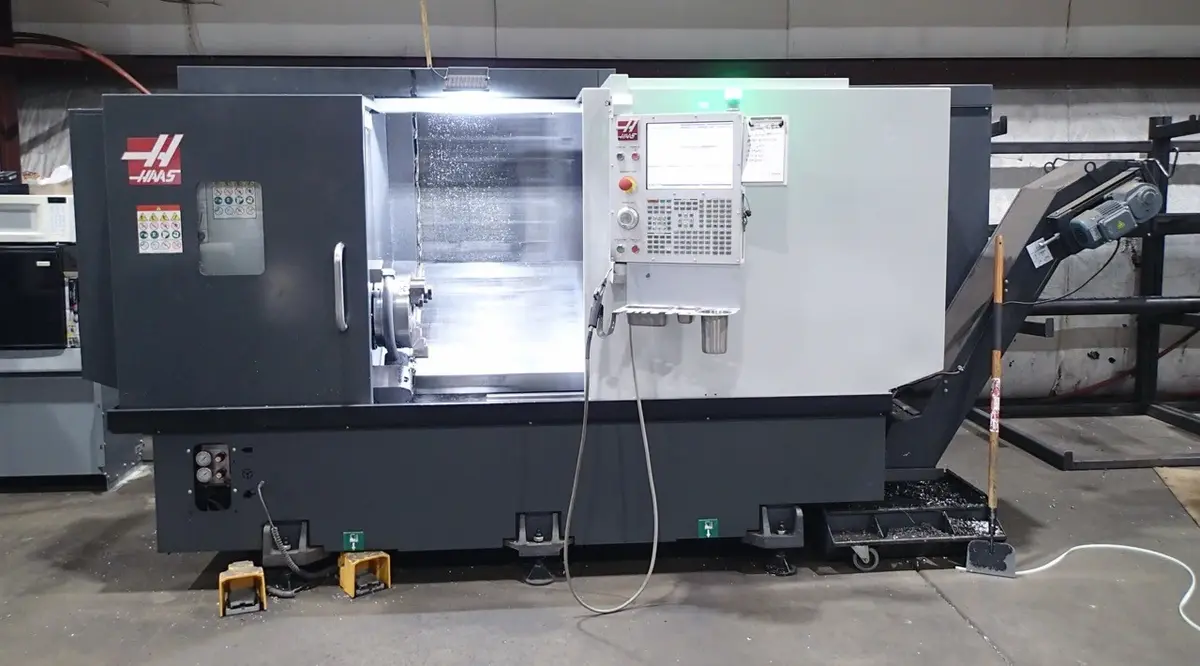

Used CNC Lathe, used with 12" chuck, 21" max part swing, 4.00" bar capacity, 12-station tool turret, and touch screen control. Equipped with Ethernet, Wi-Fi, spindle orientation, and automatic tool presetter. Power on: 4,086 hrs.
Chuck Size: 12.0″ (305 mm)
Max Part Swing: 21.0″ (533 mm)
Max Cutting Diameter (with BOT turret) 15.00 in 381 mm
Max Cutting Length: 32.5″ (826 mm)
Bar Capacity 4.00″ (102 mm)
Between Centers: 32.5″ (826 mm)
X-Axis: 9.4″ (239 mm)
Z-Axis: 32.5″ (826 mm)
Rapids on X/Z: 945 ipm (24.0 m/min)
Max Thrust X: 4100 lbf
Max Thrust Z: 5100 lbf
Spindle Nose: A2-8
Max Rating: 40.0 hp
Max Speed: 3200 rpm
Max Torque: 425.0 ft-lbf @ 325 rpm
Spindle Bore Diameter: 4.62″
Max Rating: 40.0 hp 29.8 kW

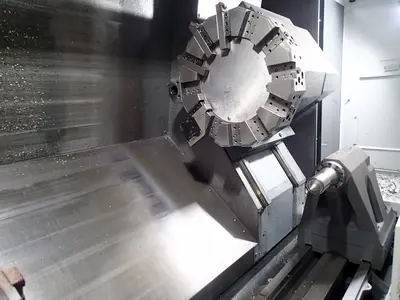

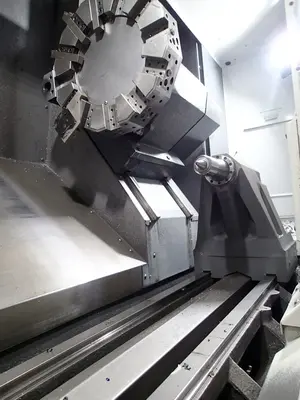

Tool Turret: 12 Station
Boring Bar Rear Clearance: 4.00″ (102.0 mm)
Approx. Dimensions: 171″ x 90″ x 92″ (435 cm x 229 cm x 234 cm)
Machine Weight: 14,300 lb (6487 kg)

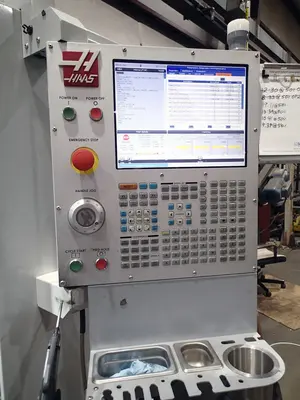

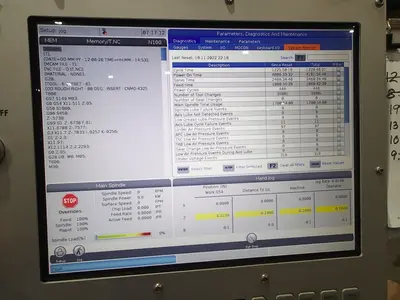

Haas CNC Control with Touch Screen
Ethernet Interface & Wi-Fi Connection

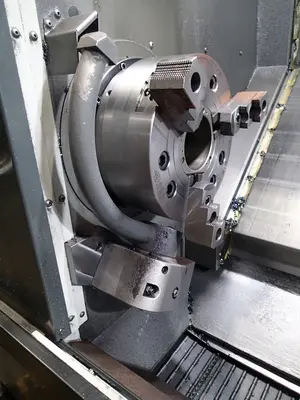

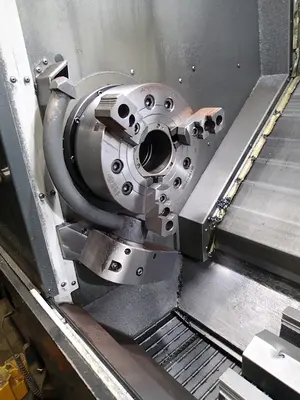

12″ Hydraulic Chuck, A2-8
Spindle Orientation
Rigid Tapping

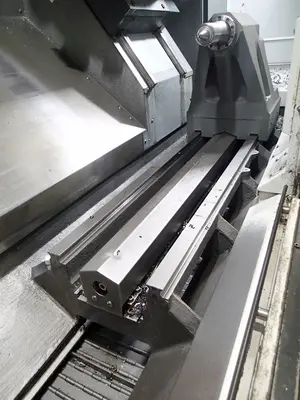

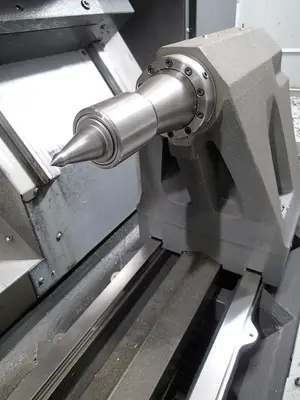

Programmable Hydraulic Tailstock
Automatic Tool Presetter

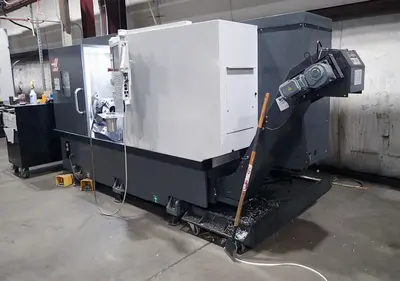

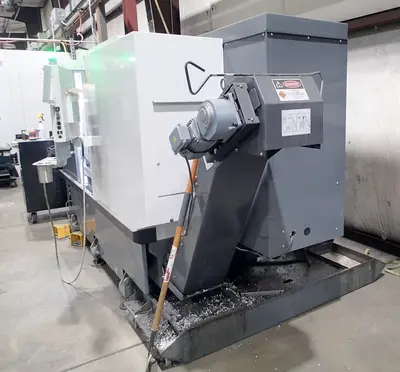

Chip Conveyor- Belt-Type
Chip Tray Filter Kit
Approx Power On Time: 4,086 Hours
Approx Feed Time: 1,068 Hours
Approx Main Spindle Total Usage: 1,709 Hours
