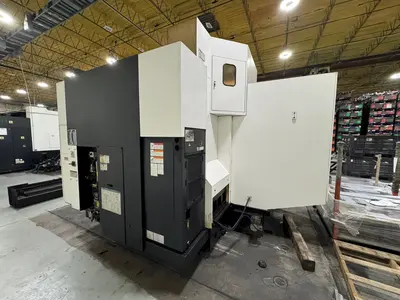

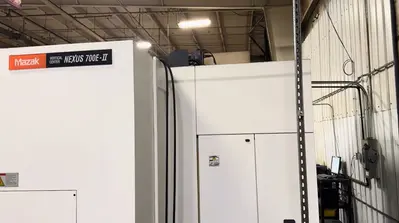

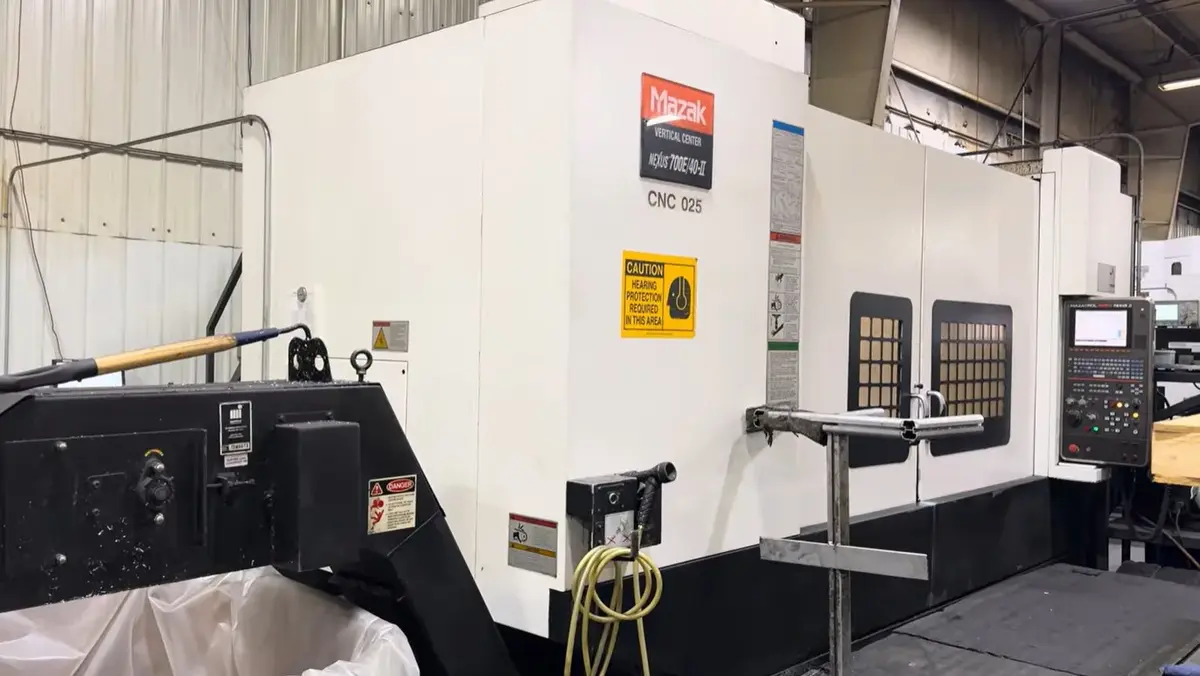

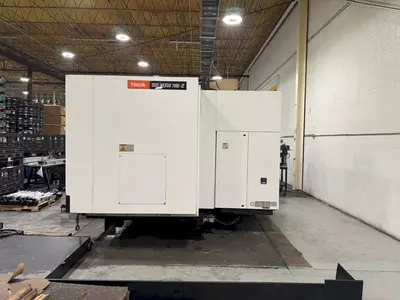

2013 MAZAK NEXUS VCN 700E/40-II / 4TH AXIS PREPPED
Have one to sell?
ConditionUsed
1 available
Used 2013 MAZAK NEXUS VCN 700E/40-II with 4th axis. Features: 80"x27.5" table, CAT 40 taper, 12,000 RPM, 30 HP spindle, 48-tool changer. Includes chip conveyor, rigid tapping, and Mazak software.
Table Size: 80" x 27.5"
X-Axis Travel: 80"
Y-Axis Travel: 27.5"
Z-Axis Travel: 25.6"
Max Table Load: 5,511 lbs.
Spindle Motor: 30 HP
Max Spindle Speed: 12,000 RPM

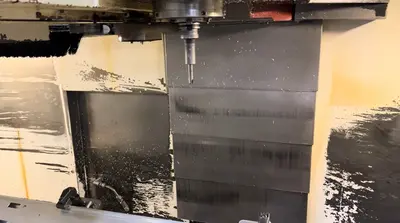

Spindle Taper: CAT40
Tool Changer: 48 Station Automatic
Tool Change Time: 1.3 seconds
Rapid Traverse X/Y: 1182 IPM
Rapid Traverse Z: 790 IPM
Machine Dimensions: 198" x 139" x 143"
Machine Weight: 31,500 lbs.

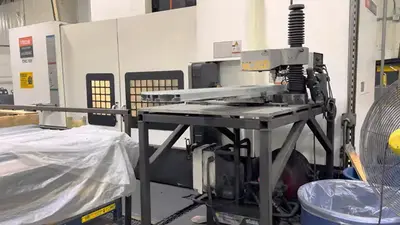

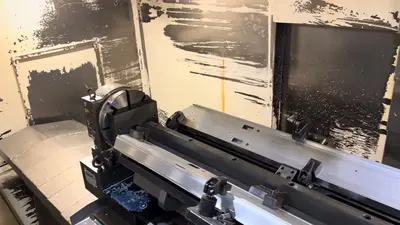

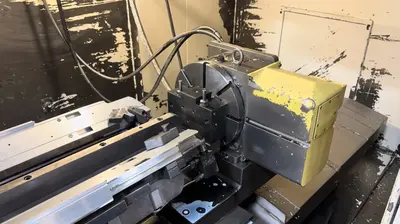

4th Axis Interface
48 Position Side Mounted Tool Changer

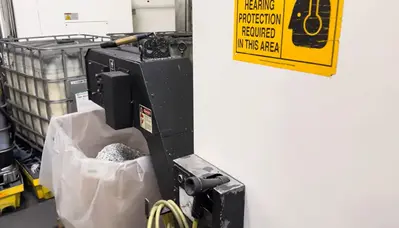

Chip Conveyor
Remote Jog Handle
EIA/ISO Input Function
Rigid Tapping

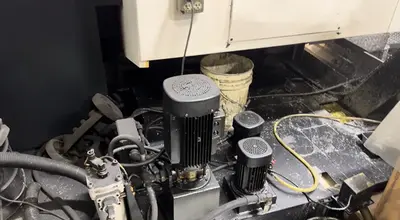

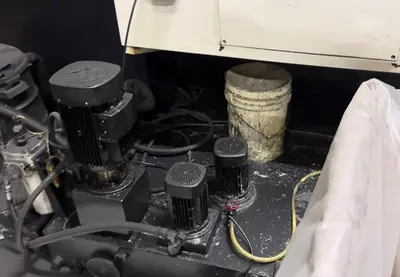

Flood Coolant
PCMCIA 2 Slots
RS 232 Port Interface
Mazak 2D Software

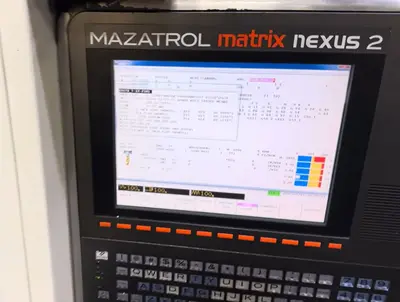

12.1" Color LCD Monitor
Multi Tap Transformer - Currently Wired 208V
Used 2013 MAZAK NEXUS VCN 700E/40-II with 4th axis. Features: 80"x27.5" table, CAT 40 taper, 12,000 RPM, 30 HP spindle, 48-tool changer. Includes chip conveyor, rigid tapping, and Mazak software.
Imperial
| X | 80" |
| Y | 27.5" |
| Z | 25.6" |
| Power | 30 hp |
| RPM | 12,000 RPM |
| Taper | CAT 40 |
| Table-W | 27.5" |
| Table-L | 80" |
| # Axis | 4 |
| Control | CNC (Mazak Matrix Nexus 2) |
| Weight | 31,500 |
Table Size: 80" x 27.5"
X-Axis Travel: 80"
Y-Axis Travel: 27.5"
Z-Axis Travel: 25.6"
Max Table Load: 5,511 lbs.
Spindle Motor: 30 HP
Max Spindle Speed: 12,000 RPM
Spindle Taper: CAT40
Tool Changer: 48 Station Automatic
Tool Change Time: 1.3 seconds
Rapid Traverse X/Y: 1182 IPM
Rapid Traverse Z: 790 IPM
Machine Dimensions: 198" x 139" x 143"
Machine Weight: 31,500 lbs.
4th Axis Interface
48 Position Side Mounted Tool Changer
Chip Conveyor
Remote Jog Handle
EIA/ISO Input Function
Rigid Tapping
Flood Coolant
PCMCIA 2 Slots
RS 232 Port Interface
Mazak 2D Software
12.1" Color LCD Monitor
Multi Tap Transformer - Currently Wired 208V
